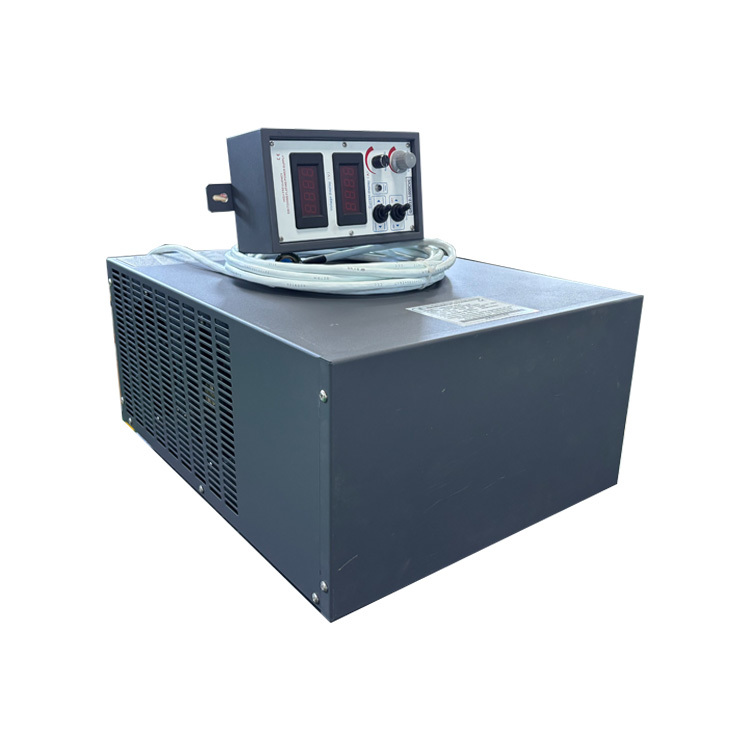

12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
Specifications
Model Number :
GKD12-1000CVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Place of Origin :
China
Packaging Details :
strong plywood standard exporting package
MOQ :
1pcs
Delivery Time :
5-30 working days
Price :
850-1250$/unit
Certification :
CE ISO9001
Supply Ability :
200 Set/Sets per Month
Brand Name :
Xingtongli
Description

12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line and Surface Treatment

Built for demanding electrochemical production environments, this 12V 1000A electroplating rectifier provides a powerful and stable DC output solution for applications such as metal plating, anodizing, and industrial surface finishing. With 220V three-phase AC input, it offers strong load capacity and reliable performance for continuous operation. The rectifier features precise voltage and current adjustment, efficient power conversion, and comprehensive protection functions to ensure safe and consistent plating results. Customized options are available, including output specifications, cooling type, control system, and communication interfaces.

Technical Specifications
  • Input Power: three-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-1000A continuously adjustable
    • Power: Max 12KW (12V *1000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.

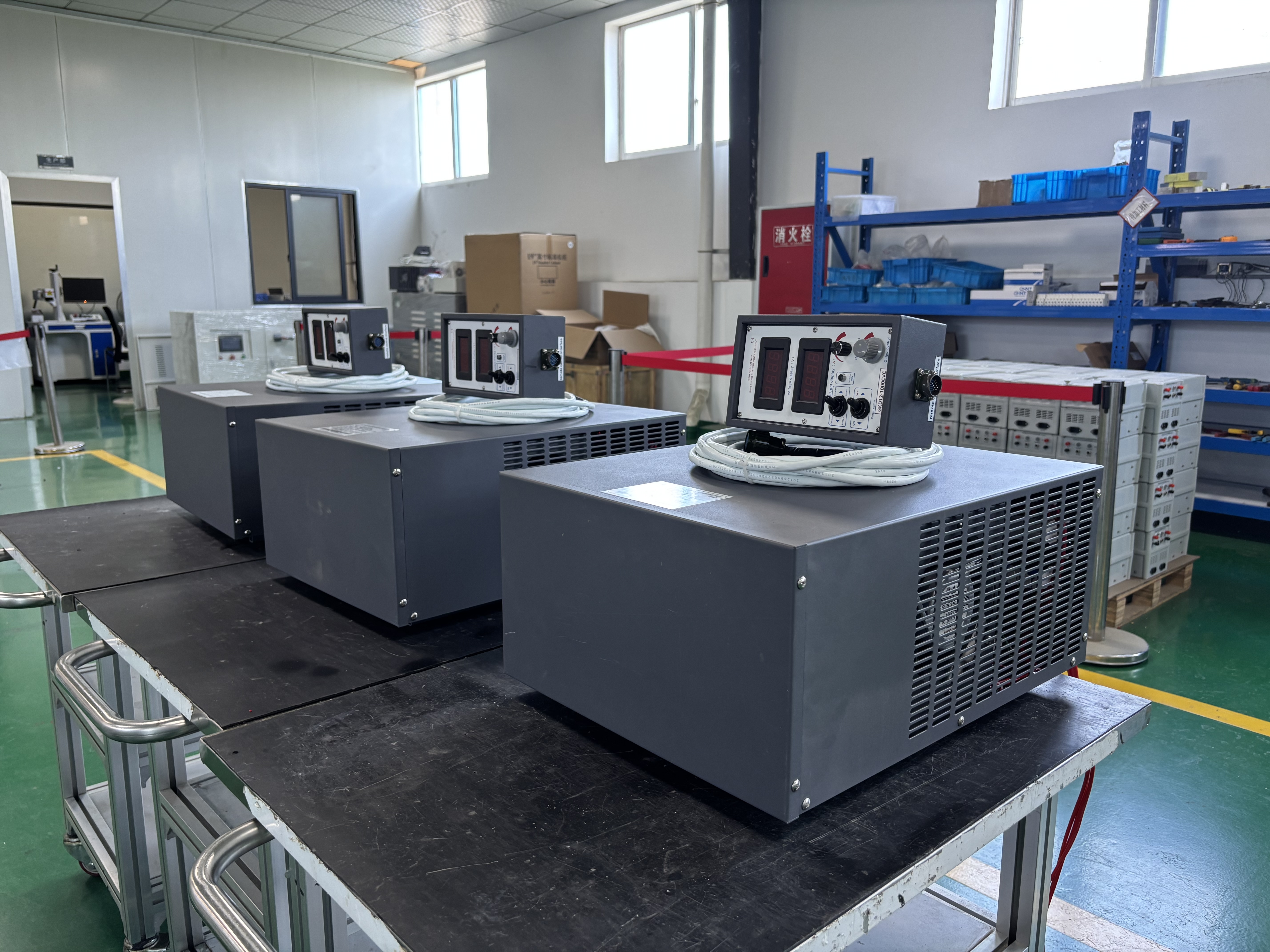

  • 12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line

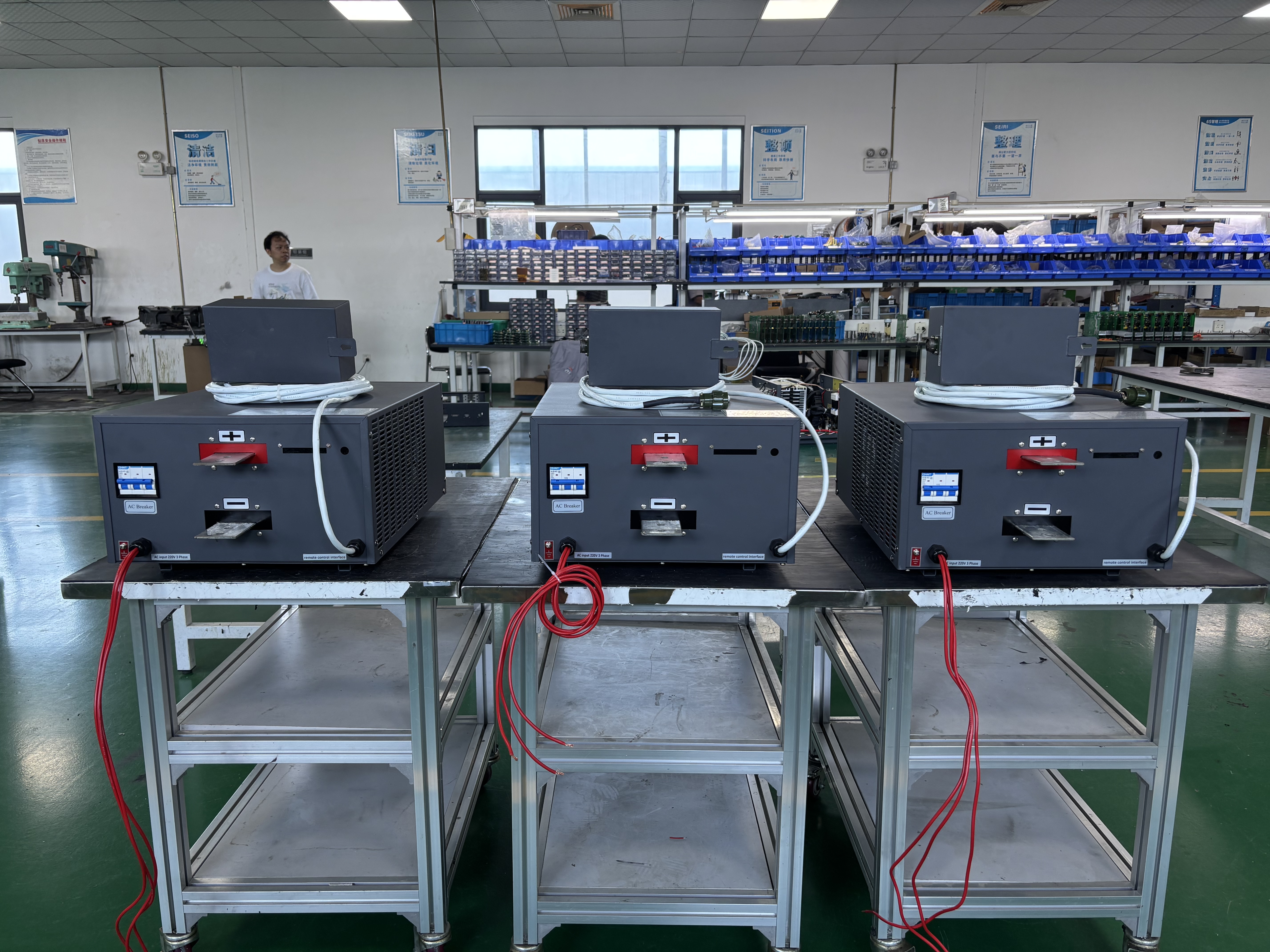

  • 12V 1000A Electroplating Rectifier 220V Three Phase Input High Current DC Power Supply for Plating Line
