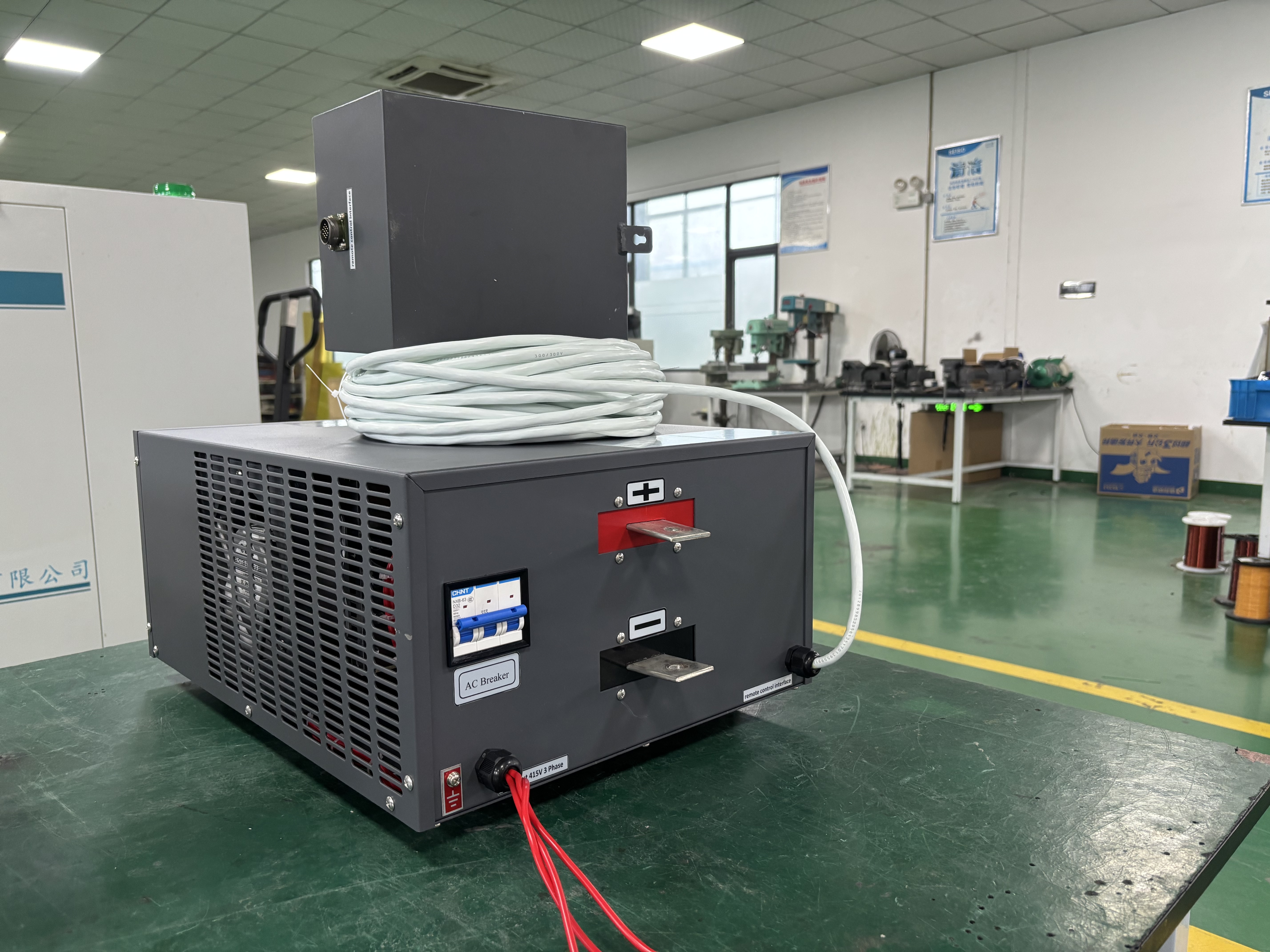

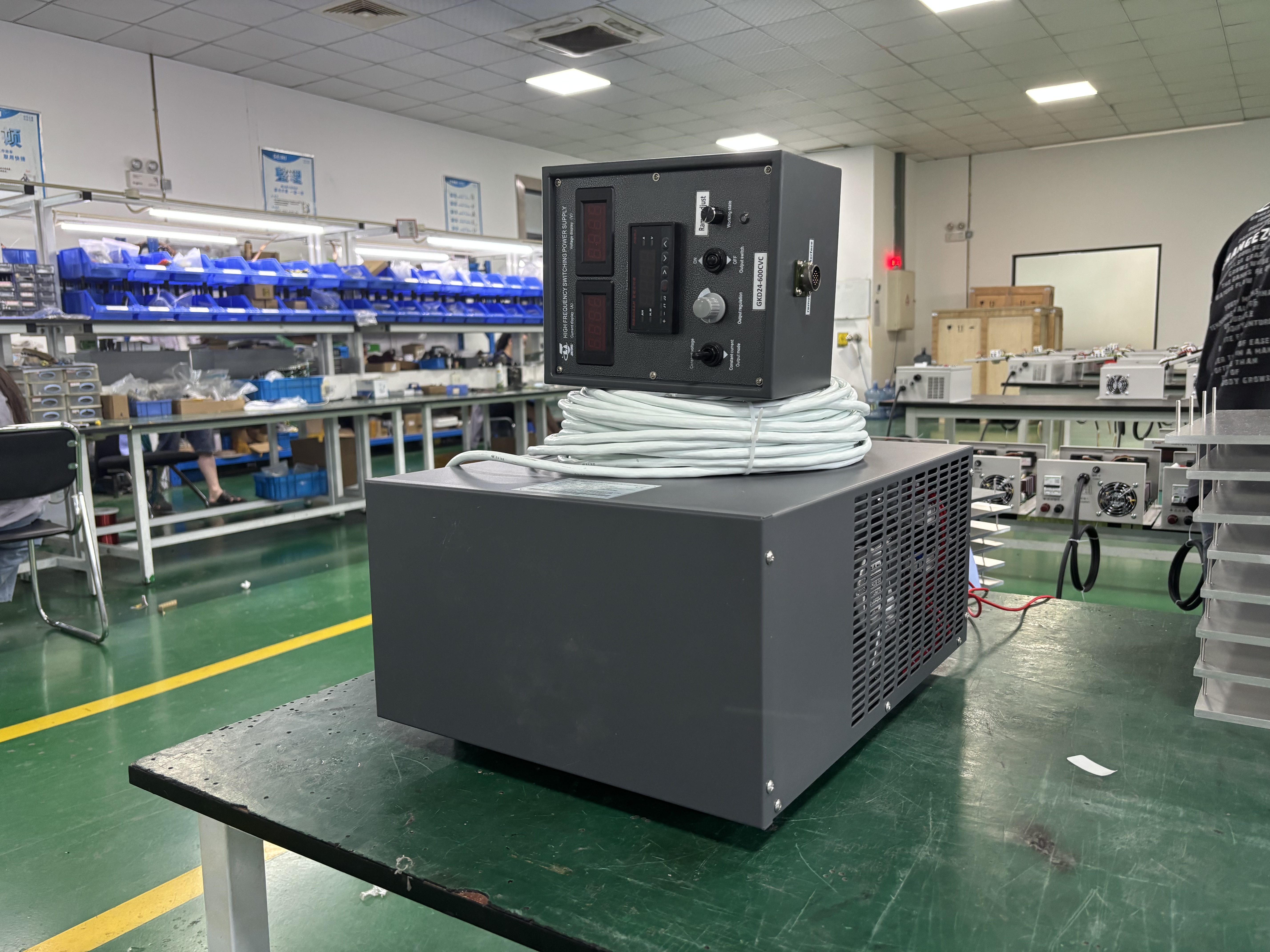

24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply
Specifications
Model Number :
GKD24-600CVC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Place of Origin :
China
Packaging Details :
strong plywood standard exporting package
MOQ :
1pcs
Delivery Time :
5-30 working days
Certification :
CE ISO9001
Price :
1200-1400$/unit
Supply Ability :
200 Set/Sets per Month
Brand Name :
Xingtongli
Description

24V 600A Electroplating Rectifier Power Supply with Ampere Hour Meter 415V 3 Phase Input Customized High Current DC Power Supply

This 24V 600A electroplating rectifier is designed for industrial electroplating, anodizing, and surface treatment applications. Equipped with an ampere hour meter (Ah meter), it can accurately monitor and record the total output capacity during the plating process, helping improve process control and product consistency. The unit supports 415V three-phase AC input and provides stable DC output with high efficiency and reliable performance. Output voltage/current, cooling method, control mode, and other specifications can be customized according to customer requirements. Built with advanced IGBT technology, it offers low ripple, precise regulation, and comprehensive protection functions for long-term operation.

Technical Specifications
  • Input Power: three-phase 415V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-24V continuously adjustable
    • Current: DC 0-600A continuously adjustable
    • Power: Max 14.4KW (24V *600A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
