Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Specifications
Certification :
ISO9001, CE, CCC, RoHS, VDE
MOQ :
5,000
Price :
5.5
Model NO. :
AMPSEAL Series
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
XLPE
Material Shape :
Flat Wire
Specification :
40*30*23
Cable Range :
0.35 - 5.0 (mm2)
Current Range :
17 amps(gold), 8 amps(tin)
Temperature Range :
-40 - 125(°C)
Durability :
10 cycles at 600 cycles per hour
Insulation Resistance :
100 megohms
Immersion Test :
50 micro-amperes at 48 volts DC
Random Vibration :
10 Gs for 8 hours each plane
Height :
1.32 (33.6)
Width :
1.36 (34.6)
Description
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector

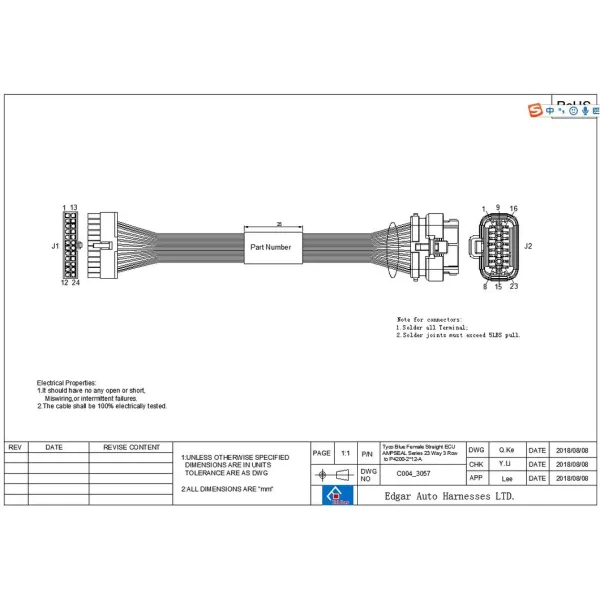

Tyco Ampseal Series to Molex Mini-Fit 4.2 Pitch ECU Wiring Harness
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Tyco Ampseal 16 Series
AMPSEAL connectors provide rugged reliability and environmental sealing. They are available in cable plugs and PCB mount headers that are designed to stand up to high-temperature underhood applications. The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial seal that protects mated connectors.
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Ampseal 16 Series Dimensions
Position Length Height Width Length Straight Height
8 1.32 (33.6) 1.36 (34.6) 1.08 (27.4) 1.35 (34.3) 1.26 (32.1) 1.61 (40.8)
14 1.32 (33.6) 1.36 (34.6) 1.39 (35.4) 1.35 (34.3) 1.49 (37.9)
23 1.32 (33.6) 1.36 (34.6) 1.87 (47.4) 1.35 (34.25) 1.26 (32.1)
35 1.32 (33.6) 1.36 (34.6) 2.50 (63.4) 1.35 (34.25) 1.26 (32.1)
Tyco Ampseal to Molex Mini-Fit ECU Wiring Harness Connector
Ampseal 16 Series Part Numbers
Position Color Contact Finish Receptacle Housing Without Seal With Seal Without Seal With Seal
8 Black Tin plated 776286-1 776279-1 776280-1 776275-1 776276-1
Gold plated 1-776286-1 1-776279-1 1-776280-1 1-776275-1 1-776276-1
Natural Tin plated 776286-2 776279-2 776280-2 776275-2 776276-2
Gold plated 1-776286-2 1-776279-2 1-776280-2 1-776275-2 1-776276-2
Ampseal 16 Series Performance Specifications
Cable Range 0.35 - 5.0 (mm²)
Current Range 17 amps (gold), 8 amps (tin)
Temperature Range -40 - 125 (°C)
Durability Mate and unmate specimens for 10 cycles at maximum rate of 600 cycles per hour
Insulation Resistance 100 megohms
Immersion Leakage current not to exceed 50 micro-amperes at 48 volts DC. Immerse specimens to a depth of 100 mm in 5% salt water at a temperature of 23 ± 5° C for 1 hour.
Random Vibration Condition G, except 10-500 Hz frequency range. Subject mated specimens to 10 Gs for 8 hours each plane.
