High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
Specifications
MOQ :
5,000
Price :
100
Voltage :
DC 300V
Contact resistance :
3.0 ohm MAX
Working temperature :
-20~80°C
Pitch :
4mm
Vehicle voltage :
12V for car, 24V for heavy vehicle
Connector type :
J1939 Male to OBD II SAE J1962 Female
Material :
PA66, tined plated compliant ROHS
Operating temperature :
-40ºC to +125ºC
Vibration resistance :
20 G's at 10 to 2000Hz
Waterproof rating :
IP68
Immersion resistance :
1.2 meter of water for 24 hours
Connector pitch :
4mm
Pin count :
16-pin
Battery power :
12V/4A (Type A), 24V/2A (Type B)
CAN speed :
500 kbit/s
Description
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles

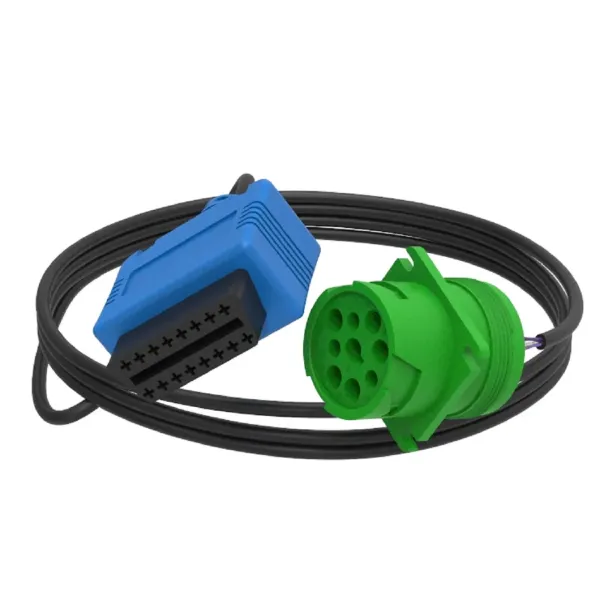

TE connectivity Gray J1939 Male to OBD II SAE J1962 Female automotive diagnostic cable assembly
Key Specifications:
• Voltage: DC 300V 5m ohm/10 ms
• Contact Resistance: 3.0 ohm MAX
• 100% Open, Short, Mis-Wire Testing
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
SAE Standards Documentation
  • J1708 - Defines serial communications between ECUs on heavy duty vehicles
  • J1850 - Defines serial data protocol with VPW/PWM variants
  • J1939 - Data protocol for heavy duty commercial vehicles
  • J1962 - Physical connector for OBD-II interface
  • J1978 - Minimal operating standards for OBD-II scan tools
  • J1979 - Standards for diagnostic test modes
  • J2012 - Standards for trouble codes and definitions
  • J2178-1 - Network message header formats and physical address assignments
  • J2178-2 - Data parameter definitions
  • J2178-3 - Network message frame IDs for single byte headers
  • J2178-4 - Network messages with three byte headers
  • J2284-3 - 500 kbit/s CAN Physical and Data link layer
  • J2411 - GMLAN protocol for newer GM vehicles
J1962 Connector Specifications
The SAE J1962 specification provides two standardized hardware interfaces (Type A and Type B) with 16-pin D-shaped connectors. Type A is for 12V vehicles, Type B for 24V vehicles with blue marking.
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
Pin Number Description
1Manufacturer Discretionary
2SAE J1850 Bus + (VPW / PWM)
3Manufacturer Discretionary
4Chassis Ground
5Signal Ground
6CAN High (ISO 15765-4 and SAE J2284)
7ISO 9141-2 / ISO 14230-4 K Line
8Manufacturer Discretionary
9Manufacturer Discretionary
10SAE J1850 Bus - (PWM-only)
11Manufacturer Discretionary
12Manufacturer Discretionary
13Manufacturer Discretionary
14CAN Low (ISO 15765-4 and SAE J2284)
15ISO 9141-2 / ISO 14230-4 L Line (Optional)
16Vehicle Battery Power: Type A 12V/4A, Type B 24V/2A
Material & Technical Specifications:
• Material: PA66, tined plated compliant ROHS
• Working Temperature: -20°C to 80°C
• Over-molding: Customized
• Pitch: 4mm
• Voltage: 12V for cars, 24V for heavy vehicles
DEUTSCH HD10 Series Connector
Environmentally sealed thermoplastic cylindrical connector designed for heavy-duty applications in trucks, buses, cross-country vehicles, cranes, and forklifts. Provides protection against water, dust, oils, fuel, road salt, and other contaminants.
  • Operating Temperature: -40°C to +125°C
  • No cracking, chipping or leaking after 20 test cycles
  • Withstands 20 G's vibration at 10-2000Hz for 2 hours
  • IP68 rating - waterproof up to 1.2 meters for 24 hours
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles

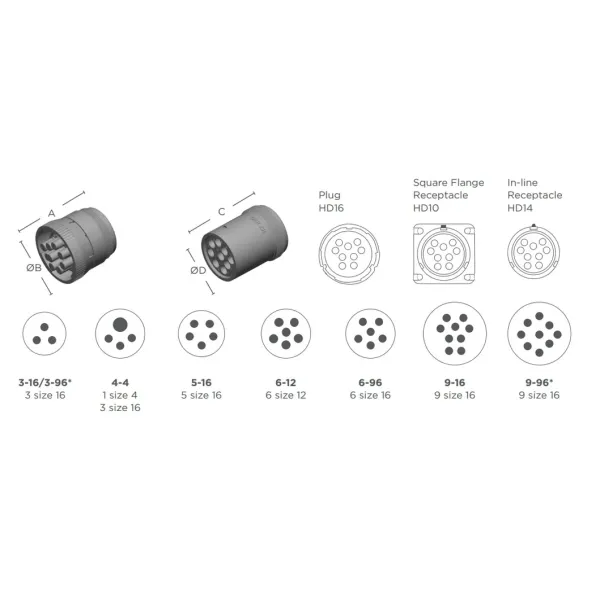

Cavity Overall Length A Overall Height ØB Overall Length C Overall Height ØD
31.609 (40.87)1.069 (27.15)1.639 (41.63)0.851 (21.62)
41.639 (41.63)1.595 (40.51)1.639 (41.63)1.281 (32.54)
51.609 (40.87)1.218 (30.94)1.639 (41.63)1.001 (25.43)
61.619 (41.12)1.453 (36.91)1.639 (41.63)1.141 (28.98)
91.609 (40.87)1.593 (40.47)1.639 (41.63)1.281 (32.54)
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
Position Contact Size Rear Threads Plug Receptacle Inline Receptacle Flange
316noHD16-3-16SHD14-3-16P-
316yesHD16-3-96SHD14-3-96PHD10-3-96P
44/16yesHD16-4-4S-HD10-4-4P
516noHD16-5-16SHD14-5-16PHD10-5-16P
616yesHD16-6-96SHD14-6-96PHD10-6-96P
612yesHD16-6-12S-B010HD14-6-12PHD10-6-12P
916noHD16-9-16SHD14-9-16PHD10-9-16P
916yesHD16-9-96SHD14-9-96PHD10-9-96P
9 (J1939)16yesHD16-9-1939SHD14-9-1939PHD10-9-1939P
Company Profile
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
  • Privately held company, established in 1999
  • Sales volume over 16 Million USD since 2017
  • OEM & ODM company with 250+ employees
  • 7,260 square-meter facility
  • Specialized in economical solutions and innovative wire harness design & manufacturing
  • IATF16949 (2016) & ISO 9001 (2015) certified
  • UL certified supplier with wiring No. E468011 & cable No. E479323
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
Certifications
High-Performance J1939 to OBD II Diagnostic Cable for Vehicles
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When will you start to help design?
A: We provide initial solution sketches for discussion. After quotation and order placement, we proceed with detailed design drawings and client confirmation.
Q: What if quality issues occur?
A: Our quality and engineering team responds to quality issues within 72 hours. We are committed to long-term partnerships and providing excellent service.
Q: Do you have standard products to reduce lead time and tooling costs?
A: Yes, we maintain over 1000 sets of molds, many of which can be used directly for customer projects. With over 20 years of specialization, we offer 5000+ wire harness products.
