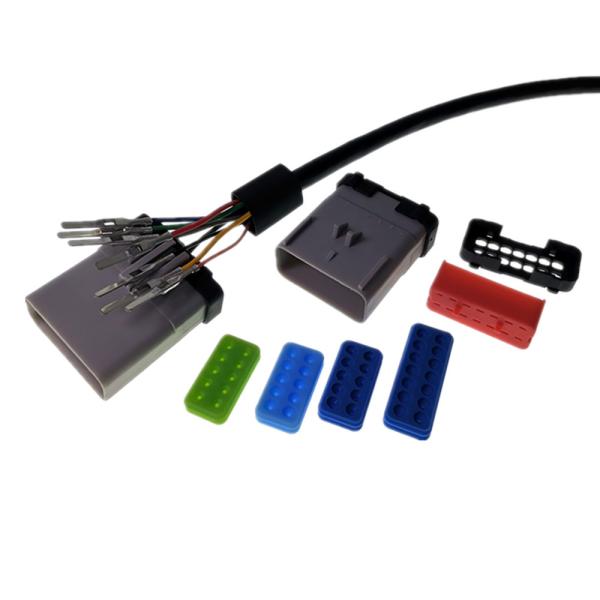

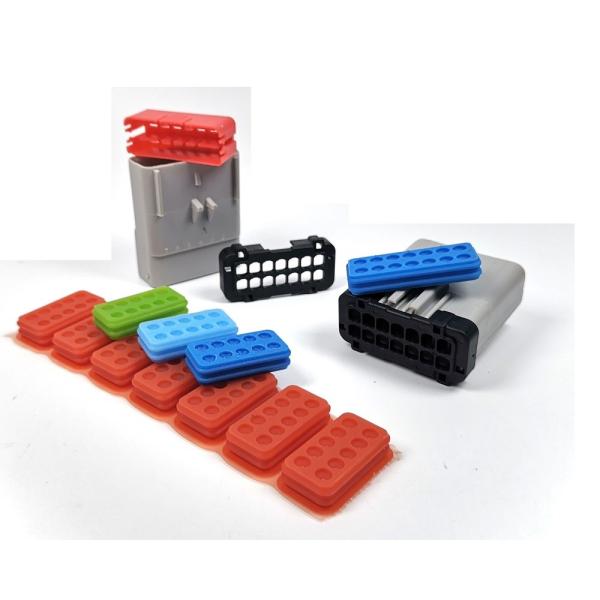

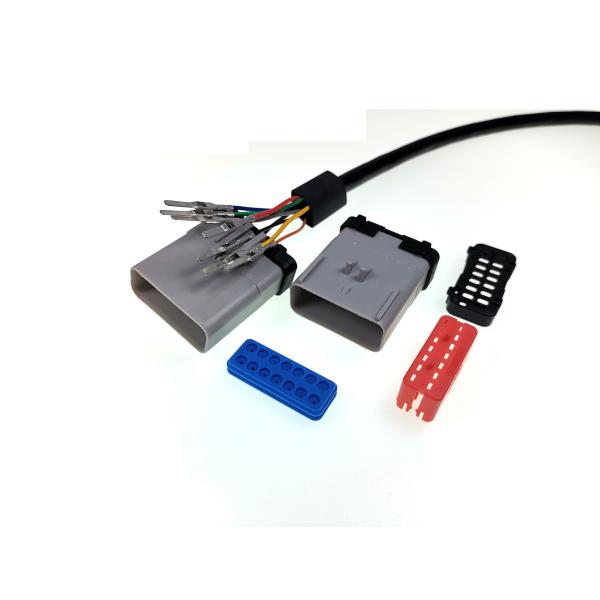

FCI Apex 2.8mm Instrument panel and cockpit connectors cable assemblies electrical wire harness for Customoizd

PRODUCT DETAILS

• custom cable assemblies
• electrical wire harness for Customoizd
• Instrument panel and cockpit connectors Coupling connectors
• Apex 2/3/4/6/10/14 way coupling housings for 2.8 mm terminals• 2-3-4-6-10 and 14 position housings
• available• Single row 5.25 mm pitch for2-3-4 position housings
• Double row 5.25 x 6.40 mm pitchfor 6-10 and 14 position housings
• Terminal position assurance (T.P.A.)
• Connector position assurance(C.P.A.)
• Fixing clip available• Mechanical polarization

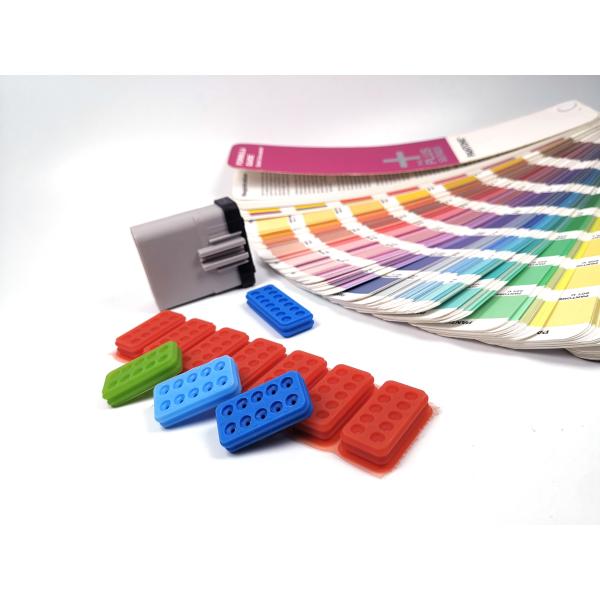

• Several colour codings availableFeatures4
• 50 Performance characteristics•
• Temperature range:from -40°C to +125°C
• Contact retention force: > 90 N
• Contact insertion force: < 15 N
• Connector mating force: < 90 NConstruction
• Housing material: PAConnector compatibility
• Usable terminals:- Apex 2.8 mm female terminals- Apex 2.8 mm male terminals
• Part Numbers No. of position Terminal size Type Colour
• 54200200 2 2.8 mm Female housing Black
• 54200201 2 2.8 mm Female housing Light grey
• 54200202 2 2.8 mm Female housing Dark grey
• 54200203 2 2.8 mm Female housing Natural
• 54200204 2 2.8 mm Male housing Black
• 54200205 2 2.8 mm Male housing Light grey
• 54200300 3 2.8 mm Female housing Black
• 54200301 3 2.8 mm Female housing Light grey
• 54200302 3 2.8 mm Female housing Dark grey
• 54200303 3 2.8 mm Female housing Natural
• 54200304 3 2.8 mm Male housing Black
• 54200305 3 2.8 mm Male housing Light grey
• 54200306 3 2.8 mm Male housing Dark grey
• 54200307 3 2.8 mm Male housing Natural
• 54200400 4 2.8 mm Female housing Black
• 54200402 4 2.8 mm Female housing Light grey
• 54200403 4 2.8 mm Female housing Dark grey
• 54200404 4 2.8 mm Female housing Natural
• 54200405 4 2.8 mm Male housing Black
• 54200406 4 2.8 mm Male housing Light grey
• 54200407 4 2.8 mm Male housing Dark Grey
• 54200408 4 2.8 mm Male housing Natural
• 54200600 6 2.8 mm Female housing Black
• 54200601 6 2.8 mm Female housing Light grey
• 54200602 6 2.8 mm Female housing Dark grey
• 54200603 6 2.8 mm Female housing Natural
• 54200604 6 2.8 mm Male housing Black
• 54200605 6 2.8 mm Male housing Light grey
• 54200606 6 2.8 mm Male housing Dark grey
• 54200607 6 2.8 mm Male housing Natural
• 54201000 10 2.8 mm Female housing Black
• 54201001 10 2.8 mm Female housing Light grey
• 54201002 10 2.8 mm Female housing Light green
• 54201003 10 2.8 mm Female housing Dark green
• 54201004 10 2.8 mm Female housing Orange
• 54201005 10 2.8 mm Female housing Aqua
• 54201006 10 2.8 mm Male housing Black
• 54201007 10 2.8 mm Male housing Light grey
• 54201008 10 2.8 mm Male housing Light green
• 54201400 14 2.8 mm Female housing Black
• 54201401 14 2.8 mm Female housing Light grey
• 54201402 14 2.8 mm Female housing Dark grey
• 54201403 14 2.8 mm Female housing Natural
• 54201404 14 2.8 mm Male housing Black
• 54201405 14 2.8 mm Male housing Light grey
•
