CE Dual Thermal Token Printer Hospital Token Display System
CE Dual Thermal Token Printer Hospital Token Display System
CE Dual Thermal Token Printer Hospital Token Display System
CE Dual Thermal Token Printer Hospital Token Display System
CE Dual Thermal Token Printer Hospital Token Display System
CE Dual Thermal Token Printer Hospital Token Display System
Specifications
Brand Name :
ShangXu
Model Number :
SX-QMS017
Certification :
CE certificate
Place of Origin :
Guangzhou
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
7 work days
Packaging Details :
Standard Export Packing Cartons with Foam and other protection material
Name :
queue management system
Language :
English/Arabic/French/Russian.etc multiple language supported
Function :
Queue management,Smart Queuing Tickets printer
Material :
Cold Rolled Steel
Warranty :
1 free year
Printer :
80mm Thermal Printer
Usage :
QUEUE MANAGEMENT
Touch screen :
IR Touch panel
Os :
Windows
Power supply :
110-240V 50HZ/60HZ
Type :
wired / wireless
Description

Hospital Token Number Queuing Management System with Dual Thermal Token Printer


SHANGXU Hospital Queue Management System


Delighted customers, empowered employees and informed management all translate into increased sales and cost efficiency for any business. Helps Customers:  Reduces waiting time  It offers freedom to move about in lobby, read advertising brochures or simply take a seat while waiting for your turn.  Ensures fair service  Improves service quality and hence enhances customer experience Solution that manages customer flow from initial contact to final service delivery with systematic approach towards customers, reducing waiting time, improves customer satisfaction and staff efficiency and increases productivity. It is extremely useful in places such as banks, hospitals, railways, service centres, embassies, airports, immigration centres, private medical practitioners, etc. where people have to wait in line to get a service.

ORGANIZED CUSTOM WAITING AREA

ENHANCED CUSTOMER EXPERIENCE

PC-CONTROLLER BASED QMS SYSTEM

MULTIPLE LANGUAGE SUPPORTED

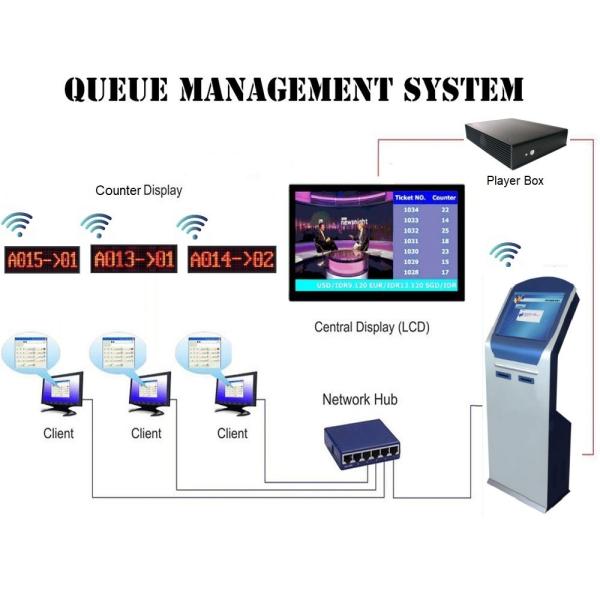

Components contained in Queue Management System

a. Touch Screen Ticket Kiosk with Dual Printer

Multimedia Display:

  • True multi-lingual pages
  • Handles over up to 15 categories

Specifications:

  • 17' IR Touch Screen LCD Display
  • Multi-Lingual ticket printing
  • 80mm Dual Thermal Printer, with Auto cutter
  • Computer control system
  • LAN / Network cable (for media player to Monitor display)
  • Support 1-14 services (categories)
  • Wire or Wireless solution availbale
  • All in one kiosk, controllers etc.
  • Multi – Language
  • Size: 38(L)*45(W)*128 (D)cm
  • Amplifier Built-in speakers (Kiosk) for announcement

b.Virtual Terminal Call Pad

Install on cashier’s desk
LCD can display the queue number and number of waiting person.
RECALL (RAPPEL) key: recall the recent queue number
PAUSE key: service pause, pause will be displayed
SET key: to set the call pad
VALIDER key: conform the input
TRANSFER key: Transfer the queue number to another counter or service.

c.Counter LED Display

F3.75 or F5.0 to display the counter queue number

8 Digits RED Color LED Counter Display

4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number

The display format can be customized

110V-240 V Power Supply

Wired or Wireless available

High brightness, can be seem as far as 80m

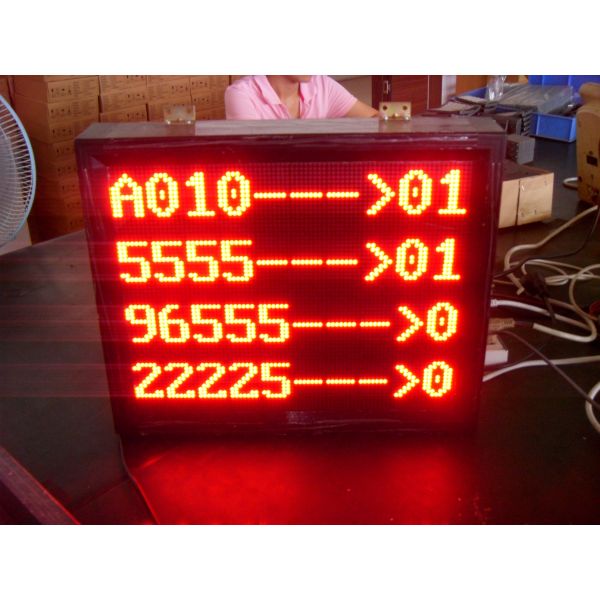

d.Main LED Display


F3.75 or F5.0 to display the centralized queue number

4 Lines * 8 Digits RED Color LED Counter Display

4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number

The display format can be customized

High brightness, can be seem as far as 80m

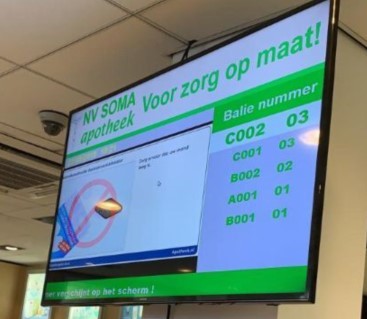

e.Multimedia Information Player box

* Compluter base inline
* Windows
* Control the LCD plasma
*Inbuilt Multimedia and Queue Number Software,can split the screen to many zones,one side can play the advertising video,another side can play the queue information,at the bottom side can display the running text. by using the player box, make the queue number showing on the LCD screen

Queue Management Software

Item Function
Control software Signal communication center
Management software Customaries set up the queue system
Ticket dispenser panel Take a queue number ticket
Reports of the queue system Give out enough useful reports
