Specifications
Brand Name :
Keysight
Model Number :
DAQ973A
Place of Origin :
Germany
MOQ :
1
Price :
US $700/ Set
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Delivery Time :
15
Description
Keysight DAQ973A Data Acquisition System
A high-performance 3-channel mainframe data acquisition system with USB, LAN and GPIB interfaces, designed for precision measurement and automated testing applications.
System Overview
Model Keysight DAQ973A Data Acquisition System
Configuration 3-slot mainframe with USB, LAN and GPIB interfaces
Software Included Built-in BenchVue software license (BV0006B)
Key Performance Features
  • 6.5-digit (22-bit) internal DMM scans up to 450 channels per second with solid-state multiplexer module
  • 800 kSa/s 24-bit sampling rate with DAQM909A 4-channel digitizer module
  • 9 plug-in switch and control modules available for customization
  • Built-in signal conditioning for thermocouples, RTDs, thermistors, DC/AC voltage and current, resistance, frequency/period, diode test and capacitance
  • Non-volatile memory stores 100,000 readings with data retention during power loss
  • High and low alarms on each channel plus 4 TTL alarm outputs
Advanced Measurement Capabilities
  • Ultra-low current measurement: 1 μA DC and 100 μA AC
  • High resistance measurement capability: 1000 MΩ
  • Auto-calibration function compensates for internal drift due to time and temperature changes
  • 3497XA compliance tests, procedures and configurations
  • Enhanced switching speed and measurement accuracy across all modules
Software Integration: Keysight BenchVue DAQ control and analysis application software provides intuitive user interface for test configuration, real-time data display, and analysis. Compatible with DAQ970A, DAQ973A, 34970A, 34972A, and 34980A systems.

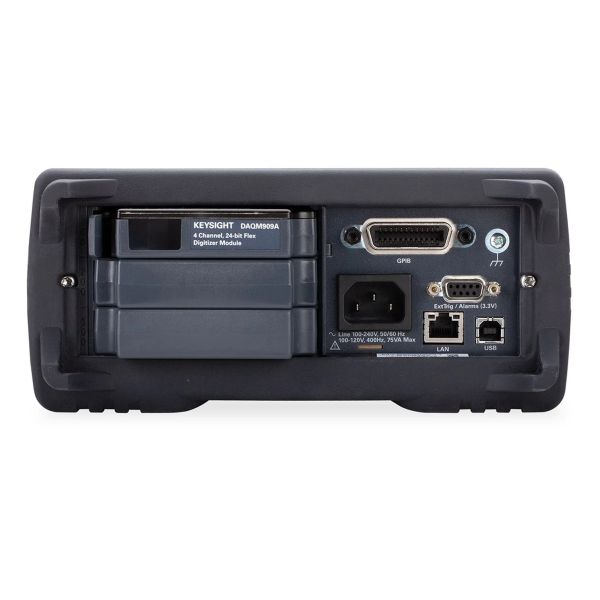

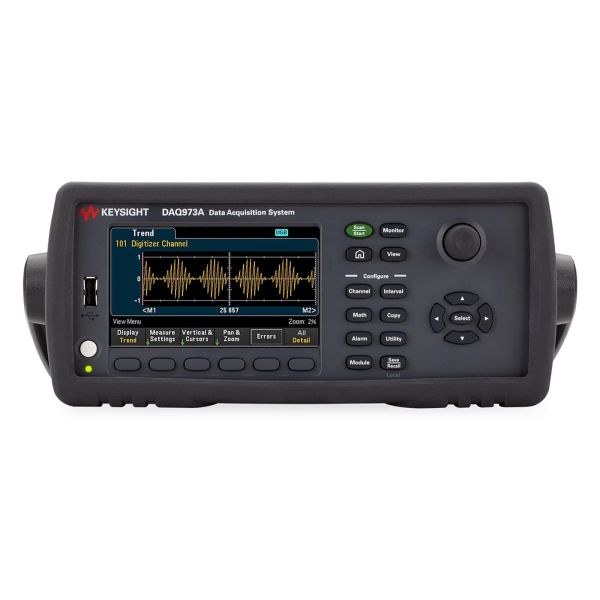

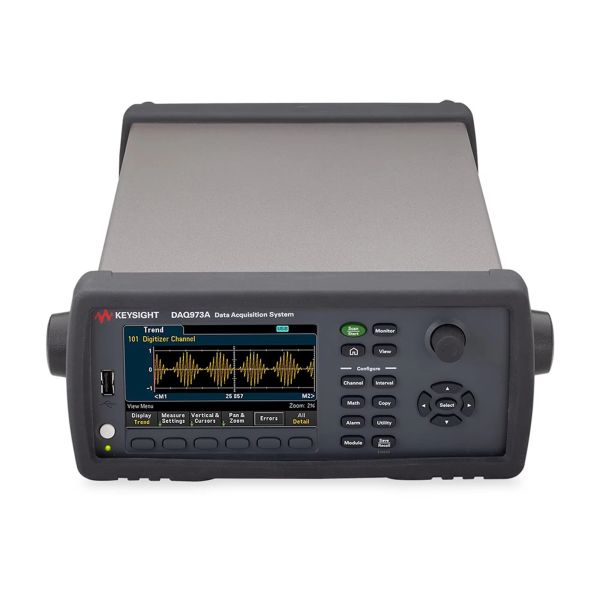

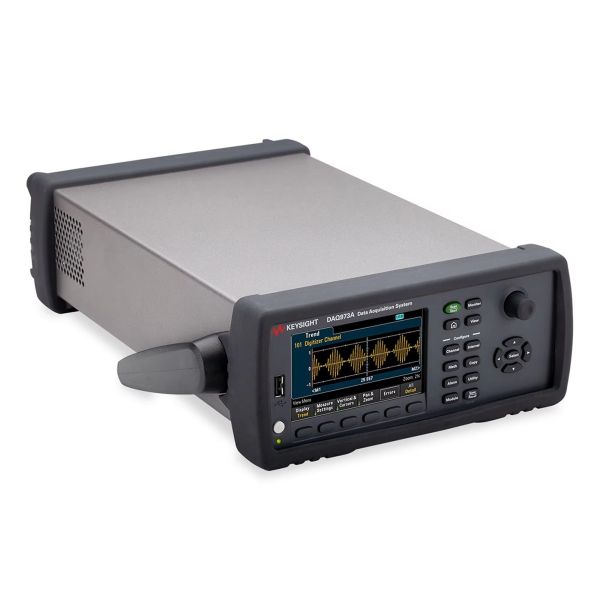

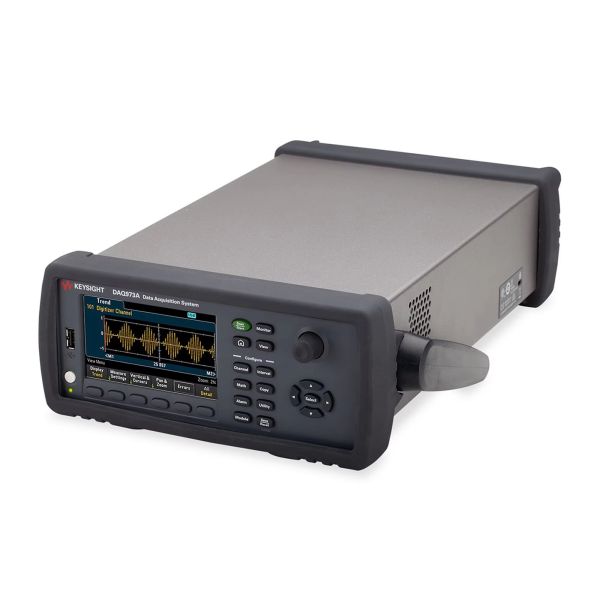

Product Images
