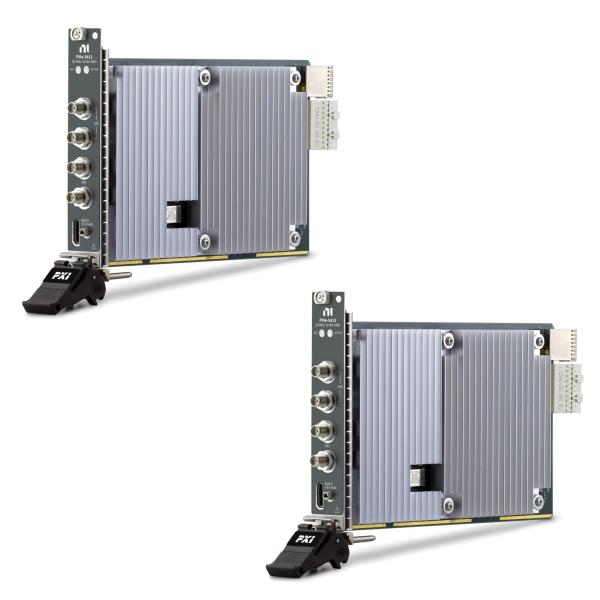

PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator
PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator
PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator
PXIe-5413 PXI Waveform Generator 20MHz Bandwidth 16 Bit Resolution Pxi Signal Generator
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXIe-5413
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXIe-5413
Description

国家仪器 PXIe-5413 PXI 波形发生器

使用PXIe-5413(部件编号:784181-01和785114-01)波形发生器,用户可以生成用户定义的任意波形.通过分数重采样方法,NI PXIe-5413可以使用数据序列或在PXI系统内的主机到 peer或 peer到 peer仪器之间进行连续流式传输来准确创建波形.这个波形发生器具有先进的同步选项,使其在半导体设备,消费电子产品,汽车和航空航天/国防的测试中非常理想.

NI PXIe 5413 支持高达 20 MHz 的频率.阶跃响应上升时间测量为 14.8 ns.该 PXI 波形发生器具有时钟,PFI I/O,触发和标记功能.任意波形大小为 2 个样本到 64,000,000 个样本.当启用和禁用数字滤波器时,用户的采样率分别为 5.6 µS/s 到 200 MS/s 和 3.125 MS/s 到 200 MS/s.NI PXIe-5413 的频率步长为 2.84 µHz,它有 8,192 个波形点.

PXIe 5413 PXI波形发生器的参考时钟频率为100 MHz(<±25 ppm),采样时钟频率为800 MHz.该型号的PFI输入/输出频率范围为0 MHz至25 MHz,最大输入电压为+5 V.NI PXIe-5413的运行冲击为30 g峰值,半正弦波,11毫秒脉冲.运行时的随机振动为5 Hz至500 Hz,0.3 grms.然而,不运行时的随机振动为5 Hz至500 Hz,2.4 grms.

支持任意波形:是
最大带宽:20 MHz
支持数字上变频:否
模拟输出电压范围:-12 V到12 V
模拟输出分辨率:16位
射频信号生成:否
最大更新率:800 MS/s
支持脚本:否
总线连接器:PXI Express

功能 PXIe,20 MHz带宽,1或2通道,16位PXI波形发生器
