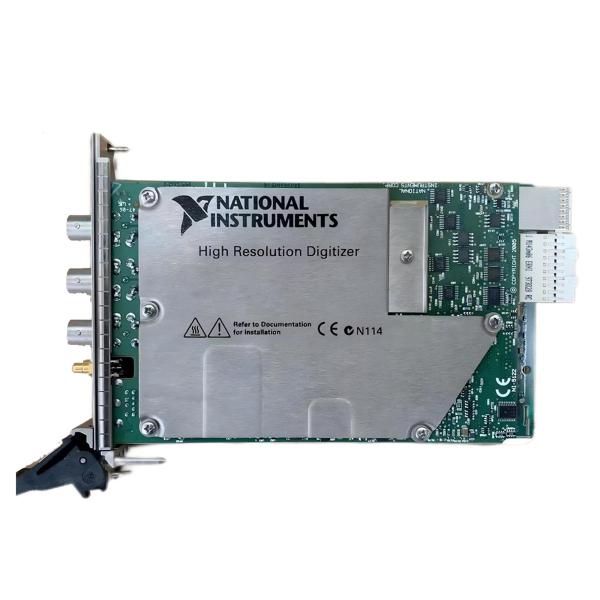

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXIe-5122
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXIe-5122
Description
National Instruments PXIe-5122 High-Speed Digitizer with Customized OEM Assistance
The National Instruments PXIe-5122 High-Speed Digitizer (Part Numbers: 779967-01, 779967-02, and 779967-03) features advanced SMC engineering with flexible memory options ranging from 8 to 512 MB per channel (4 to 256 million 14-bit samples per channel). Designed for demanding applications including RADAR, ultrasound, and event recognition, this digitizer captures over 1 million triggered waveforms without software intervention in multiple-record acquisition mode.
Key Features
  • 100-MHz, 100 Msamples/sec, 14-bit digitizer in PXI format
  • Two simultaneously sampled channels at 14-bit resolution
  • 100 Msamples/sec real-time and 2.0 Gsamples/sec random interleaved sampling
  • 100 MHz bandwidth with 50 ohm or 1 Mohm input impedance (software selectable)
  • Input range from 200mV to 20V with 75 dBc SFDR and 62 dB SINAD
  • Memory options: 8, 32, or 256 MB per channel
  • Advanced triggering options with 100 ps timestamping
  • Includes IVI-compliant NI-SCOPE driver software with 50+ built-in measurement functions
Technical Specifications
Bus Connector PXI Express
Analog Input Impedance 1 MΩ, 50 ohms
Maximum Bandwidth 100 MHz
Maximum Sampling Rate 100 MS/s
Analog Input Voltage Range -10 V to 10 V
Analog Input Resolution 14 bits
Number of Channels 2
Compatible Operating Systems Windows 2000/XP
Applications
Ideal for automotive testing, communications research, scientific measurement, military/avionics systems, and consumer electronics development. The NI PXIe-5122 is particularly suited for applications requiring high-speed data acquisition with precise timing.
Product Images
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
