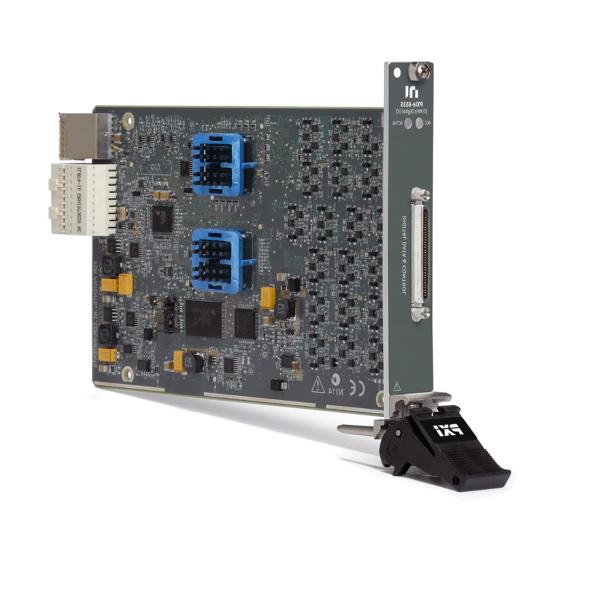

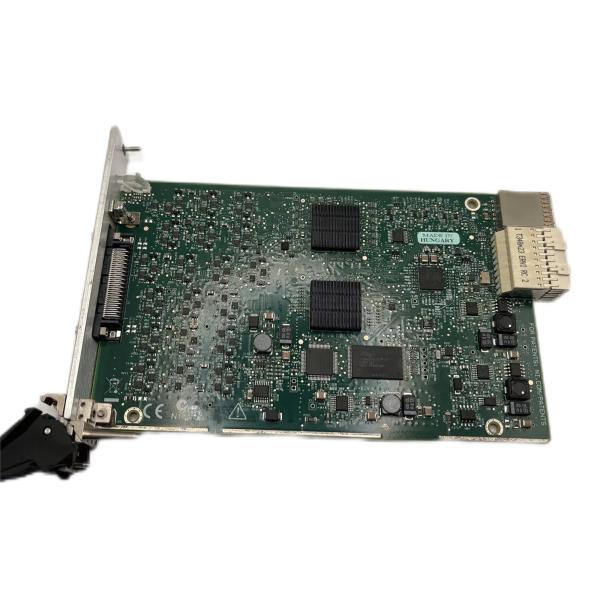

PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
PXIe-6535 Electronic Test Instruments 32 Channel 10MHz 40MB/S Digital Input Output Module
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXIe-6535
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXIe-6535
Description
名字 国家仪器 PXIe-6535 PXI 数字输入输出模块

国家仪器 PXIe-6535 PXI 数字输入输出模块

32通道10 MHz,40 MB/s PXIe 6535(部件编号:780695-01)是一个数字输入输出模块.NI PXIe-6535可以通过PXI Express总线不断传输信息.这个模块是与需要大量数字I/O通道的许多数字应用程序接口的完美方式,例如内存测试,握手,模式生成,高速功能数字测试等.这个PXI数字I/O模块提供每个计算机化线路通道可选择的电压级别和方向控制.

PXIe-6535的最大时钟频率为10 MHz.提供可选电压电平,包括2.5V,3.3V和5V TTL逻辑,并且有专门安排的引脚用于输入或输出.该设备的数字输入电压范围为-1 V到6 V,输出电压范围为0 V到5 V.通过同步和异步定时模式,握手以及围绕NI-DAQmx驱动程序设计的软件API,NI PXIe-6535模块具有满足半导体,消费类电子和通信应用需求的适应性.该设备可以使用诸如LabVIEW或LabWindows/CVI等软件包/应用开发环境(ADE)进行编程.

NI PXIe-6535 强调了增强设计,提供更高的信号完整性和阻抗匹配.这个 PXI 数字 I/O 模块有几种定时模式.第一个是模式 I/O 或测试时钟(同步),允许用户使用内部或外部时钟信号交换设计.下一个模式称为突发手协议(同步).此模式使模块能够在同步交换期间与 NI PXIe 6535 模块和外部仪器进行手协议,以优化传输速率.此外,还有一个变化检测模式,可以在至少一个数字线上发生更改时获取信息.接下来是手协议 I/O(非标准)模式,当 PXIe 6535 模块和外部仪器准备就绪时,可以进行设计交换.最后,有一个按需(非选通信号或静态输入/输出)模式,可以通过软件控制的顺序获取或生成信息.

PXIe 6535 重 5.1 盎司,尺寸为 8.42 x 0.79 x 5.14 英寸.

总线连接器:PXI Express
单端数字I/O通道的电流驱动:32 mA
数字I/O逻辑电平:2.5 V, 3.3 V, 5 V TTL
仅数字输入通道数量:-
仅数字输出通道数量:-
双向数字通道数量:32
数字输入电压范围:-1 V到6 V
输出电压范围:0 V到5 V
最大时钟速率:10 MHz
信号类型:单端
