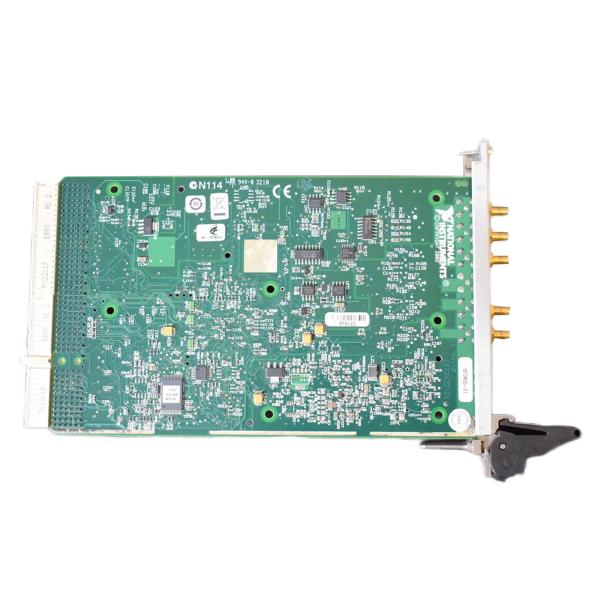

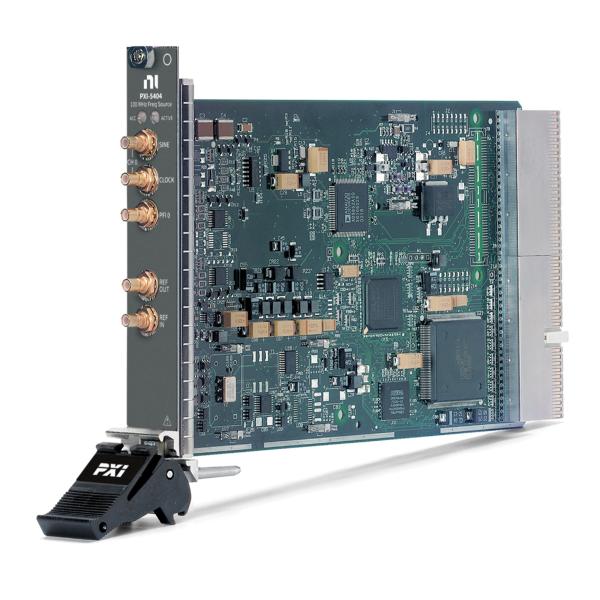

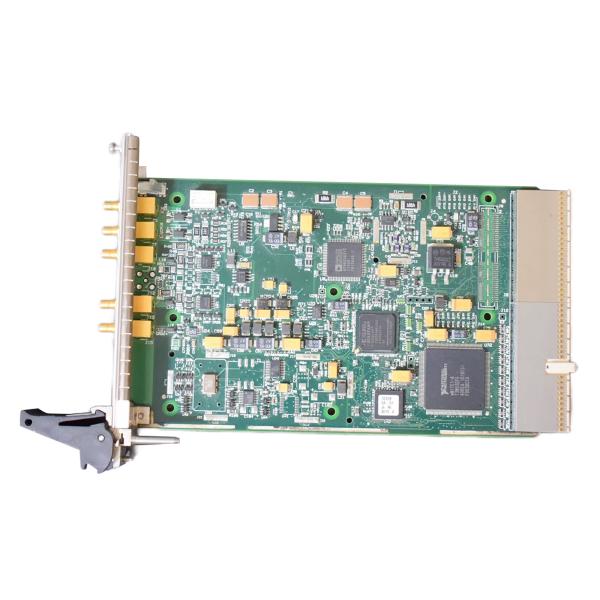

National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXI-5404
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXI-5404
Description
名字 国家仪器 PXI-5404 PXI 波形发生器

国家仪器 PXI-5404 PXI 波形发生器

国家仪器PXI-5404(部件编号:778577-02)是一个1槽PXI模块封装的100 MHz波形发生器.它能够以1.07 µHz的分辨率产生高达100 MHz的正弦波和时间输出.通过利用直接数字合成(DDS)和精确的锁相环电路,PXI-5404产生稳定,精确的正弦波和时钟输出,用户可以自动改变正弦波和时钟输出的幅度,频率,相位以及时钟输出的占空比.PXI-5404是一款适应性强,实用的正弦波形发生器,其输出电平在50 Ω负载下为1到2 Vpp,具有惊人的频率分辨率和平带平坦度.

刺激-反应仪器,例如分析仪和ATE测试框架,通过利用PXI-5404作为正弦刺激信号,由于其通带平坦度,频率准确度和分辨率而受益.PXI-5404还可以作为ATE框架的可编程时钟发生器,因为其具有1.07 µHz的频率分辨率,25到75百分比的 Duty cycle可定制性,以及5,3.3或1.8 V到高阻抗负载的可编程电压水平.

NI PXI-5404波形发生器非常适合相干时钟应用.通过同步正弦波和时钟输出,可以利用可理解的定时来减少被测设备的测试时间,并消除抗混滤波的要求.由于模拟激励和采样时钟之间有精确的相位和频率连接,因此在频谱分析的FFT中不需要窗口加权能力,从而减少了对DUT进行测试的需要,只需几个正弦激励周期即可.

是否支持任意波形:否
最大带宽:105 MHz
输出通道数:1
是否支持数字上变频:否
模拟输出电压范围:-1 V到1 V
模拟输出板载内存大小:8 MB
模拟输出分辨率:12位
射频信号生成:否
最大更新率:300 MS/s
是否支持脚本:否
总线连接器:PXI混合

National Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI ModuleNational Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI ModuleNational Instruments PXI-5404 100MHz Signal Generator 1.07µHz Resolution 1 Slot PXI Module
