National Instruments NI-5752B Digitizer Adapter Module for FlexRIO

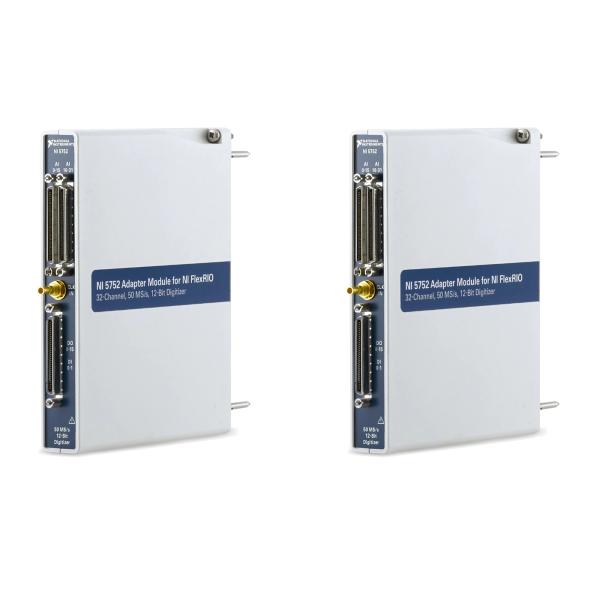

The National Instruments NI-5752B (Part Number: 784062-01) is a 32-Channel, 12-Bit Digitizer Adapter Module for FlexRIO. This model is designed for FlexRIO systems, and it can acquire samples at 50 MS/s. The NI-5752B is usually used with a PXI FPGA Module - a combination that works as a high-speed digitizer and is capable of sampling up to 32 channels. With this module, users can also utilize high-performance A/D converters to achieve streaming of analog data and real-time processing. The NI-5752B comes with an integrated sample clock with 25 MHz to 50 MHz frequency range.

This Digitizer Adapter Module for FlexRIO is an ideal choice for applications where high data streaming rates and in-line data processing are required. The NI-5752B offers 32 differential, simultaneously sampled channels (AI 0 to AI 32), through 2 VHDCI (dual stack) connectors in AC-coupled mode. This module comes with a 12-bit A/D converter, with a variable gain amplifier. With this module, users can acquire Digital Inputs through 2 channels at 2.0 V Minimum high-level input voltage and 0.8 V Maximum low-level input voltage.

The NI 5752B module offers 16 DO channels through a VHDCI connector and can generate outputs at 1 mA maximum output current, 10 ns minimum pulse width, and 1 MHz maximum toggle frequency. The National Instruments NI-5752B requires 5.3 W of total power from the host FPGA device. In total, this module has one SMB connector and three 68-pin VHDCI connectors mounted on the front panel.

Analog input bandwidth: 14 MHz
Compatible FPGAs: Kintex-7, Virtex-5
Analog input coupling: AC
Analog input voltage range: -1 V to 1 V
Analog input resolution: 12 bits
Maximum sampling rate: 50 MS/s
Number of voltage input channels: 32
