National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
National Instruments FlexRIO Adapter Module NI-5771 2 Channel 900MHz Bandwidth 3GS/S
Specifications
Price :
$1,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
NI-5771
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
NI-5771
Frequency range :
20hz ~ 20khz is divided into 3 frequency bands,9kHz ~ 6GHz,250kHz~67GHz,15MHz 30MHz 400MHz 50MHz 60MHz,25MHz
Oem :
Available,YES,MOQ>100pcs,OEM
Weight :
6.4 kg,3Kg,<28kg
Dimensions :
364(W)*112(H)*420(D)mm,215(W)mm*109(H)mm*44.5(D)mm,194*179*68 MM
Product name :
high voltage gps signal generator,DDS MFG-2125 function generator,Arbitrary Signal Generator
Warranty :
2 years,1 year
Frequency resolution :
0.00000001Hz,0.001Hz
Output signal :
0-24mA/0-12V/,4-20mA
Power supply :
AC 220* ( 1 10 % ) v 50* ( 1 5 % ) Hz,3.7V Battery
Ce :
Yes,Test and Measurement
Ssb phase noise :
<-110dBc/Hz@1GHz,20KHz carrier offset(typical),0.001Hz
Frequency accuracy :
±20ppm
Package :
Yes,Retail package
Dimension :
80*42*40mm,235mm*110mm*295mm
Display :
3.5-inch 480x320TFT LCD screen,4 inch TFT-LCD 480*320
Working temp. :
0℃ ~+40℃
Square :
1μHz~30MHz
The type of waveform :
Arbitrary wave (including DC)
Display size :
2.9 Inches & Under
Description
Name National Instruments 5771 Digitizer Adapter Module for FlexRIO

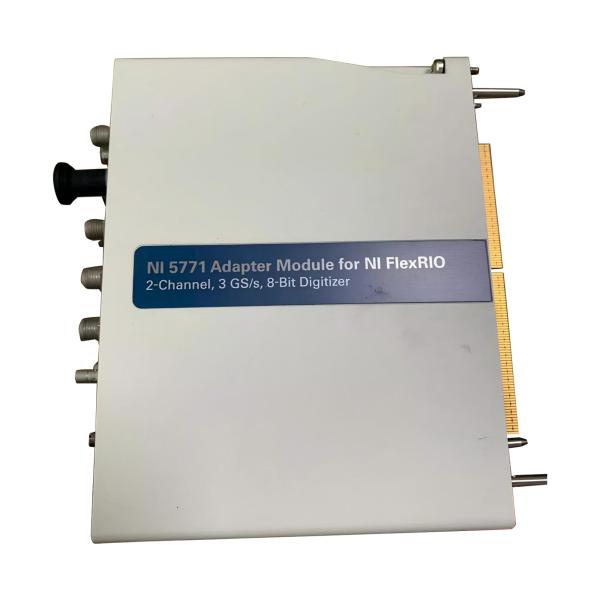

National Instruments NI-5771 Digitizer Adapter Module for FlexRIO

The National Instruments NI-5771 (Part Number: 781419-02) is a 2-Channel, 900 MHz Bandwidth, 8-Bit, Digitizer Adapter Module that is designed for FlexRIO based systems specifically. This device can sample one channel at 3.0 GS/s or two channels at 1.5 GS/s. This model can operate over an analog input voltage range of -0.675 V to 0.675 V and is compatible with Virtex-5 and Kintex-7 FPGAs. The NI-5771 comes with 2 SMA type analog input connectors (AI 0 and A1), which support DC input coupling.

This device comes with a 1.5 GHz, VCXO type onboard internal sample clock. The NI-5771 has a CLK IN connector and a CLK OUT connector. The AUX I/O connector is an HDMI connector. This module contains 12, bi-directional channels (4 PFI and 8 DIO) and supports 3.3 V LVCMOS interface standard. In addition, the National Instruments NI-5771 Digitizer Adapter Module for FlexRIO features a single-ended, SMB type TRIG connector. It is important to note that users can utilize a third-party, standard, HDMI cable with the AUX I/O connector. However, the AUX I/O port offered in this device is not an HDMI interface.

Users can utilize any 50 Ω coaxial, shielded cable to connect to the connectors provided on the NI 5771 front panel. This module weighs around 413 g and has dimensions of 12.9 × 2.0 × 12.1 cm. The module supports software which includes a broad range of example projects to assist users in creating their LabVIEW FPGA application.

Analog input bandwidth: 900 MHz
FPGA compatible: Kintex-7, Virtex-5
Analog input coupling: DC
Analog input voltage range: -0.675 V to 0.675 V
Analog input resolution: 8 bits
Maximum sampling rate: 3 GS/s
Number of voltage input channels: 2
