National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA
National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA
National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA
National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA
National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA
National Instruments NI-USRP-2945 Software Defined Radio Device with 10 MHz to 6 GHz RF Frequency Range 80 MHz Bandwidth and Kintex-7 410T FPGA
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
NI-USRP-2945
warranty :
1 month
customized support :
OBM, ODM, OEM
place of origin :
United States
brand name :
National Instruments
model number :
NI-USRP-2945
power :
See instruction manual for details
material :
See instruction manual for details
size :
See instruction manual for details
Description
Product Description

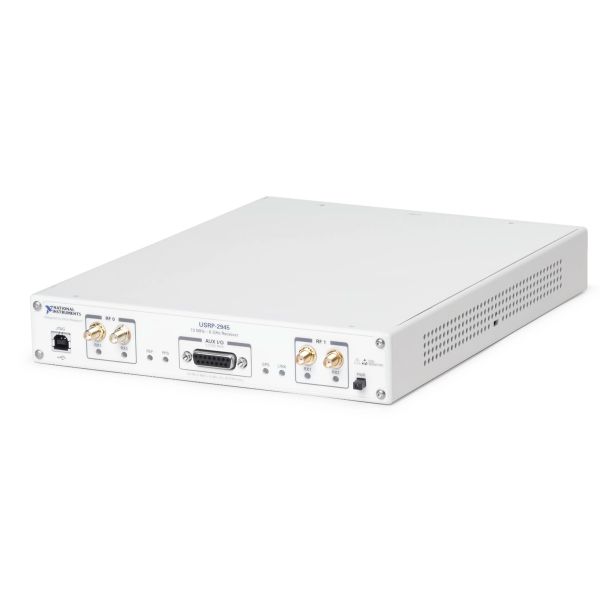

National Instruments USRP-2945 USRP Software Defined Radio Device

Featured with 1,024 Megabytes of onboard DRAM and 4 input channels, the NI USRP-2945 (Part Number: 785263-01) is a USRP Software Defined Radio Device. This device has a frequency range of 10 MHz–6 GHz and a bandwidth of 80 MHz per channel. The NI USRP-2945 comes equipped with a powerful Kintex-7 410T FPGA (field-programmable gate array). Thus, this device is widely considered for prototyping and the development of complex wifeless systems.

This USRP Software Defined Radio Device features 2 RF channels, 1 JTAG connector, 1 PCIe port, and 2 Ethernet ports. With this device, you will be able to stream data through Ethernet or PCI Express. The USRP-2945 has multiple timing and synchronization connectors as well. Since it is a software-defined radio device, the NI USRP-2945 allows the implementation of various radio communication components through software. Thus, you can use this device to implement amplifiers, filters, mixers, modulators, detectors, and demodulators by using a personal computer.

This device comes equipped with a 4-channel receiver that offers 2.5 ppm frequency accuracy and can operate at +10 dBm maximum input power. The analog-to-digital converter (ADC) provided for the receiver can operate with 14-bit resolution and has a spurious-free dynamic range (SFDR) of 88 dB. The USRP-2945 consumes 44 watts of power maximum. This device requires a 9 to 16 VDC, Class 2 or LPS power supply. The operating temperature range is 23 °C ± 5 °C. Thus, you cannot deploy your NI USRP-2945 in harsh operating requirements.

Characteristic Specification
Bus Connector MXIe, Ethernet
RF Frequency Range 10 MHz to 6 GHz
GPSDO No
Number of Output Channels 0
RF Transceiver Instantaneous Bandwidth 80 MHz
Number of Input Channels 4
FPGA Kintex-7 410T
