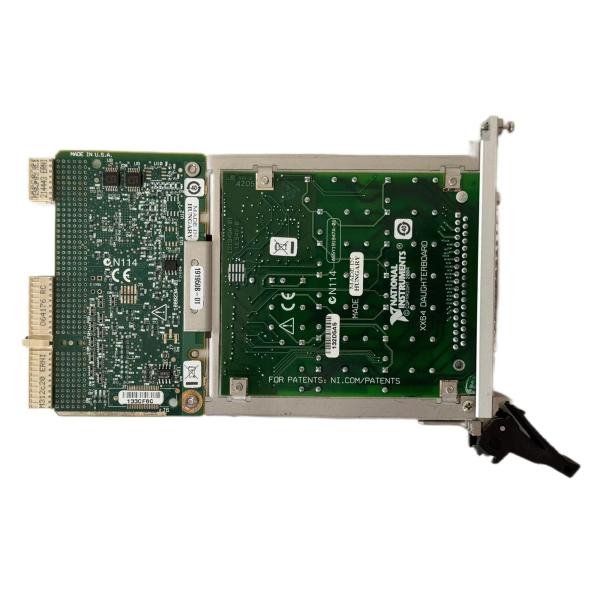

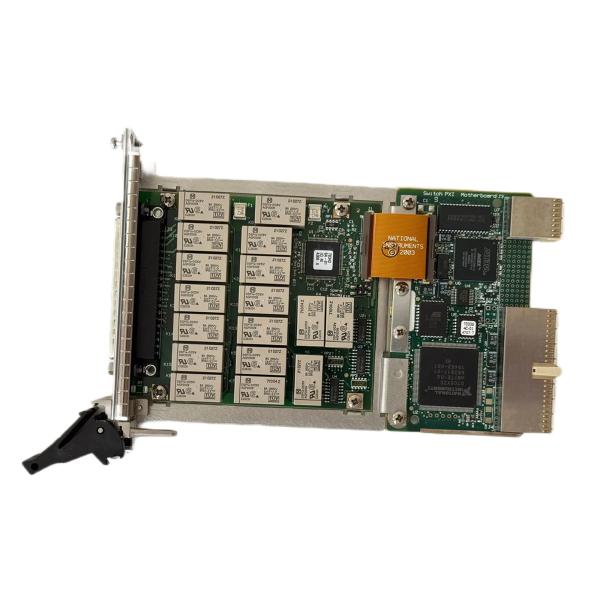

National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
Specifications
Price :
$1,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXI-2564
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXI-2564
Description
名字 国家仪器 PXI-2564 PXI继电器模块

国家仪器 PXI-2564 PXI继电器模块

国家仪器NI PXI-2564(部件编号:778572-64)是一款5A,16通道SPST PXI继电器模块.该继电器模块具有独立的SPST继电器.模块中安装的所有继电器均为非锁存型.这些继电器以其低热偏移和极低的导通电阻而闻名.此型号可以通过软件轻松编程.NI PXI-2564被认为是需要切换中到高功率信号和负载的应用中的理想选择,例如在汽车或自动化测试应用中.

该继电器模块是一个3U,一个插槽的PXI模块,配备了一个37针D-SUB公I/O连接器.该模块所使用的继电器具有镀金的继电器触点材料,并设计能够在10.4毫秒(最大)内工作.此外,这些继电器以其可靠性著称,因为它们具有机械继电器寿命为2 × 107次循环和电气继电器寿命为1 × 105次循环的机械寿命.该设备具有10 MHz的开关带宽和每秒45次循环的扫描速率.

就其触发特性而言,National Instruments PXI-2564 可以通过 PXI 触发线 <0...7> 在最小脉冲宽度 150 ns 接收信号.该模块还可以生成触发信号,脉冲宽度在 1 µs 到 62 µs 可编程.使用这个继电器模块,用户每通道可以获取最大 750 VA 的切换功率和最大 5 A 的切换电流.该型号允许在最大电流下同时操作 16 个通道.National Instruments PXI-2564 在 5V 时消耗 5 瓦功率.

PXI-2564 使用NI SWITCH驱动软件运行,该软件可以使用LabVIEW编程.该设备可以通过Measurement & Explorer (MAX)工具进行配置.NI设备重9.5盎司,尺寸为8.5 x 0.8 x 5.1英寸.其推荐工作温度范围为0 °C至55 °C,存储温度范围为-20 °C至70 °C,工作和存储湿度范围分别为10%至90%和5%至95%,并且在频率范围为5 Hz至500 Hz时,工作和非工作随机振动分别为0.3 grms和2.4 grms.

扫描速率:45 次/秒
总线连接器:PXI 混合型
最大直流切换电流:5 A
最大直流切换电压:150 V
继电器配置:SPST(常开)
切换带宽:10 MHz
继电器数量:16

National Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz BandwidthNational Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz BandwidthNational Instruments PXI-2564 16-Channel SPST PXI Relay Module with 5A Switching Current and 10 MHz Bandwidth
