National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth
Specifications
Price :
$1,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXI-2566
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXI-2566
Description

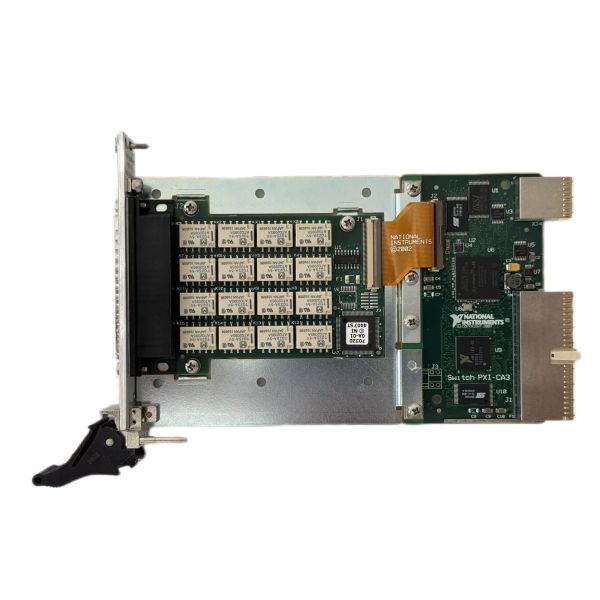

国家仪器 PXI-2566 继电器模块

国家仪器NI PXI-2566(部件编号:778572-66, 778573-66)是一款2A,16通道,基于SPDT的PXI继电器模块,适用于通用应用.该模块采用SPDT Form C动触式继电器.该模块中使用的继电器是非锁存型,具有低热偏移和极低的导通电阻.NI PXI 2566被认为是控制,路由和切换高电流信号的理想模块.每个继电器通道都有一个常开(NO),常闭(NC)和公共(COM)端子.该设备的开关带宽为70 MHz.部件编号778573-66是PXI-2566的60V版本.

通过这个模块,用户可以实现16-SPDT(非锁存)或8-DPDT拓扑结构.就其输入特性而言,National Instruments PXI 2566提供150 V DC,125 V AC最大开关电压(通道到通道)和150 V DC,125 V AC,CAT I1最大开关电压(通道到接地).由于这是一个测量类别I的模块,PXI-2566被设计用来携带不超过150 V的信号电压.然而,它有一个集成的保护机制,并且可以安全地承受高达800 V的脉冲电压.

这个PXI继电器模块提供60 W,62.5 VA(DC至60 Hz)的最大开关功率,2 A DC,2 A AC的最大开关电流,并允许在最大开关电流下16通道并行操作.NI PXI 2566模块中使用的继电器具有2 ms(典型),4.4 ms(最大)的继电器动作时间和115 cycles/s的最大循环速度.该型号模块设计为3U,一个插槽,PXI模块,重量约为250克(9盎司),尺寸为8.5 x 0.8 x 5.1英寸.它有一个62针D-SUB I/O连接器,并在5 V时消耗4.5瓦,在3.3 V时消耗2.5瓦.

PXI 2566 的工作温度范围为 0 °C 至 55 °C,储存温度范围为 -20 °C 至 70 °C,非冷凝湿度范围为 5% 至 85%,工作和非工作随机振动分别为 0.3 grms 和 2.4 grms,频率范围均为 5 Hz 至 500 Hz.

扫描速率:115 次/秒
总线连接器:PXI 混合型
最大直流切换电流:2 A
继电器配置:SPDT
切换带宽:70 MHz
继电器数量:16

National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching BandwidthNational Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching BandwidthNational Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching BandwidthNational Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth

Send your message to this supplier
Send Now
