Features:

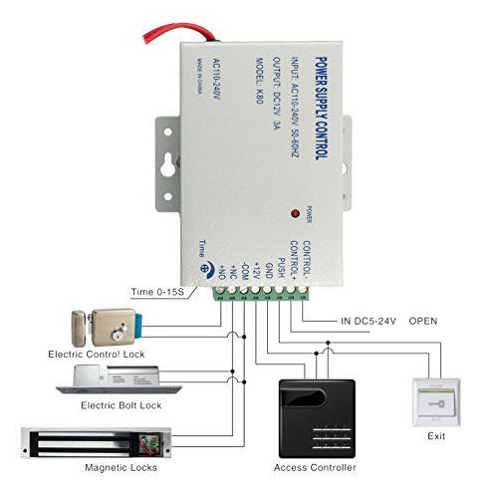

• Operative device: E/M Lock, access controller, exit push Button.
• Compatible with E/M lock, access controller, exit push button and RFID reader.
• Set NC/NO outputs, can control various types of electric locks.
• Based on relay control circuit, lock time can be adjusted with 0 -15 seconds.
• Automatic protection function for dangerous situation: overload / over voltage / short circuit.

Description:

Specifications:
It controls electric lock directly
Compatible with E/M lock, access controller, exit push button and RFID reader
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based relay control circuit, lock time can be adjusted with 0 -15 seconds
Automatic protection function for dangerous situation: overload / over voltage / short circuit
Protection mechanism :power may be temporarily disconnected or the fuse auto insured
Operative device: E/M Lock, access controller, exit push Button
Compact design and light weight
Worldwide voltage input 110 - 240V

Technical Information:
Product Type :Access Control SupplyAccess Control Supply
Input Voltage :AC 110 ~ 240V (worldwide voltage)
Input Frequency :50 ~ 60Hz
Output Voltage :DC 12V, 3A
Output Voltage Trim Range :± 10% ~ ± 15%
Load :1% Typical
Output Stability :0.5% Typical
Ripple and Noise :1% peak to peak (100mVp - p typical)
Insulation Voltage :- Junior / Sub-polar inter: 1500V AC
- Primary / Shell Between 1500V AC
- Sub-polar / Shell Between 500V AC
Hold Time :Full Load Typically 20ms
Operating Temperature :-20°C ~ 65°C
Adjustable Locking Delay :0 ~ 15 sec
Dimensions :- Approx. 120 (W) x 95 (H) x 38 (D) mm
- Approx. 4-3/4" (W) x 3-3/4" (H) x 1-1/2" (D) inch
