• AC input: Standard AC100V-240V 50-60HZ 36W, DC output: Stabilizator DC12V/ 3 A.
• Outside iron shell dimension:120mm*95 mm*38mm.
• Set NC / NO outputs, can control various types of electric locks.
• Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
• Package Include: 1 x Access Control Power Supply,1 x Manual.
•

• Description:

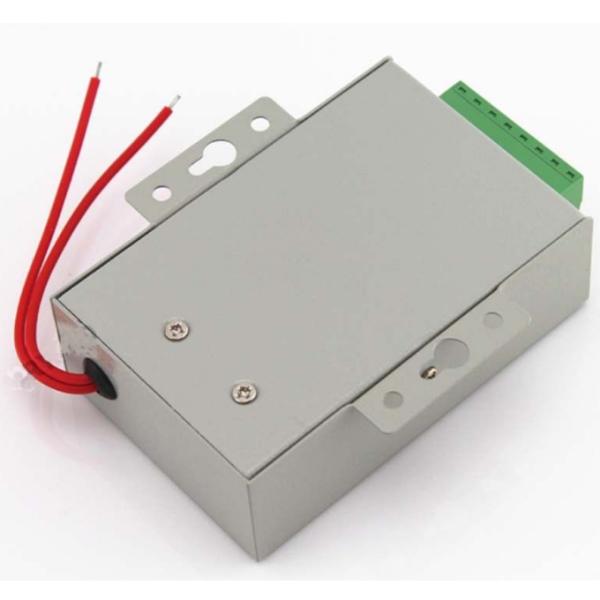

  Power Supply is Standard 12VDC,3A Control electric locks or bolts directly, Lessen the load of access controller Save project wires,Provide very stable and reliable output in a various applications such as lock control/controller control/exit button/RFID-ID Reader.

  Application:
  These products are widely applied in access control system and related applications such as Electric Magnetic lock , lock controller, RFID-IC card reader ,password keypad etc.

  Specifications:
  1.Small and exquisite, easy installation.
  2.Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only ¡À1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).
  3.AC input: Standard AC100V-240V 50-60HZ 36W.
  4.DC output: Stabilizator DC12V/ 3 A.
  5.It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
  6.Automatic protection function: It will protect automatical and no voltage output when short circuit happening in the circumferential circuit.
  7.Outside iron shell dimension:120mm*95 mm*38mm.
  8.Set NC / NO outputs, can control various types of electric locks.
  9.Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity
