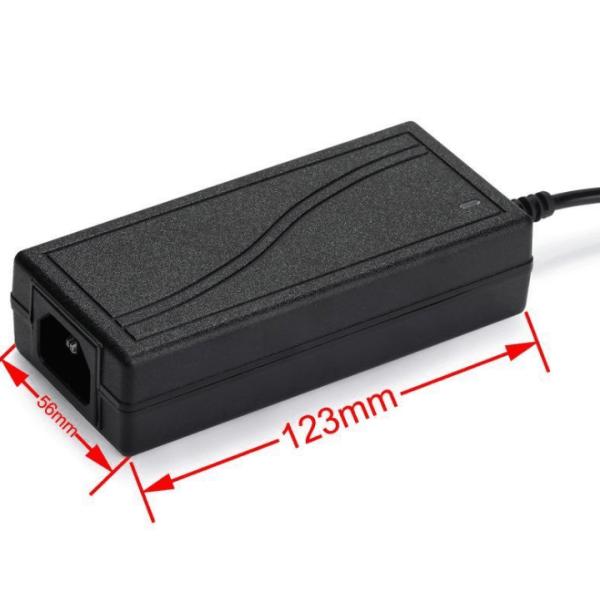

5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products
5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products
5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products
5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products
5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products
5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products
Specifications
Place of Origin :
Guangdong, China
Brand Name :
C-Power
Model Number :
CP-DP1903D
Output Type :
DC
Connection :
Plug In
Certificate :
CE
Product Name :
Power Adaptor
Output :
12v 15v 5v 19v 24v
Output voltage :
19v
Color :
Black
Usage :
Electronic Products
Warranty :
3 Years
Output current :
5a
Type :
DESK
Brand :
C-Power
MOQ :
10 pieces
Price :
$5.80/pieces 10-499 pieces
Description
Product Description

Features:

♦Universal AC input/Full range(up to 264VAC)

♦Protection: Short circuit/Overload/Over voltage/Over temperature

♦Built in PFC function, PF>0.95

♦Cooling by free air convection

♦Suitable for all kinds of LED lightings, and moving sign applications.

♦Built-in constant current limiting circuit (C.C.+C.V.mode);

♦Compliance to worldwide safety regulations for LED lightings

Product Specifications:

Input voltage

110V/220V AC

Input voltage Frequency

50/60Hz

Output voltage

19V

Output current

5A

Output power

95W

Power Factor

typical 0.95

THD

<10%

Power Efficiency

90%

Operation temp

-40-70°C(refer to output derating curve)

Storage temp

-40-85°C

Humidity

10-90%RH.

5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products

5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products

Safety Specifications :

over voltage protection: 120%min

over current protection: 120%min

over protection

Short-circuit protection: automatic recovery ­

Load regulation: ±5%

Green Circuit Design

High Efficiency

Environmental:

1. Adopts integrated device design, low temperature rise, low calorific value.

2. High stability, drive stable work, output current constant, no drift.

3. High security, suitable for high humidity, high dust, strong vibration environment of use;

Chip inside integrated over-voltage, over-current, overheat protective circuit.

4. Has the maximum output power limiting function, to avoid the impact of the LED.

5. Long use life design, normal life in 60,000 hours.

6. Pass through the corresponding temperature testing, aging test, efficacy test and short

circuit testing.

7.May be based on customer demand of custom-made related size and function driver module

Packaging & Shipping

5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products

Our Services

5v 15v 19v 3a 4a 5a Output Voltage AC 100V-240V Converter Adapter for Electronic Products

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
