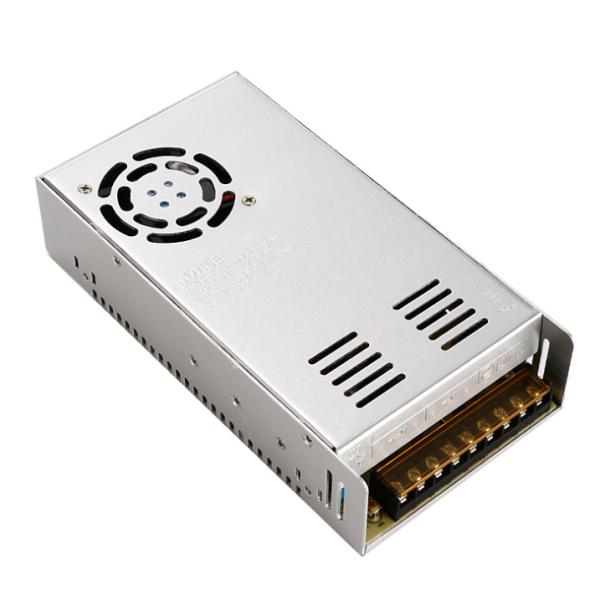

Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V
Specifications
Place of Origin :
China
Brand Name :
C-Power
Model Number :
s-350-24
Input Voltage :
110v 220v
Output Voltage :
24V
Output Frequency :
50/60Hz
Output Current :
15A
Application :
LED Lighting or CCTV Cameras
Warranty :
5 Years
Type :
Constant Voltage
Certification :
CE FCC ROHS
Protection :
Overvoltage Overload Short Circuit Overtemperature
PAYMENT :
T/T
Test :
100%Full Load Burn-in Test
MOQ :
50 pieces
Price :
$6.99/pieces 50-499 pieces
Description
Product Description
12V 30A or 24V 15A power voltage regulator s-360-12 or s-350-24
dc 12v 24v 30a power supply industrial smps single power

Output

12V 30A

24V 15A

AC input voltage range

110-264VAC

Input current

0.5A/115V 0.25A/230V

AC impulse current

Cold-start current 13A/115V 26A/230V

DC output voltage

12V

24V

DC output power

360W

360W

Rated output current

30A

15A

Output voltage error

±1%

±1%

Efficiency

85%

85%

Wave and noise

100mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

Leakage current

<0.5mA/240VAC

Overload protection

105% - 150% rated power, automatically recovery

Vibration

10500Hz,2G 10min./1cycle,Period for 60min,Each axes

Cooling method

Natural cooling air convection

Working temperature and humidity

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Store temperature and humidity

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

Safety standards

CE(EMC+LVD),Rohs

Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12VSingle Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12VSingle Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12VSingle Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V

Packaging & Shipping

Standard export package (paper carton) for shipment, or package as you need..

Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12VSingle Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V

Company Information

Single Power Industrial SMPS Constant Voltage Output 24V 30A S-360-12 or S-350-24 DC 12V

1,How many voltage can you supply?

-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)

2,How many current can you supply?

-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A

4,How's your power supply and adapter quality?

-- 100% burn-in test, full-round tests. We promise less than 1% defetive within one year.If within 1% defetive, just show us inner unique serial number of defetive products and we can replace for free in the next order;
