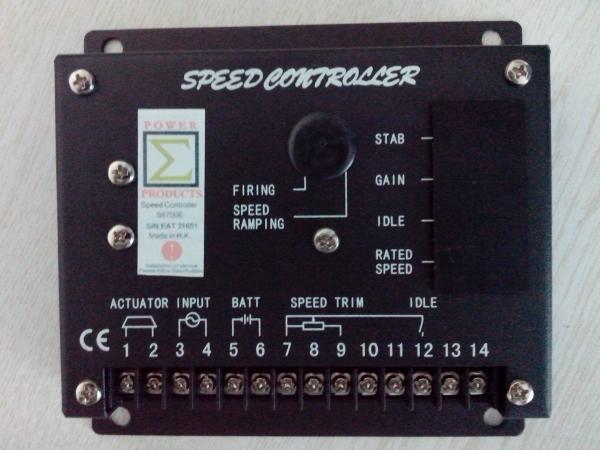

Segama Speed Control Unit S6700E
Segama Speed Control Unit S6700E
Specifications
Place of Origin :
China
Brand Name :
Segama
Certification :
ISO: 9001:2008
Model Number :
S6700E
MOQ :
1
Price :
1-300USD/pc
Packaging Details :
Standard Export Carton
Delivery Time :
3 Working days
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000
Description

Speed Control Unit S6700E

1)Introduction:

The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.

  • Power reverse connection protection
  • Actuator default protection
  • Speed signal Lose protection
  • Over-speed & External high Level input Alam

Environmental

Ambient operating temperature range - 40 ~ 85 °C

Relative humidity 95%

Input Power

Supply 24VDC

Actuator current range 2.5-10A(continuous)

Speed sensor signal 1-20v

Characteristics

Speed fine adjustment range ± 100% r / min

Frequency fluctuation ± 0.25%

Steady speed droop 0~3% (variable)

Temperature drift ± 1% (maximum)

2)Technical Data Of S6700E:

Environmental Ambient operating temperature range - 40 ~ 85 °C
Relative humidity 95%
Input Power Supply 24VDC
Actuator current range 2.5-10A(continuous)
Speed sensor signal 1-20v
Characteristics Speed fine adjustment range ± 100% r / min
Frequency fluctuation ± 0.25%
Steady speed droop
