153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover
153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover
Specifications
Brand Name :
QuanJiang
Model Number :
603D bottom
Certification :
ISO9001
Place of Origin :
China
MOQ :
391000 pcs
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
9000 000 000pcs /Month
Delivery Time :
negotiated
Packaging Details :
thin PE film + rust-proof paper+carton+wooden pallets
Metal type :
TINPLATE or TFS tin free steel
Diameter :
153mm
Thickness :
0.18mm-0.25mm or customized
Chuck diameter :
153.04mm
Round edge height :
2.00--2.20mm
Dry rubber content :
110-130mg
Description

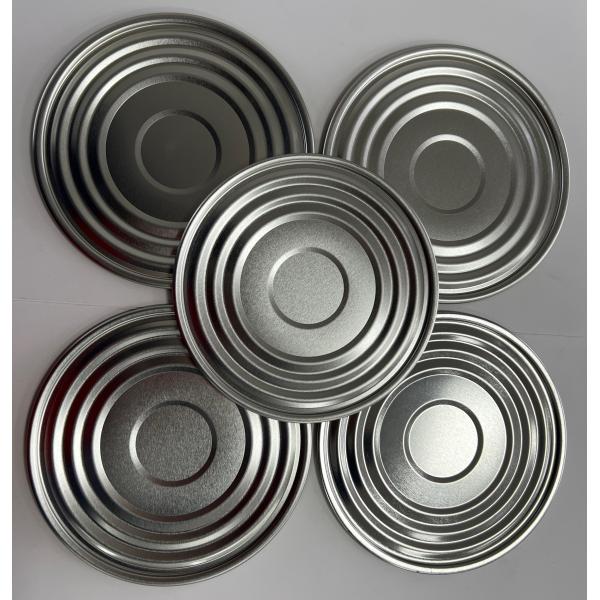

Metal Tinplate Lid 153mm Diameter Tin Can Bottom Cover
603D 153mm Bottom Ends Tinplate Tin Cover

Designed for secure sealing with rubber content and chuck diameter, this metal tinplate lid provides reliable closure for various canning applications.

Technical Specifications
Model NO. Outer Diameter(mm) Chuck Diameter(mm) Round edge height(mm) Dry rubber content(mg)
603D 163.60-163.85 3.10-3.30 2.00-2.20 110-130
Quality Standards
  • Hook side: ≥3.07mm
  • Moisture: ≤4%
  • Conductivity: 5mA per piece, not exceeding 3mA on average
  • Depth of disk: 0.60±0.10
  • 20% CuSO4 test: No obvious rust after 3 minutes soaking
  • Boiling detection: No coating damage after 121℃ sterilization for 30 minutes
  • Antiacid resistance: No peeling or corrosion after 121℃ sterilization for 30 minutes
  • Resistance to sulfur: No blackening after 121℃ sterilization for 60 minutes
  • Appearance inspection: No scratches, leakage coating, or deformation
Available Specifications
Size/MM Can Diameter/MM Chuck Diameter/MM Inner Coating Outer Coating
200 50 49.27 Clear Lacquer; Gold Lacquer; Aluminum Paste; White Coating; Buff Coating; BPA Free Clear lacquer; Gold Lacquer; Printing; Plain Surface; Laminating
202 52 51.99 Same as above Same as above
300 73 72.57 Same as above Same as above
307 83 82.96 Same as above Same as above
401 99 98.6 Same as above Same as above
603 153 153.04 Same as above Same as above
Applications
Daily Products Can Tomato Paste Can Fruit Can Vegetables Can Meat Can Fish Can Tuna Can Milk Products Can

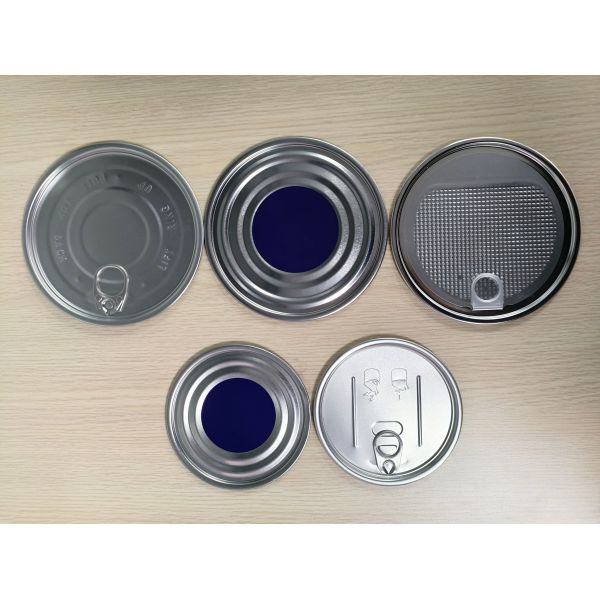

Product Gallery
153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover 153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover 153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover 153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover 153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover
Product Advantages
  • Tinplate material provides excellent preservation, light protection, and durability with attractive metal decoration
  • Fine workmanship with rounded edges for safety and ease of handling
  • Beautiful appearance with reliable sealing performance
  • Customization support with complete specification options
Quality Certification
153mm Diameter Tinplate Lid with Rubber Content for Secure Sealing as Tin Can Bottom Cover
Packaging

Standard export packing: thin plastic film + rust-proof paper + carton + wooden pallets
