Specifications
Brand Name :
HEYA
Model Number :
HY-102
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,D/A,D/P,Western Union
Supply Ability :
800 pcs/week
Delivery Time :
15-20 work days
Packaging Details :
Coated with anticorrosive oil , packed in carton box
Product Name :
Mold Core Pin
Highlight :
Precision core pins, core pin die casting
Tolerance :
+/-0.001mm
Hardness :
43-47 HRC
Feature :
Durable
Processing Method :
Electroforming Processing
Material :
Nickel
Application :
Electroforming process
Heat Resistance :
High
Corrosion Resistance :
Excellent
Mold Life :
Long
Conductivity :
High
Shape :
Customized
Durability :
High
Surface Finish :
Polished
Thickness :
Depends on design
Description

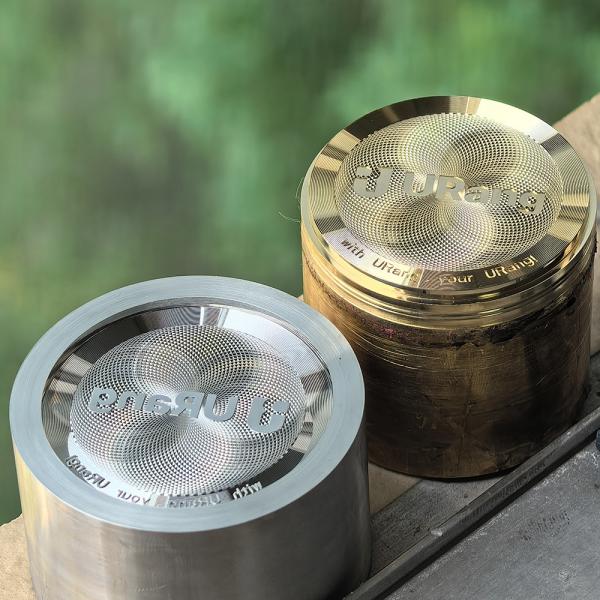

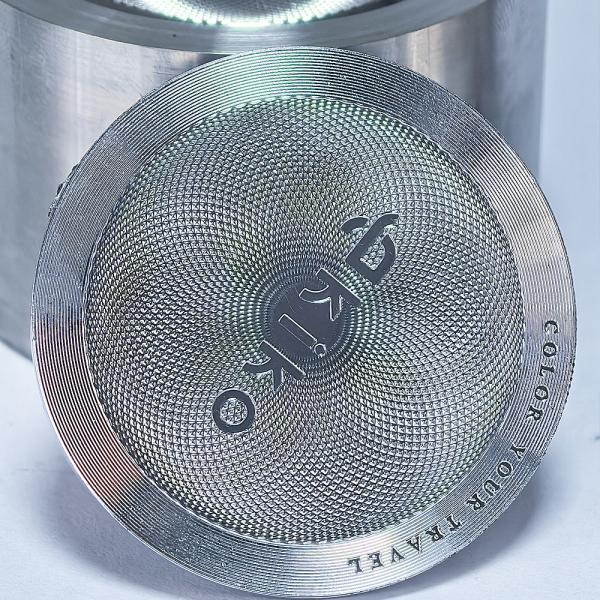

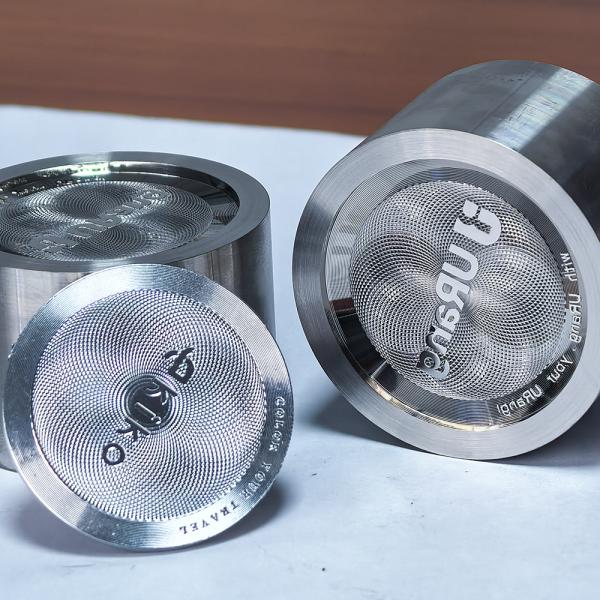

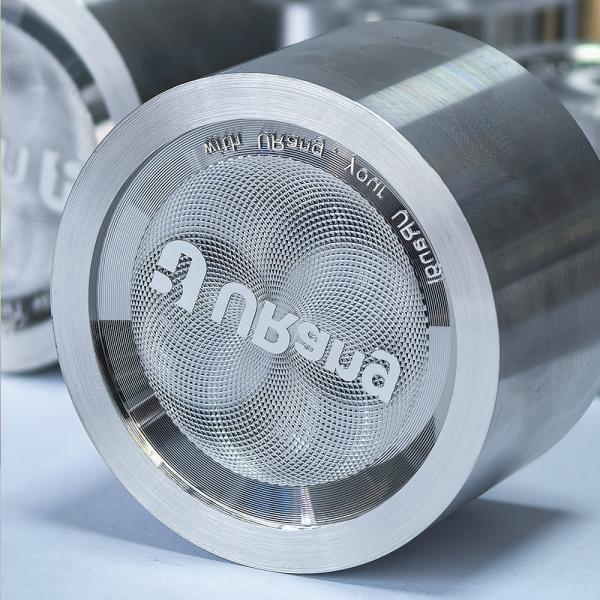

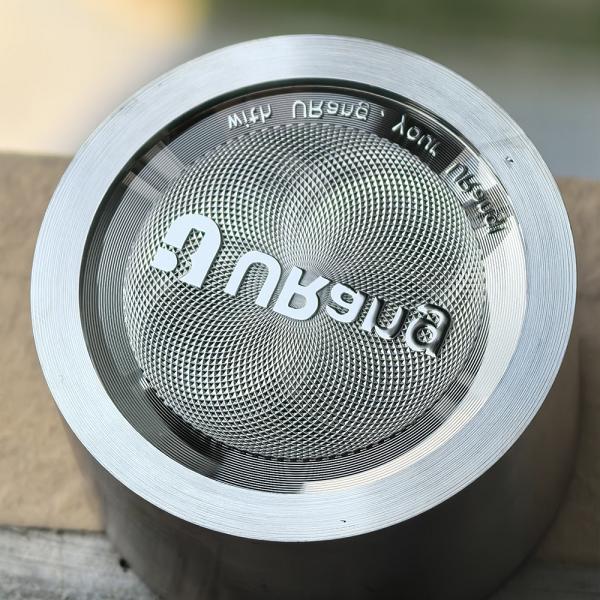

Customizable High-Precision Diamond Pattern Electroformed Molds For Seal Molds
Product Specifications
Attribute Value
Product Name Mold Core Pin
Highlight Precision core pins, core pin die casting
Tolerance ±0.005mm
Hardness 43-47 HRC
Feature Durable
Processing Method Electroforming Processing
Material Stainless steel, brass, aluminum, tin, and other metal alloys
Application Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Product Overview

We specialize in electroformed molds with high-precision diamond patterns, tailored for seal mold manufacturing—serving industries such as official seal production, corporate stamp fabrication, and anti-counterfeiting seal manufacturing. Leveraging advanced electroforming technology, our molds deliver micron-level pattern accuracy and durable performance, trusted by 150+ clients including government-authorized seal makers and security printing companies.

Core Product Parameters
Key Indicators Specifications Industry Benchmark Application Value
Diamond Pattern Precision Line width: 0.05-0.3mm (±0.002mm)
Depth: 0.03-0.1mm		 ±0.005mm (standard) Ensures clear, anti-counterfeit patterns on seals
Surface Roughness Ra≤0.01μm Ra≤0.02μm (common) Enhances pattern replication sharpness
Mold Material High-purity nickel (99.95%), nickel-cobalt alloy Standard nickel alloys Corrosion-resistant, wear-resistant (≥100,000 cycles)
Customization Range Pattern design, size (φ10-100mm) Limited to standard patterns Adapts to official/corporate seal specifications
Key Advantages
Micron-Level Diamond Pattern Replication

Using electroforming—via photolithography and electrolytic deposition—we replicate intricate diamond patterns with line width as fine as 0.05mm and tolerance ±0.002mm. This ensures that seals made from our molds feature sharp, consistent patterns (e.g., micro-text, anti-counterfeit lines) that are difficult to forge, meeting national seal security standards (e.g., China GB/T 22388, EU EN 16582).

Electroforming Excellence for Seal Durability

High-purity nickel (99.95%) and nickel-cobalt alloy materials offer superior corrosion resistance (passes 5000h salt spray test) and wear resistance, enabling the molds to withstand ≥100,000 stamping cycles without pattern degradation. This is critical for mass-producing consistent, long-lasting seals for government agencies and enterprises.

Full Customization for Seal Specifics

We tailor molds to match diverse seal requirements:

  • Patterns: Custom diamond textures (linear, grid, radial), integrated logos, or security micro-text (0.1mm font size) for anti-counterfeiting
  • Sizes: From small corporate stamps (φ10-30mm) to large official seals (φ50-100mm), compatible with rubber, resin, or metal seal materials
  • Surface Finish: Mirror-polished (for high-sharpness replication) or matte (for reduced glare in optical inspection)
Seal-Specific Performance

Our electroformed molds ensure that seal patterns maintain clarity after repeated stamping (ink adhesion test: ≥95% pattern coverage). The diamond patterns enhance ink retention, preventing smudging and ensuring legibility on documents, certificates, and official papers.

Application Scenarios
  • Official Seals: Molds for government, judicial, and administrative agency seals requiring strict pattern accuracy and anti-counterfeiting features
  • Corporate Stamps: Molds for company chops, financial seals, and contract stamps, with custom logos and registration numbers
  • Anti-Counterfeiting Seals: Molds for high-security seals (e.g., notary public stamps, customs seals) with micro-diamond patterns detectable via optical scanners
Our Service Commitment
  • Rapid Prototyping: 5-7 days for mold prototypes, with 3D microscopic inspection to validate pattern precision
  • Design Support: Bilingual engineers assist with pattern optimization (e.g., adjusting diamond density for ink flow) based on client seal materials (rubber, metal, resin)
  • Quality Certifications: ISO 9001 certified, with full traceability for material purity (certified by SGS) and production processes

Whether you need molds for standard corporate stamps or high-security official seals, our high-precision diamond pattern electroformed molds deliver the accuracy, durability, and anti-counterfeiting performance your seal production demands.
