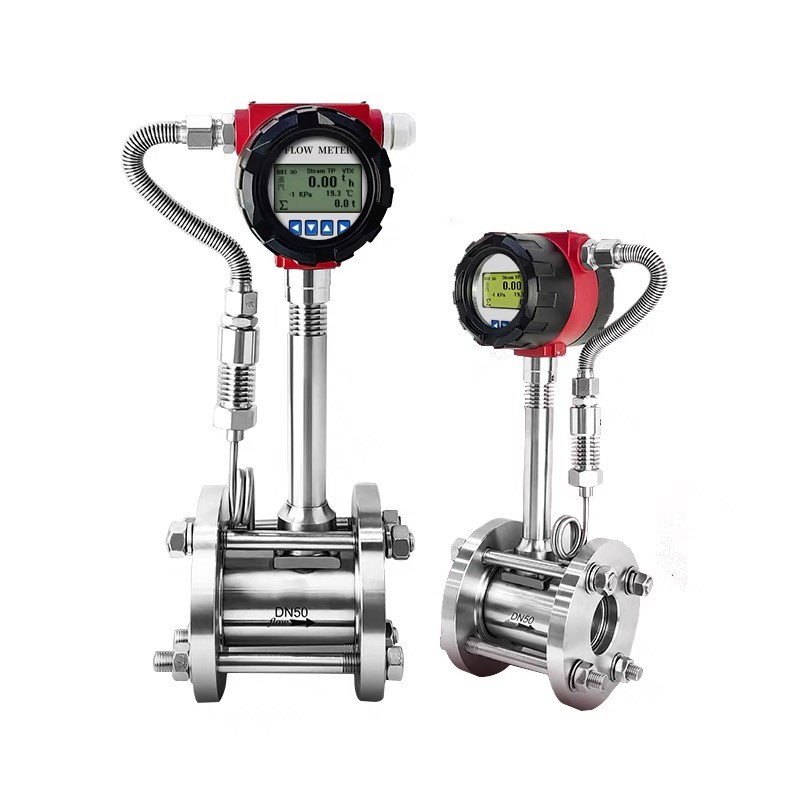

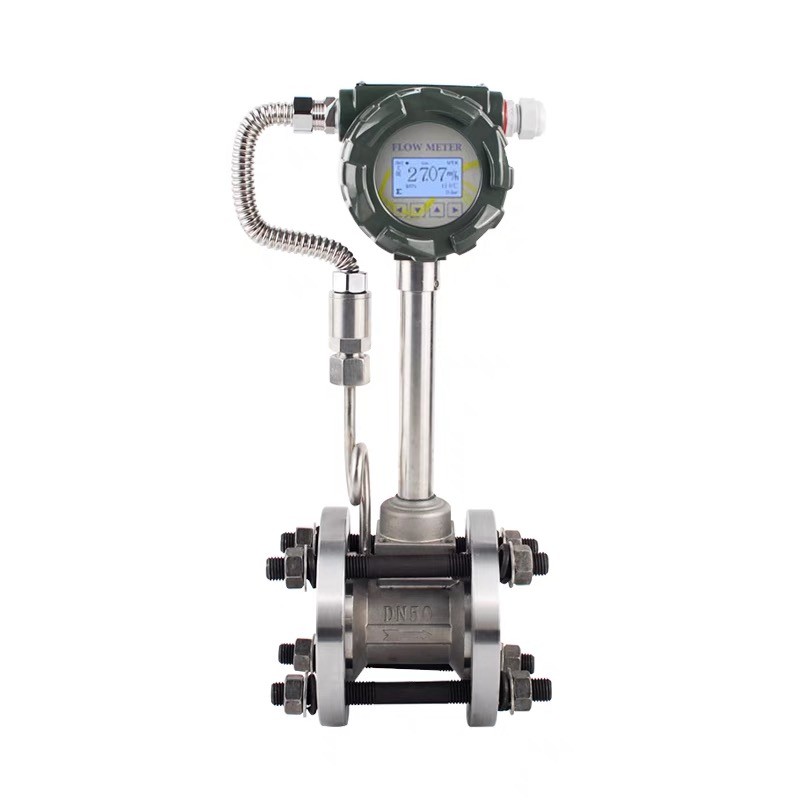

High Accuracy Low Maintenance Vortex Type Flow Meter Vortex Flow Transmitter DN15-50
High Accuracy Low Maintenance Vortex Type Flow Meter Vortex Flow Transmitter DN15-50
High Accuracy Low Maintenance Vortex Type Flow Meter Vortex Flow Transmitter DN15-50
High Accuracy Low Maintenance Vortex Type Flow Meter Vortex Flow Transmitter DN15-50
Specifications
Brand Name :
INSTE
Model Number :
ISTLUGB
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$/set
Payment Terms :
T/T, Western Union
Supply Ability :
50sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Protection Grade :
IP65
Pressure Range :
0-40 bar
Communication :
RS-485 / MODBUS , HART
Range Ratio :
1:10 ； 1:15
Ambient Temperature :
-35℃~60℃(without LCD)；-5℃~60℃(with LCD)
Language :
Chinese, English
Applications :
water supply,heating supply
Process Connection :
Flange, Thread
Measurement Ratio :
Standard -10:1
Port :
Xian, Shanghai, Beijing
Product Naem :
juice flow meter
Medium Temperature :
-40 to 350 degrees Celsius
Connection :
Flange: DN15-DN300;Wafer: DN15-DN300
Connection Type :
Insertion
Nominal Pressure :
1.0~6.3Mpa
Description

Vortex Flow Meter

Instrument caliber(mm) liquid gas
Measuring range(m3/h) Output frequency range(Hz) Measuring range(m3/h) Output frequency range(Hz)
15 0.3～5 24～400 4～20 352～1761
20 0.6～10 23～382 6～30 254～1273
25 1.2～16

21～320

 8～50 161～1112
32 1.8～20 18～200 10～100 97～1172
40 2～40 10～190 20～200 134～1018
50 3～60 8～150 35～350 87～952
65 4～85 6～120 45～450 71～764
80 6.5～130 4.1～82 86～1100 54～696
100 15～220 4.7～69 133～1700 42～548
125 20～350 3.2～57 150～2000 26～346
150 30～450 2.8～43 347～4000 34～392
200 45～800 2～31 560～8000 23～326
250 65～1250 1.5～25 890～11000 18.5～229
300 95～2000 1.2～24 1360～18000 16～216
(300) 100～1500

5.5～87

 1560～15600 85～880
(400) 180～3000 5.6～87 2750～27000 85～880
(500) 300～4500 5.6～88 4300～43000 85～880
(600) 450～6500 5.7～89 6100～61000 85～880
(800) 750～10000 5.7～88 11000～110000 85～880
(1000) 1200～1700 5.8～88 17000～170000 85～880
>(1000) protocol protocol
