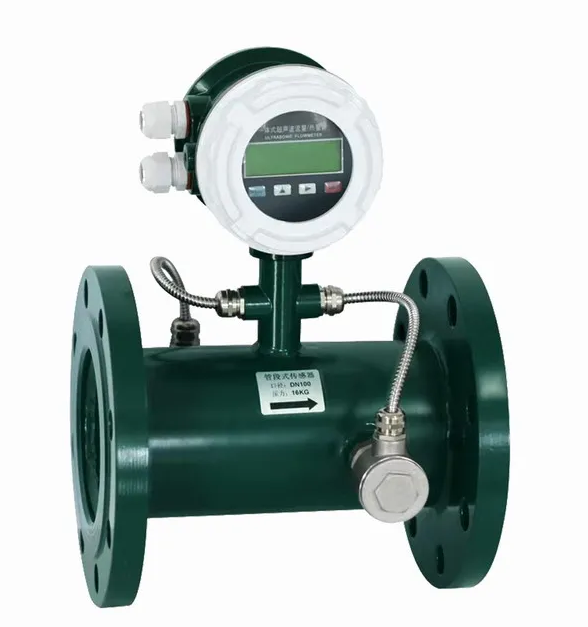

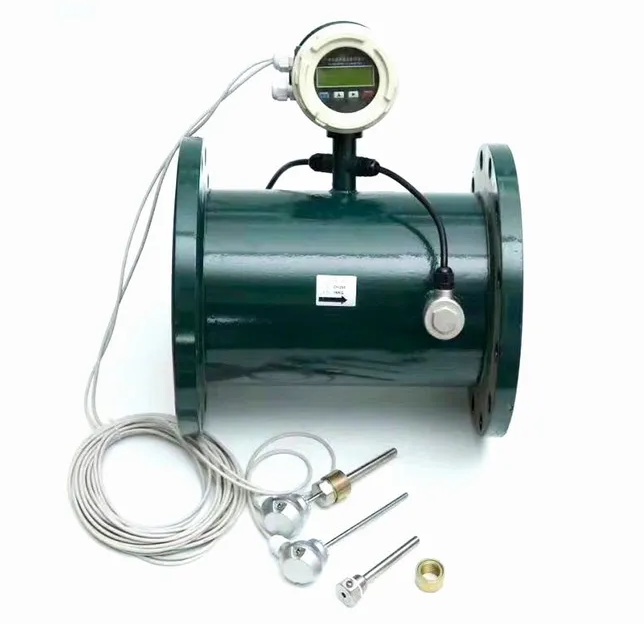

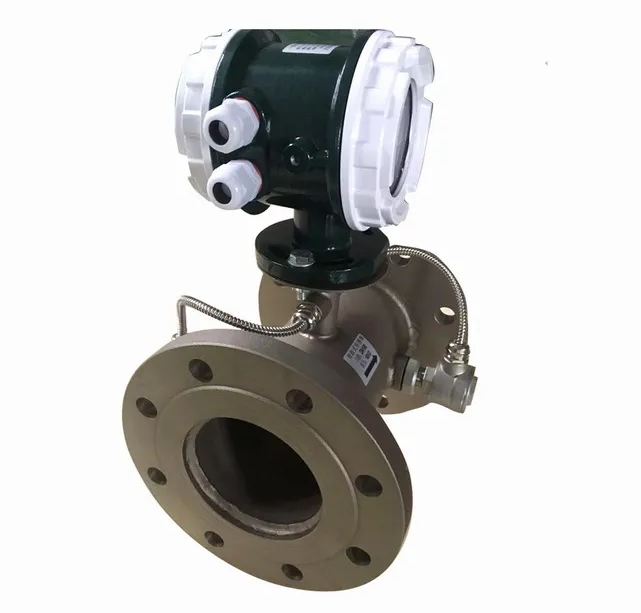

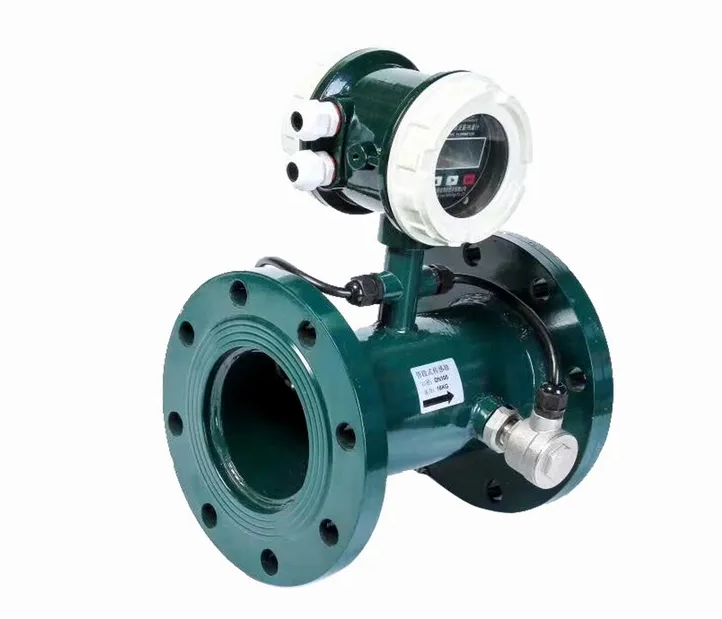

Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Wall Mounted Ultrasonic Flow Meter High Precision 4-20mA Output DN15-DN6000
Specifications
Brand Name :
INSTE
Model Number :
IST-2000S
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
USD 198-998/set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/Month
Delivery Time :
5-8days
Packaging Details :
40.00cm * 40.00cm * 40.00cm
Pipe Diameter :
DN15 ~ DN6000
Max Flow Velocity :
64m / s
Working Voltage :
10V～36V
Protection Rate :
IP65
Weight :
2.6±0.1kg
Grade :
Industrial
Liquid Level :
0-10m
Working Temperature :
0～60℃
Serial Port :
RS485
Pipe Diameter :
DN15~1500mm
Water Depth Range :
0.02~3m, 0.02~10m
Process Pressure :
-0.1~2.0MPa
Communicating Protocol :
modbus protocol, RS485
Transducer :
Encapsulated design,IP68
Relative Humidity :
35 to 85% RH (non-condensing)
Description

Meinte ultrasonic heat meter measures the flow volume and display the heat energy released or absorbed by water flow when passing though the heat exchange system.It is an ideal choice for Energy management systems ,BTU sub-metering systems applications in HVAC, heating/cooling energy production, and other applications .

The temperature range is -20~100ºC.

Measurement unit: Kwh, Gcal Communication .

Interface choice:RS-485 MUDBUS output

Specifiction

Performance specifications
Flow range ±0.03m/s ~ ±12m/s
Accuracy ±1.0%
Pipe size Clamp-on:1''~48''(25mm~1200mm)
Measured medium Water
Pipe material PVC, Carbon Steel, Stainless Steel
Optional Outputs OCT Pulse output:0~5000Hz.
Analog output:WIFI, 4~20mA, max load 750Ω.
Communication interface RS485 MODBUS
Power supply 10~36VDC
Keypad 16(4×4)key with tactile action
Display 20×2 lattice alphanumeric, back lit LCD.
Temperature Transducer -20ºC~100ºC
Humidity Up to 99% RH,non-condensing
Transmitter PC/ABS,IP65.
Transducer Encapsulated design,IP68.
Transducer cable Standard cable length:30ft(9m).
Temperature sensor PT100 or PT1000
