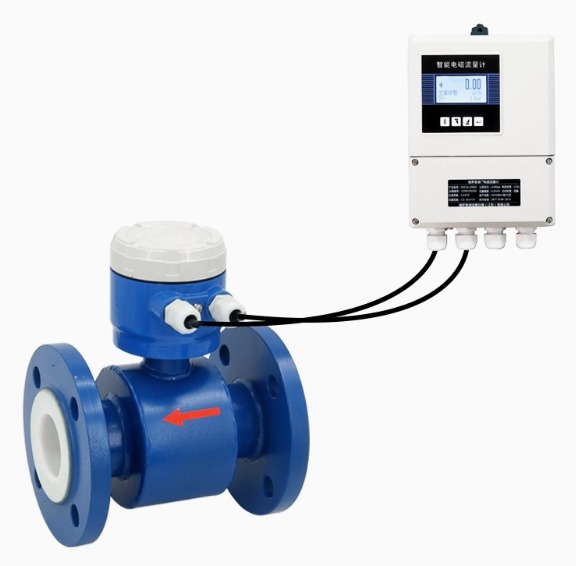

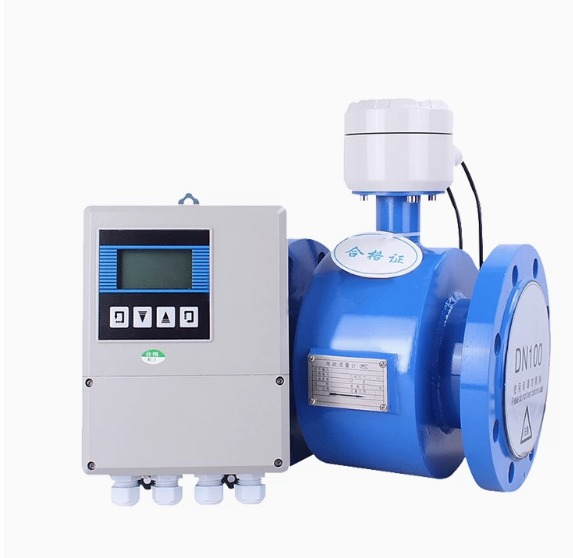

High Accuracy Versatile Electromagnetic Flow Sensor Mag Flow Transmitter For Strong Acids DN80
High Accuracy Versatile Electromagnetic Flow Sensor Mag Flow Transmitter For Strong Acids DN80
High Accuracy Versatile Electromagnetic Flow Sensor Mag Flow Transmitter For Strong Acids DN80
High Accuracy Versatile Electromagnetic Flow Sensor Mag Flow Transmitter For Strong Acids DN80
Specifications
Brand Name :
INSTE
Model Number :
ISTLDG
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
USD200-800/ set
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per day
Delivery Time :
2-3 word days
Packaging Details :
wooden package
Caliber :
DN80mm
Power Supply :
AC220V，DC24V, 3.6V
Display :
Instantaneous flow, total flow, flow velocity
Structure Type :
Integrate or Remote
Pressure :
0.6Mpa-10Mpa
Accuracy :
±0.5% of reading
Fluid Temperature :
-20°C~120°C
Ambient Temperature :
-20℃~60℃
Environment Temperature :
-10℃～+60℃
Output :
4-20mA
Communication :
RS485 MODBUS RTU, HART, GPRS
Electrode :
SS316L, Hastelloy B, Hastelloy C, Titannium, Tantanlum, Platinum-iridium
Flange Standard :
DIN, ANSI, JIS
Description

Electromagnetic flowmeters can be used to measure the volume flow of conductive fluids in closed pipelines, and can also be used to measure the volume flow of corrosive liquids such as strong acids and alkalis and uniform liquid-solid mixed liquids such as mud, pulp, and paper pulp. Widely used in petrochemical industry, iron and steel metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection sewage measurement and control, paper making, medicine, food and other industrial and agricultural production process flow measurement and control.

Diameter DN80mm
Power supply 220VAC/ 24VDC/3.6V
Liner Material PTFE/PFA/F46/Neoprene/Polyurethane
Electrode material 316L, HB, HC, Ti, Ta, WC, Pt
Output signal Pulse / 4~20mA / RS485 Modbus / HART
Pressure 0.6-4Mpa (high pressure customizable)
