Specifications
Place of Origin :
Shandong, China
Brand Name :
Yuanhui
Model Number :
YJLV YJLV22 YJLV32
MOQ :
100 meters
Price :
$3.25/meters 100-999 meters
Certification :
ISO CCC CE
Payment Terms :
T/T
Supply Ability :
50000 meters per week
Delivery Time :
5-7 work days
Packaging Details :
Ironwood shaft packing
Insulation Material :
lszh XLPE
Type :
LOW VOLTAGE High Voltage Medium Voltage
Application :
Industrial construction underground power station
Conductor Material :
Aluminum
Jacket :
PVC
Size :
as requirments
Product name :
YJV YJV22 YJV23 XLPE Power Cable
Rated voltage :
1-35KV 0.6/1KV
Standard :
IEC 60227
Certificate :
ISO9001/CCC/CE
Core :
1/2/3/4/3+1/5/3+2/4+1
Package :
Iron-wooden Drum
Length :
Customized Meters
Armour :
SWA STA AWA ATA
Cross section :
1.5mm-600mm2
Sample :
Availaible
Description

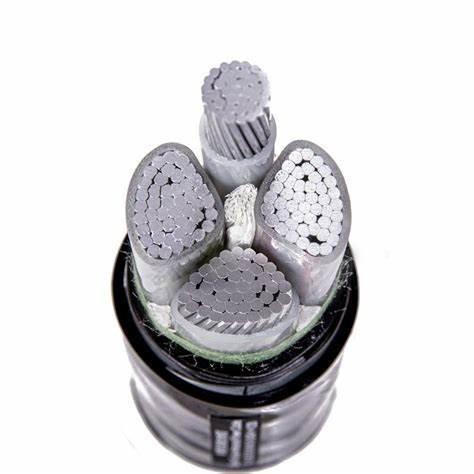

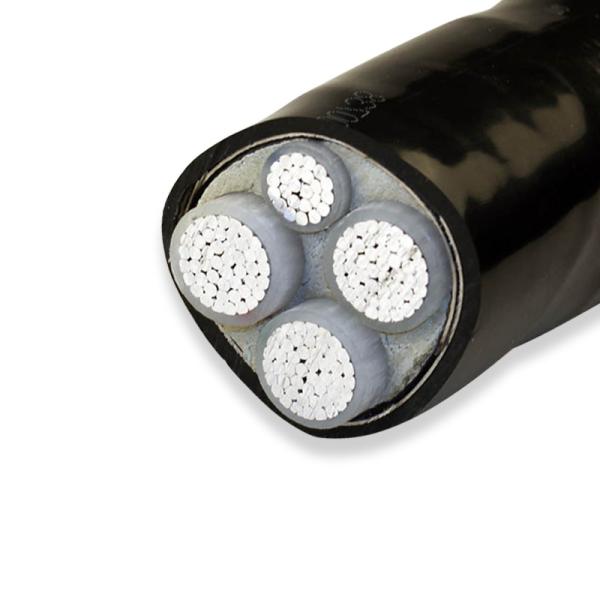

SWA Armoured 4 Core XLPE Insulated Power Cable Aluminum Conductor 35mm-240mm
Product Description
1. Conductor
This power cable features an aluminum conductor. Aluminum is a cost-effective choice for conductors while still providing good electrical conductivity. The cable is available in sizes ranging from 35mm² to 240mm², offering flexibility for different power transmission requirements. Whether for medium-sized industrial applications or larger-scale projects, there is a suitable conductor size to meet specific needs.
2. Insulation
The insulation material used is cross-linked polyethylene (XLPE). XLPE insulation offers excellent electrical insulation properties, ensuring the safe transmission of power. It is highly resistant to heat, moisture, and chemicals, making it suitable for a wide range of environments. This insulation provides long-term reliability and durability, reducing the risk of electrical failures.
3. Four Cores
The cable has four cores, which allows for the transmission of multiple electrical phases or for specific applications that require multiple conductors. The four cores are insulated from each other to prevent electrical interference and ensure proper functioning. This configuration is commonly used in industrial power distribution systems.
4. Steel Wire Armoured (SWA)
The cable is armoured with steel wire, providing mechanical protection. The SWA sheath enhances the cable's durability and resistance to external forces such as impacts, abrasion, and crushing. It also offers additional protection against rodent damage and vandalism. This makes the cable suitable for installation in harsh environments and areas where there is a risk of mechanical damage.
5. Applications
This SWA armoured 4-core XLPE insulated power cable with aluminum conductor is ideal for a variety of industrial applications. It can be used for power distribution in factories, warehouses, mines, and construction sites. The cable is suitable for both indoor and outdoor installations, and its armoured construction makes it particularly useful for underground or exposed installations.
For example, it can be used to connect electrical panels to machinery, equipment, and lighting systems. The cable's reliable performance and durability make it a trusted choice for industrial power transmission needs.
Specification

Norminal cross

section

 Reference overall diameter of cable Permissible A mpacily Reference weight of cable
A
In air In ground
MM² MM CU AL CU AL Kg/km
4X2.5 11.8 29 22 38 29 211 148
4X4 13.0 38 29 50 38 283 182
4X6 14.2 49 37 62 47 376 225
4X10 16.7 67 50 84 63 567 314
4X16 19.1 88 66 109 82 829 424
4X25 23.2 119 90 142 107 1249 618
4X35 25.5 146 110 170 129 1689 804
4X50 26.2 173 128 201 151 2146 916
4X70 28.9 218 164 245 185 2944 1219
4X95 32.5 271 201 294 223 3903 1559
4X120 35.9 315 234 333 253 4967 1956
4X150 40.2 366 272 374 321 6133 2413
4X185 44.4 422 315 421 481 7600 3008
4X240 49.4 486 377 489 425 9743 3784
4X300 56.0 569 440 555 12271 4716
4X400 67.9 686 628 16248

Packing & Delivery
SWA Armoured 4 Core XLPE Power Cable Aluminum Conductor 240mm XLPE Flexible Cable
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

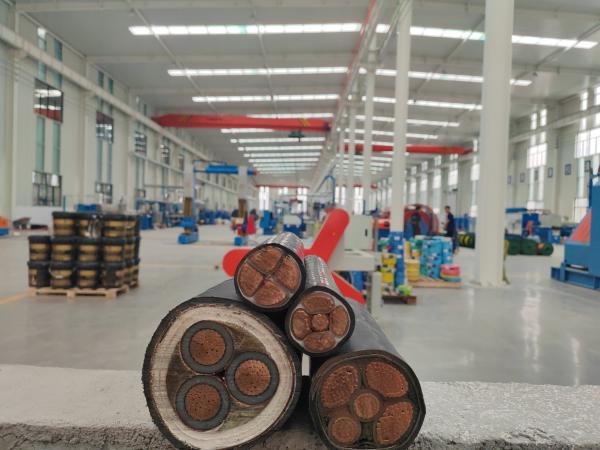

Company Profile
Shandong Jinyu Cable Co., Ltd. is located in Yanggu, the ancient city of a thousand years, the capital of Dongyi and the hometown of Wusong. It is adjacent to the Yellow River in the south, Shuicheng in the north, the German-Shanghai Expressway in the west, the Beijing-Kowloon High-speed Railway to the east, and the Beijing-Hangzhou Grand Canal running through the entire territory. The company integrates scientific research, production, and sales. It produces power cables, high-voltage cables, overhead cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables and other products. The production equipment, complete testing equipment, dozens of varieties and hundreds of specifications of products are sold well at home and abroad and are trusted by users.The company adheres to the brand strategy, exerts the advantages of the Yanggu cable brand, and the Ever bright Yanggu Yuanhui cable brand. All the staff wholeheartedly welcome you to come to the company for guidance and business negotiation!
SWA Armoured 4 Core XLPE Power Cable Aluminum Conductor 240mm XLPE Flexible Cable
SWA Armoured 4 Core XLPE Power Cable Aluminum Conductor 240mm XLPE Flexible Cable
SWA Armoured 4 Core XLPE Power Cable Aluminum Conductor 240mm XLPE Flexible Cable
FAQ
1. What is the minimum order quantity?
If you insist on buying one piece, or you only need one piece, we are likely to produce MOQ for you in batches.
2. How to get samples to check the quality? How long can I get the samples?
After the price is confirmed, samples can be provided for your evaluation. After confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, and arrive within 3-5 days.
3. Which payment method does your company accept?
We accept wire transfer, letter of credit, Western Union.
4. What are your company's shipping terms and delivery time?
20-30 days for bulk, 5-10 working days for inventory.
5.Do you have a discount?
We will do our best to provide you with these services at the best price and quality service
