PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
Specifications
Place of Origin :
Shandong, China
Brand Name :
Yuanhui
Model Number :
YJLV YJLV22 YJLV32
MOQ :
100 meters
Price :
$3.25/meters 100-999 meters
Certification :
ISO CCC CE
Payment Terms :
T/T
Supply Ability :
50000 meters per week
Delivery Time :
5-7 work days
Packaging Details :
Ironwood shaft packing
Insulation Material :
lszh XLPE
Type :
LOW VOLTAGE High Voltage Medium Voltage
Application :
Industrial construction underground power station
Conductor Material :
Aluminum
Jacket :
PVC
Size :
as requirments
Product name :
YJV YJV22 YJV23 XLPE Power Cable
Rated voltage :
1-35KV 0.6/1KV
Standard :
IEC 60227
Certificate :
ISO9001/CCC/CE
Core :
1/2/3/4/3+1/5/3+2/4+1
Package :
Iron-wooden Drum
Length :
Customized Meters
Armour :
SWA STA AWA ATA
Cross section :
1.5mm-600mm2
Sample :
Availaible
Description

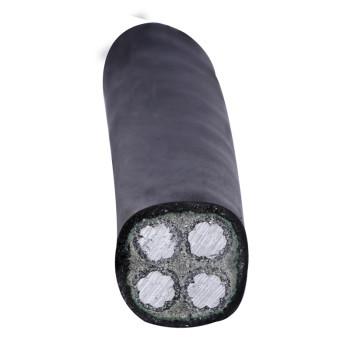

PVC sheath XLPE insulation Aluminium conductor Wire 6mm-35mm-400mm2 power Cable
Product Description
1. Conductor
The power cable features an aluminum conductor. Aluminum is a cost-effective choice for conductors while still providing good electrical conductivity. The cable is available in a range of sizes from 6mm² to 400mm², allowing for flexibility in different power transmission applications. Whether for smaller electrical installations or larger industrial setups, there is a suitable conductor size to meet specific requirements.
2. Insulation
The insulation material used is cross-linked polyethylene (XLPE). XLPE offers several advantages. It has excellent electrical insulating properties, ensuring the safe transmission of electricity. It can withstand high voltages and is resistant to heat, moisture, and chemical substances. This makes the cable suitable for a wide range of environments and applications.
For instance, in industrial settings where there may be exposure to heat, chemicals, or moisture, the XLPE insulation provides reliable protection and ensures the longevity of the cable.
3. Sheath
The cable is covered with a PVC (polyvinyl chloride) sheath. The PVC sheath serves multiple purposes. It provides mechanical protection to the cable, shielding it from external impacts, abrasion, and damage. It also offers some degree of resistance to environmental factors such as sunlight, oils, and solvents.
The PVC sheath makes the cable easy to handle and install. It is flexible and can be routed through various conduits and trays. Additionally, it can be color-coded for easy identification and organization.
4. Applications
This power cable is suitable for a wide range of applications. In residential settings, it can be used for electrical wiring in houses and apartments. In commercial and industrial areas, it can be employed for power distribution to buildings, factories, and machinery.
For example, it can be used to connect electrical panels to electrical equipment, supply power to motors and pumps, or provide power for lighting systems. The different conductor sizes allow for customization based on the specific power requirements of the application.
Specification

Norminal cross

section

 Reference overall diameter of cable Permissible A mpacily Reference weight of cable
A
In air In ground
MM² MM CU AL CU AL Kg/km
4X2.5 11.8 29 22 38 29 211 148
4X4 13.0 38 29 50 38 283 182
4X6 14.2 49 37 62 47 376 225
4X10 16.7 67 50 84 63 567 314
4X16 19.1 88 66 109 82 829 424
4X25 23.2 119 90 142 107 1249 618
4X35 25.5 146 110 170 129 1689 804
4X50 26.2 173 128 201 151 2146 916
4X70 28.9 218 164 245 185 2944 1219
4X95 32.5 271 201 294 223 3903 1559
4X120 35.9 315 234 333 253 4967 1956
4X150 40.2 366 272 374 321 6133 2413
4X185 44.4 422 315 421 481 7600 3008
4X240 49.4 486 377 489 425 9743 3784
4X300 56.0 569 440 555 12271 4716
4X400 67.9 686 628 16248

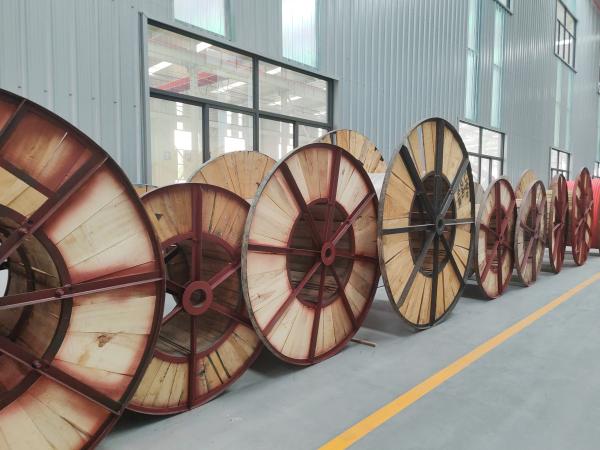

Packing & Delivery
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

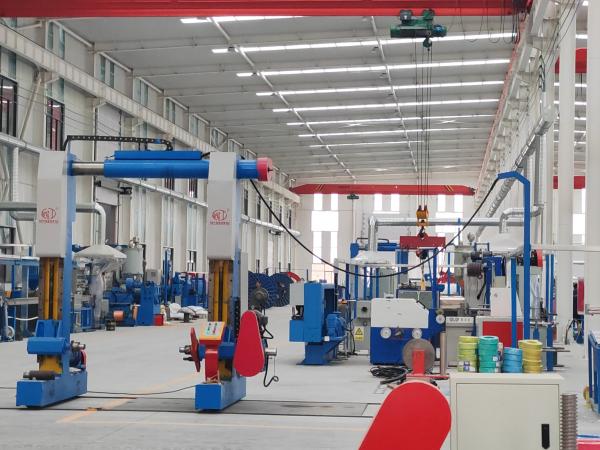

Company Profile
Shandong Jinyu Cable Co., Ltd. is located in Yanggu, the ancient city of a thousand years, the capital of Dongyi and the hometown of Wusong. It is adjacent to the Yellow River in the south, Shuicheng in the north, the German-Shanghai Expressway in the west, the Beijing-Kowloon High-speed Railway to the east, and the Beijing-Hangzhou Grand Canal running through the entire territory. The company integrates scientific research, production, and sales. It produces power cables, high-voltage cables, overhead cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables and other products. The production equipment, complete testing equipment, dozens of varieties and hundreds of specifications of products are sold well at home and abroad and are trusted by users.The company adheres to the brand strategy, exerts the advantages of the Yanggu cable brand, and the Ever bright Yanggu Yuanhui cable brand. All the staff wholeheartedly welcome you to come to the company for guidance and business negotiation!
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
PVC Sheath XLPE Insulation Aluminium Conductor Wire 35mm 400mm2
FAQ
1. What is the minimum order quantity?
If you insist on buying one piece, or you only need one piece, we are likely to produce MOQ for you in batches.
2. How to get samples to check the quality? How long can I get the samples?
After the price is confirmed, samples can be provided for your evaluation. After confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, and arrive within 3-5 days.
3. Which payment method does your company accept?
We accept wire transfer, letter of credit, Western Union.
4. What are your company's shipping terms and delivery time?
20-30 days for bulk, 5-10 working days for inventory.
5.Do you have a discount?
We will do our best to provide you with these services at the best price and quality service
