TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable
TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable
TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable
TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable
TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable
TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable
Specifications
Brand Name :
Sixpence
Model Number :
EVcable-type2 GBT
Certification :
CE , TUV ,CB,UKCA
Place of Origin :
Sichuan, China
MOQ :
2pieces
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 working days
Packaging Details :
packing: Standard export carton box
Product name :
Type 2 EV charging cable
Application :
Electric Vehicle Car Charging
Rated current :
16A/32A
Phase :
Single phase/Three phase
Color :
Customized Color
Rated voltage :
AC220V-250V,AC380V
Logo :
customized
Cable length :
5m or customized
Description

TUV,CE,UKCA,CB Type2 to Type2 Gun Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable


Technical parameters


name Type 2 EV charging cable
Application: Electric Vehicle Car Charging
Rated current: 16A/32A
Phase: Single phase/Three phase
Output Voltage Range: 220±20%VAC
Rated voltage: AC220V-250V,AC380V
MTBF: MTBF≥10000h
Mechanical Life: ≥10000 times
Surge Protection: Lightning protection


Product Description


Type 2 EV charging cable desin

  • Features an elegant design with an ergonomic grip for enhanced comfort.

  • The connector housing utilizes riveting and pressing technology, ensuring a seamless appearance with no exposed rivets.

  • Designed with a dual-color adhesive shell, allowing for personalized customization.



Type 2 EV charging cable paramenters

  • Offers high protection levels, operating reliably up to IP55.

  • Durable mechanical lifespan, with no-load plug-in/out cycles exceeding 10,000 times.

  • Built to withstand impact, capable of enduring a 1-meter drop and vehicle run-over pressure.

  • Constructed with thermoplastic housing, featuring a flame retardant rating of UL94 V-0.

  • Terminals made of copper alloy with silver plating for enhanced conductivity.




Type 2 EV charging cable advantage

- Universal Compatibility: Type 2 connectors are widely used across various EV models and charging stations, making them a versatile and standardized choice.
-Faster Charging: Type 2 cables support 3-phase charging, allowing for faster charging speeds compared to older single-phase Type 1 cables.
-Safety Features: Equipped with advanced safety features, Type 2 connectors help prevent overheating, overcharging, and
electrical hazards.
-Enhanced Durability: Type 2 cables are designed for regular, long-term use, with sturdy materials that ensure longevity and reliability in various weather conditions.
These features make the Type 2 EV charging cable a popular and reliable option for both residential and public charging.


Type 2 EV charging cable model

16A /Single phase 3X2.5mm²+1X0.75mm² TPU,Φ10.5
16A /Three phase 5X2.5mm²+1X0.75mm² TPU,Φ13.5
32A /Single phase 3X6mm²+1X0.75mm² TPU,Φ13.5
32A /Three phase 5X6mm²+1X0.75mm² TPU,Φ16.6

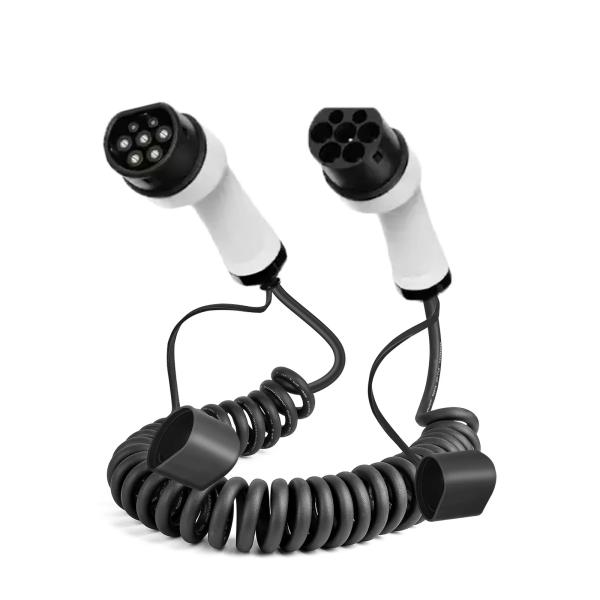

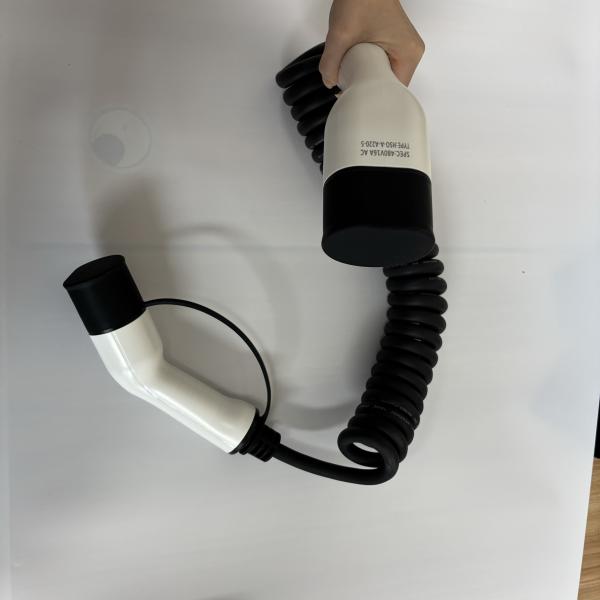

Type 2 EV charging cable photo details


TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable

TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable


TUV,CE,UKCA,CB Type2 to Type2 Cable EV Charging Cable Type 2 Dual Gun Charger Fast Charger Normal Cable





FAQ

Q1:What is the warranty?
A1:12 months. In this period, we will supply technical support and replace the new parts by free,
customers are in charge of delivery.
Q2:What is your terms of packing?
A2:Generally, we pack our goods in brown cartons. If you
have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3:What is your terms of trade?
A3:EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q4:How about your delivery time?
A4:Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
