New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use
Specifications
Brand Name :
Sixpence
Certification :
CE
Place of Origin :
Sichuan, China
MOQ :
1 pieces
Price :
$415/Piece
Payment Terms :
T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
55X55X23 cm; 21kg
Product Name :
CCS2 Plug with Cable
Rated current :
80A/150A/200A
Rated voltage :
1000V
Standard :
CCS2/IEC62196-2 Standard
cable diameter :
30±0.8 mm
Material :
Thermoplastic
Warranty :
1 Year
Ambient Temperature :
-35°C~+50°C
Durability :
10000cycles(unloaded)
Description

New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use

New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use

80-200A CCS 2 Plug DC Fast Charging COMBO 2 Connector

  • Rated current: 80A/150A/200A
  • Rated voltage: 1000V DC
  • Operation Temp.:-35°C~+50°C
  • IP protection class: IP 55
  • Product description: This 200A CCS Combo 2 charging connector meets the European standards, can be used on the DC charging station to charge the electric vehicles with CCS Combo 2 Sockets.

New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use

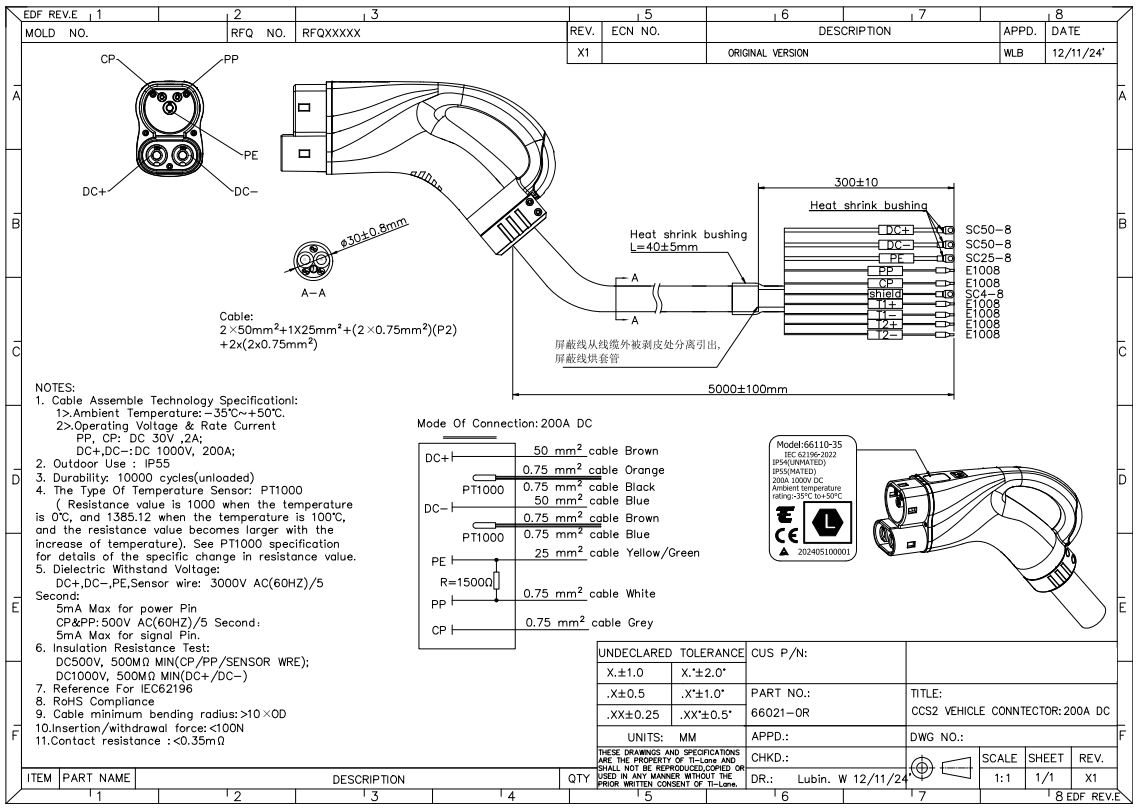

Model selection and the standard wiring

  • 150Amp 2 X 50mm²+1 X 25mm² +6 X 0.75mm²

CCS Combo 2 DC Charging Plug Features

  • This 200A CCS2 DC Charging connector is CE, TUV,CB,UCKA certificated. is safe and reliable.
  • This 200A DC EV Charging Connector is equipped with various built-in safety mechanisms to protect electric vehicles and charging infrastructure.
New Sixpence CCS2 DC 80A 150A 200A 7 Meters EV Fast Charging Cable for EV DC Charging Station Use

Product Type

Connector Type Mounting Type Cable Mount
Rated Type DC Power Phase
Shell Material Themoplastic Contact Material Copper Alloy
Contact Finish Silver Plating Wire Gauge 2X50mm²+1X 25mm²+ 6 X 0.75mm²

Electrical

Rated Current 80A//200A Rated Voltage 1000V
Contact Resistance 0.5MΩ MAX Insulation Resistance
Operating Voltage 1000V DC Withstand Voltage 3200V

Standards and Specifications

Charging Standards IEC 62196-3

Environmental

Flammability UL94 V-0 Ingress Protection IP54
Operating Temperature -35℃~50℃

Mechanical

Mating Cycles ≥10000
