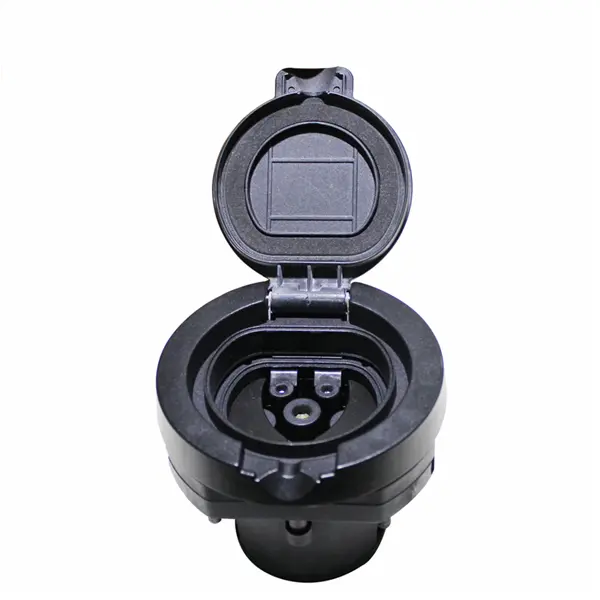

Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V,/415V Max 22KW IEC62196-2 EV Accessories
Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V,/415V Max 22KW IEC62196-2 EV Accessories
Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V,/415V Max 22KW IEC62196-2 EV Accessories
Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V,/415V Max 22KW IEC62196-2 EV Accessories
Specifications
Rated current :
16A / 32A
Brand Name :
Evoyage
Model Number :
EV32AP
Place of Origin :
Sichuan, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
18.5X14.5X9 cm;1.000 kg
Product Name :
AC Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V, Single Phase or 415V,Three Phase Max 22KW Type 2 IEC62196-2 Connector Car Accessories
Rated voltage :
250V AC, Single Phase or 415V AC, Three Phase for option
Standard :
IEC62196-2/Type 2
Description

AC Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V, Single Phase or 415V,Three Phase Max 22KW Type 2 IEC62196-2 Connector Car Accessories

Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V,/415V Max 22KW IEC62196-2 EV Accessories

16A 32A Type 2 EV AC Charging Inlet/Socket With Shutter Obturator For EV Charging Station

  • Rated current: 16A/32A Three Phase
  • Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option
  • Operation Temp.:-30℃ ~ + 50℃
  • IP protection class: IP 54 ( working condition)
  • Product description: This Type 2 AC Charging Inlet Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.

Type 2 Socket With Shutter Obturator For EV Charging Station 16A 32A 250V,/415V Max 22KW IEC62196-2 EV Accessories

Model selection and the standard wiring

  • 16A Single phase; 3 X 2.5mm² + 2 X 0.5mm²
  • 16A Three phase: 5 X 2.5mm² + 2 X 0.5mm²
  • 32A Single phase;3 X 6mm²+ 2 X 0.5mm²
  • 32A Three phase;5 X 6mm²+ 2 X 0.5mm²

Type 2 socket(shutter) Features

Mode 2 charger conforms to the provisions and requirements of NFC61-314.

Type 2 socket 32a and 16a match with Hella actuator locking device.

Have one or two PTC (PT1000) thermistor (can match with NTC or Temperature control switch).

Our ev socket with beautiful appearance and prevention cap, which can be installed on the left side, the right side or the front of it.

Reliable material, flame retardant, pressure proof, wear-resisting, vimpact resistance, high oil proof.

Excellent protection performance, protection grade achieved IP55 (working condition) .

Type 2 socket(shutter) Applies to Vehicle

This type 2 ev charging socket has wide applications. For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV.
