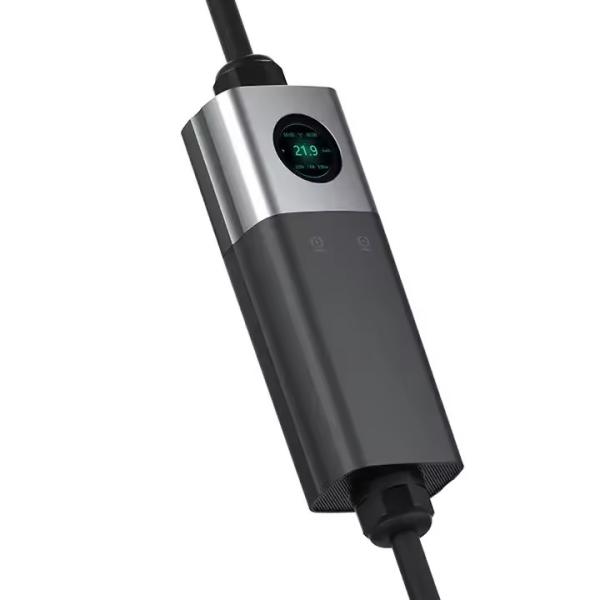

40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
Specifications
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
10 x 44 x 32 cm; 3Kilograms
Brand Name :
Evoyage
Model Number :
EV32AP
Place of Origin :
Sichuan, China
Product Name :
40A 9.6KW Tesla Ev Charger 3.5kw 7kw 11kw 22KW 16A/32A For Model 3 X Y Type1 Type2 GBT Electric Car Portable
Phase :
1 or 3
Max output power :
3.5kw/7kw/9.6kw/11kw/22kw
Output current :
16A/32A/40A
Output voltage :
220V-400V
Interface Standard :
IEC62196-2/GBT 20234/SAE J1772/GBT
Description

40A 9.6KW Tesla Ev Charger 3.5kw 7kw 11kw 22KW 16A/32A For Model 3 X Y Type1 Type2 GBT Electric Car Portable

40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55

40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55

40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55

Press and hold the left button for 2 seconds toenter the current setting interface, then shortpress the left button to switch the current level.
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55


1.Press and hold the riaht button for 2 seconds until 00:00in the upper left corner flashes, press the left switch theappointment charging/power off time setting options, andpress the right button to adjust the cumulative increasetime number.
2.The upper left corner of the LCD shows 00:00 as thescheduled charging time; the upper right corner shows00:00 as the scheduled power-off time.
40A 9.6KW Portable Tesla Electric Car Charger 3.5kw 7kw 11kw 22KW 16A / 32A IP55
Phase 1 Phase 3 Phase 3 Phase 1 Phase
Max output power 3KW 3.5KW 7KW 11KW 22KW 9.6KW
Input voltage AC 220V / AC 230V AC 400V AC 400V AC 240V
Input V frequency 50Hz/60Hz
Output voltage AC 220V / AC 230V AC 400V AC 400V AC 240V
Output current 13A 16A 32A 16A 32A 40A
Adjustable power The plug comes with temperature detection and maximum output power recognition. The current can be adjusted downwards.
Efficiency ≥98
Insulation resistance ≥10MΩ
RCD GBT: TypeA; Type 2: TypeA+DC6mA; Type 1: CCID20
Working temperature -30℃～+50℃
Storage temperature -40℃～+80℃
Ambient humidity 5% ～95% No condensation, no condensation
Altitude No more than 2000 meters
Status indicator LED Indicator / LCD(Optional)
Display screen 2.8 -inch LCD(Optional)
Startup mode Plug and Charge
Comm. method WIFI/Bluetooth(Optional)
Charging port GB/T ; J1772 Type1; Type2; Tesla
Protection class IP66,IK10
Safety protections Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant
protection, overcurrent protection, intelligent temperature control protection, etc.
Energy meter ≥1.0 Level (Networked devices have)
Cable Length 5 Meters(Customizable length)
Weight Depending on the length of the cable, the weight is different
