CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
CLMQ Quarter Turn Actuator
Specifications
Brand Name :
ChengLei
Model Number :
CLMQ
Certification :
CCC, ISO, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
30000/Year
Description

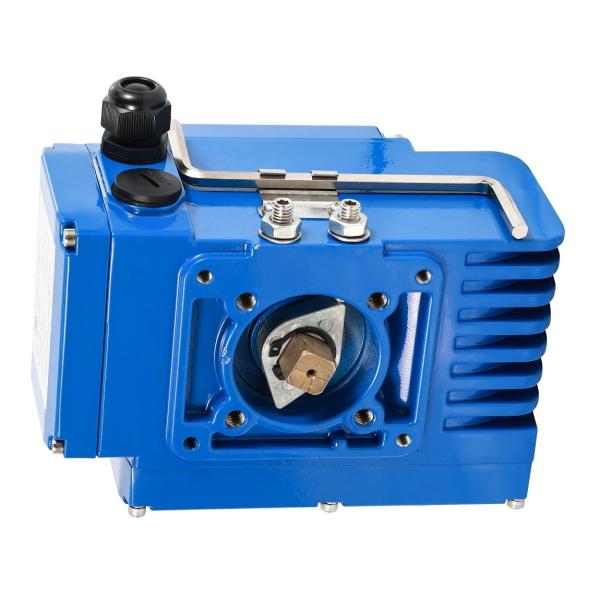

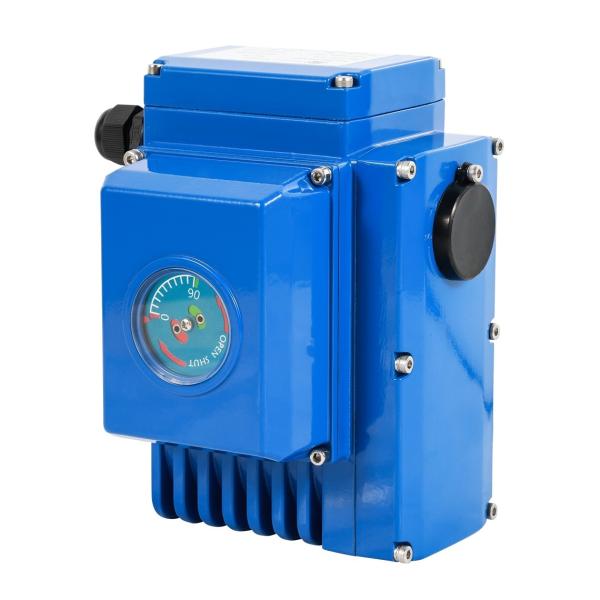

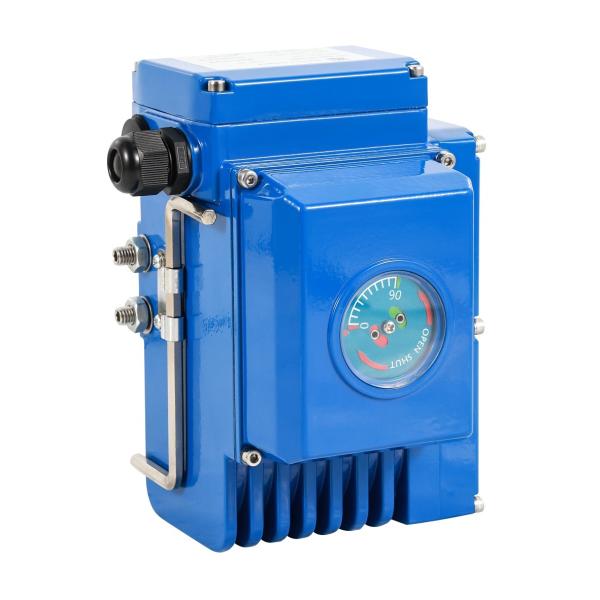

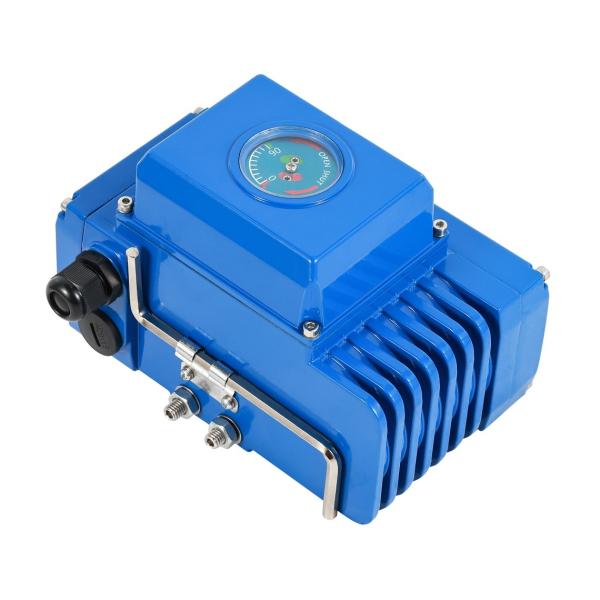

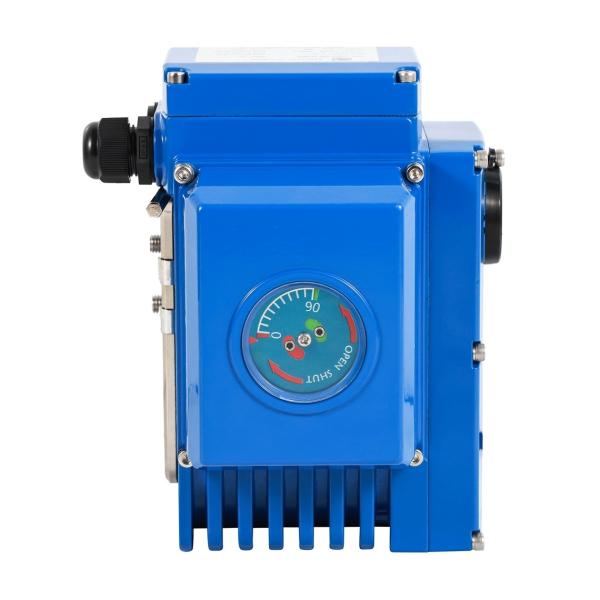

CLMQ Quarter Turn Actuator

Suitable for rotary valves such as butterfly valves and ball valves

Technical parameters of electric actuator

Model 220V power(W) Max.torque(N.m) On-off time(S)50Hz ISO5211 Stem connection size(mm) Stem height(mm) Weight(Kg)
AC110V,AC220V,DC24V AC110V,AC220V DC24V
MQ05 6 50 25 13 F03/F05/F07

□9

□11

□14

 ≤18 2
MQ10 25 100 28 14 F05/F07

□11

□14

□17

 ≤23 4.5
MQ60 90 600 28 14 F07/F10

□17

□19

□27

 ≤32 10
CLMQ Quarter Turn ActuatorCLMQ Quarter Turn ActuatorCLMQ Quarter Turn ActuatorCLMQ Quarter Turn ActuatorCLMQ Quarter Turn Actuator
