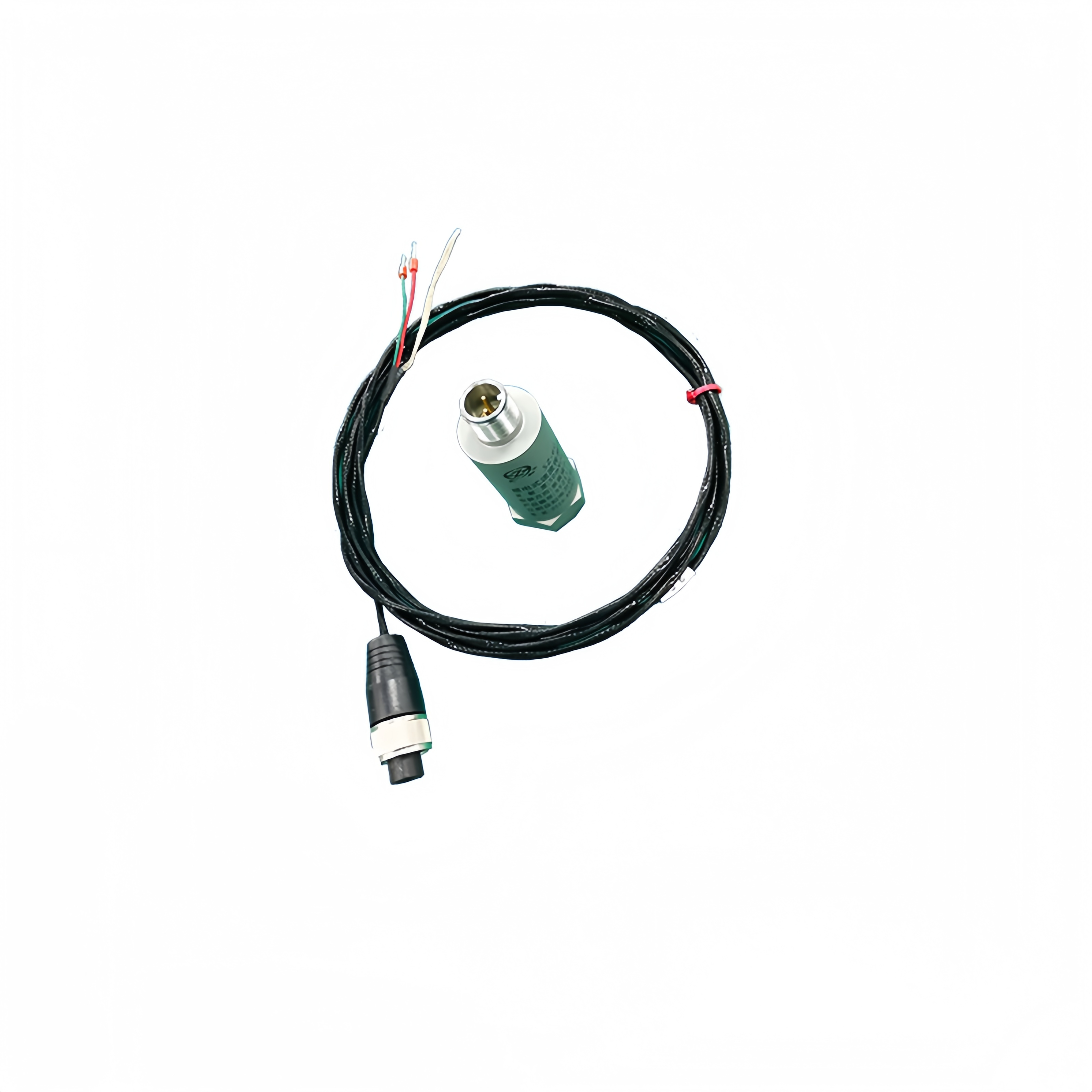

Zhong he SZ-6G Magnetoelectric Velocity Sensor
Zhong he SZ-6G Magnetoelectric Velocity Sensor Anti-interference Vibration Velocity Sensor
The SZ series magnetoelectric velocity sensor is designed for measuring vibration in bearing covers of various rotating machinery including steam turbines, compressors, fans, and pumps. This electromagnetic sensor generates voltage through moving coil cutting magnetic lines of force, requiring no external power supply during operation and offering easy installation.
Key Features
  • Output signal proportional to vibration velocity for high, medium, and low-frequency vibration measurement
  • Low output impedance with excellent signal-to-noise ratio
  • No special requirements for output plugs and cables
  • Friction-free moving parts design for high flexibility and precise measurement of minute vibrations (0.01mm)
  • Resistance to lateral vibration (up to 10g peak value)
  • Suitable for measuring bearing housings, casings, or structural vibrations
  • Stainless steel housing with laser welding technology for IP65 protection rating
Technical Specifications
Sensitivity
Model Sensitivity Error
SZ-2 30mV/mm/s ±5%
SZ-6 50mV/mm/s ±5%
SZ-4V, SZ-4H 28.5mV/mm/s ±5%
SZ-6G 50mV/mm/s ±5%
SZ-6E 40mV/mm/s ±5%
Test Conditions: 20℃ ±5℃, 80Hz, 10mm/s speed
Performance Parameters
Parameter Specification
Amplitude Limit ≤ 2000μm (peak-to-peak)
Frequency Response SZ-2: (10～500)Hz; SZ-6, SZ-6G, SZ-6E, SZ-4V, SZ-4H: (4～1000)Hz
Maximum Acceleration 10g
Measurement Direction SZ-2, SZ-6, SZ-6G, SZ-6E: Vertical or Horizontal; SZ-4V: Vertical; SZ-4H: Horizontal
Operating Temperature (-30～120)℃
Relative Humidity ≤ 95%RH (non-condensing)
Physical Specifications
Dimension Weight
Φ35*76mm Approx. 200g
Operating Environment
No strong magnetic fields, no corrosive gases or liquids
