Specifications
Brand Name :
Zhong he
Model Number :
BSQ011d
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Packaging Details :
New original box
Description

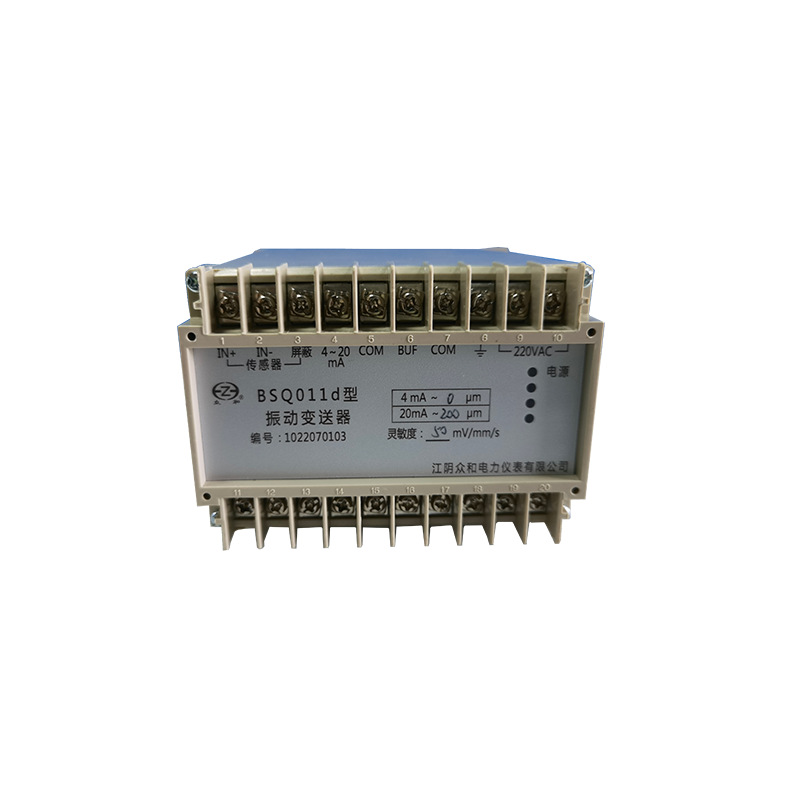

Zhong he BSQ011d 4-20mA Vibration Transmitter for Condition Monitoring
Zhong he BSQ011d 4-20mA Vibration Transmitter for Condition Monitoring
Vibration measurement is an essential monitoring and protection device for various large rotating machinery. The input signal comes from the SZ series magnetoelectric velocity sensor, enabling continuous monitoring and measurement of absolute peak-to-peak vibration or vibration velocity in bearings of various rotating machinery. The system outputs analog current or voltage, alarm, shutdown, and sensor buffer signals, and can be easily integrated with DCS, PLC systems, and paperless recorders.
Applications
Vibration monitoring and protection for rotating machinery including steam turbines, compressors, and fans.
Technical Specifications
Model Power Supply Input Signal Measuring Range Frequency Range Current Output Alarm Output
BSQ011a DC+24V SZ-6 Magnetoelectric Speed Sensor Any range within (0～500)μm 10～500Hz (4~20)mA or (0~10)mA
Accuracy: ±1.0% of full scale
Maximum Load: 500Ω		 Maximum 2 points
BSQ011b AC220V None
BSQ011c DC+24V Maximum 2 points
BSQ011d AC220V None
BSQ015a DC+24V Any range within (0~50)mm/s Maximum 2 points
BSQ015b AC220V None
BSQ015c DC+24V Maximum 2 points
BSQ015d AC220V None
Alarm Output Specifications
Any setting within full scale, LED alarm indication, relay switch output (normally open and normally closed contacts), Capacity 28VDC/2A, 250VAC/1A
Buffer Output
The sensor's raw signal output, convenient for on-site vibration analysis
Operating Environment
Environment: Non-corrosive, non-magnetic field environments
Operating Temp: (0~50)℃
Storage Temp: (-40~60)℃
Humidity: (20~90)% (non-condensing)
Physical Specifications
Dimensions: W 100 mm × H 72 mm × D 113 mm
Weight: Approximately 350g
