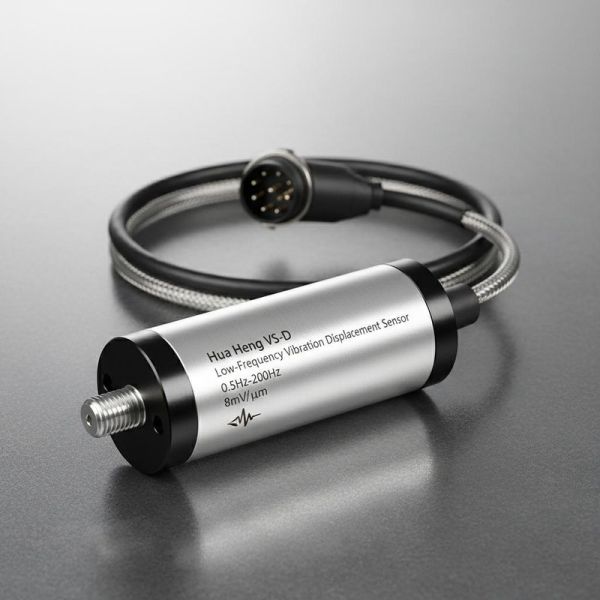

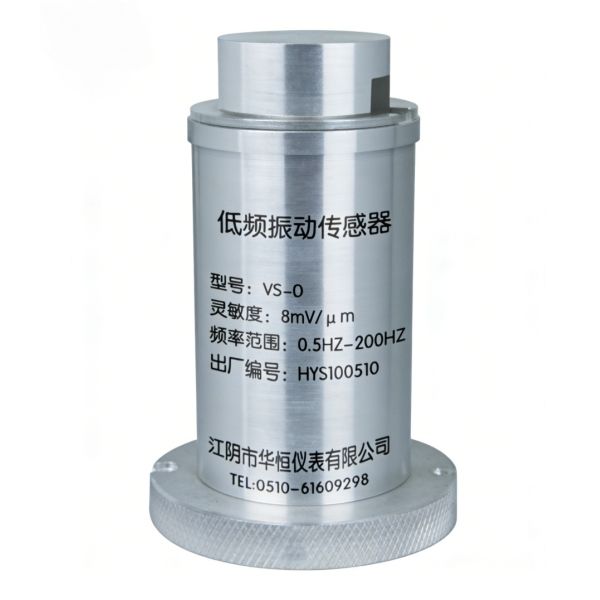

Hua Heng VS-D Low-Frequency Vibration Displacement Sensor
Product Overview
The VS-D low-frequency vibration displacement sensor is an advanced inertial sensor designed for precision measurement applications. Utilizing magnetoelectric induction principles, it converts vibration signals into electrical signals, which are then integrated and amplified to deliver accurate displacement data.
Key Applications
Ideal for: Hydraulic turbine units, low-speed transmission machinery (including coal mills), and engineering structures such as dams and bridges requiring ultra-low frequency vibration monitoring.
Technical Specifications
Frequency Response Range 0.5Hz to 200Hz (-3dB)
Sensitivity 8mV/μm ±5% (customizable per user requirements)
Maximum Measurement Range ±1mm
Output Type -10V to +10V AC
Amplitude Linearity <3%
Power Supply ±12VDC
Operating Environment -30℃ to 100℃, humidity ≤95% (non-condensing)
Weight 250g

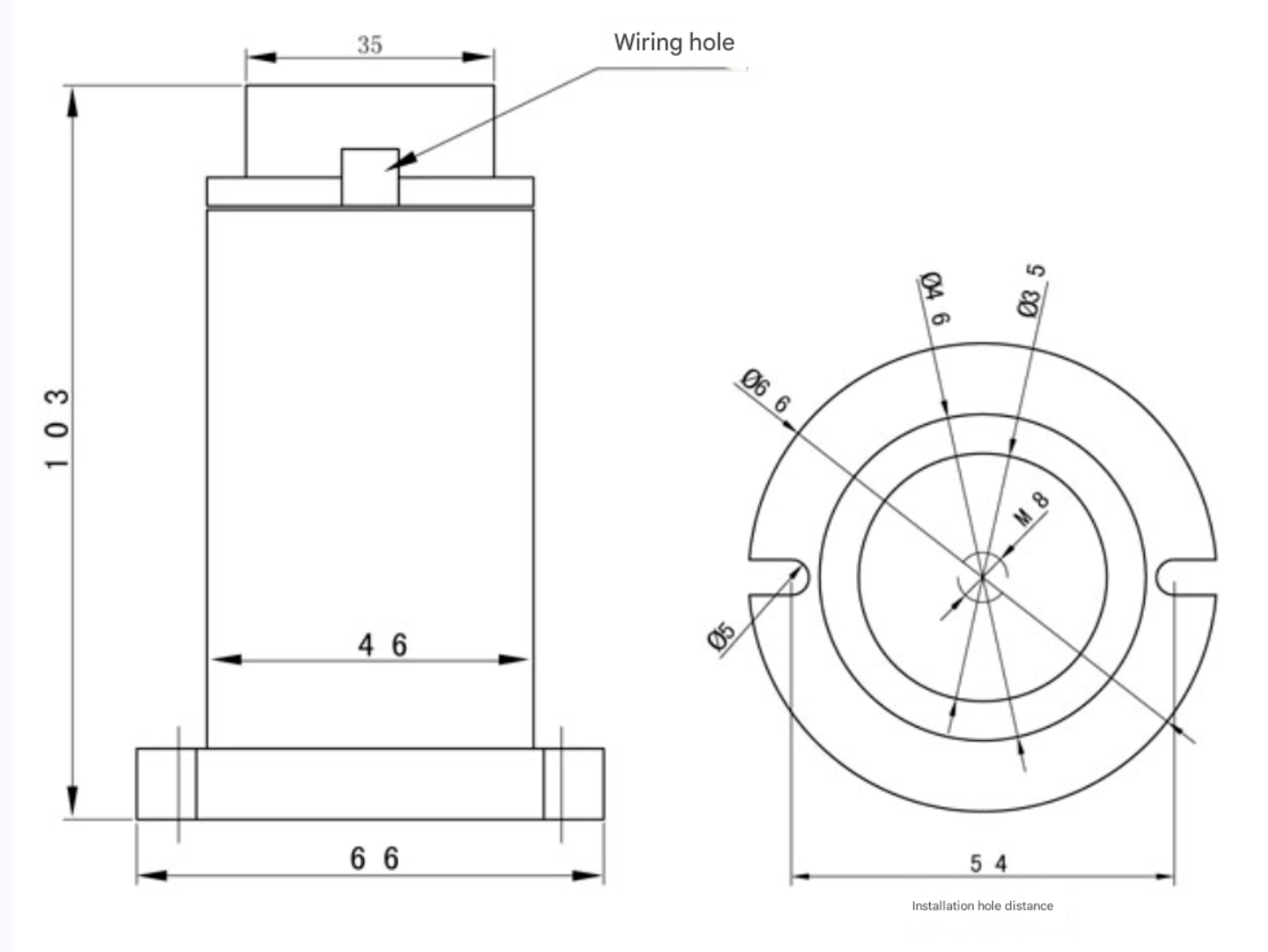

Overall Dimensions Φ66mm × 103mm
Installation Method Fixed with 2 screws on circumferential angle of Φ56
Key Features
Magnetoelectric induction principle for reliable signal conversion
Integrated amplification circuit for precise displacement measurement
Robust construction with magnetic circuit system and damping spring
Wide operating temperature range for industrial environments
Compact design with straightforward installationHua Heng VS-D Low-Frequency Vibration Displacement Sensor with 0.5Hz-200Hz Range and 8mV/μm Sensitivity for Ultra-Low Frequency Measurements
