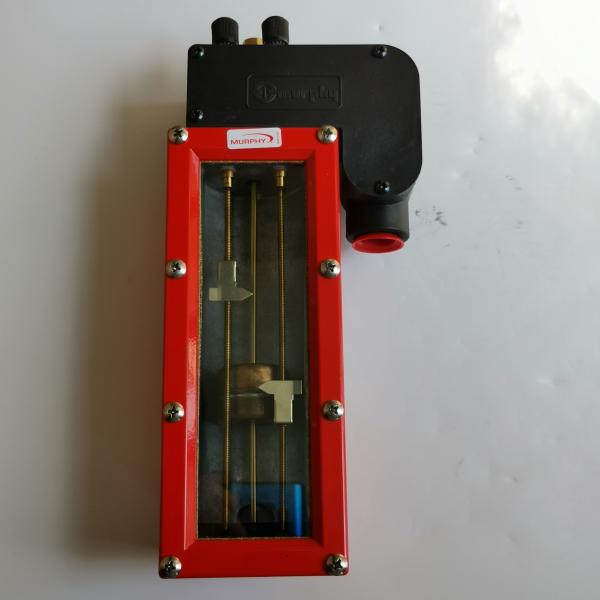

Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa
Specifications
Brand Name :
Mofei
Model Number :
L129CK1
Place of Origin :
USA
MOQ :
1
Price :
Negotiations
Packaging Details :
New original box
Maximum work pressure :
10psi（68,9kPa）
Process connection :
1/2NPT
Float material :
brass
Shell material :
die-cast aluminum
Description

Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa

Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa


The L129 series is used to check the lubricating oil level without stopping the engine, pump, and compressor. It is a combination indicator gauge with low and high limit switches and float operation.

The L129 series lubricating oil level measuring instrument is a combination of indicator measuring tools and adjustable low and high limit switches. It can prevent low fuel levels or high fuel levels caused by overflow or fuel or water infiltration into the crankcase.

A 6-3/4 inch (171 mm) deep sight gauge allows you to check the condition and level of oil without turning off the device.

Fingertip adjustable limit contacts, with a range of 4-7/8 inches (122 mm), make it easy to set high and low limit contacts. If the float touches the high or low limit contact, it will complete a normally open circuit, which can activate an alarm and/or shut down the device.

The L129 series has two models: L129 and L129CK1. The L129 model is designed specifically for grounding low-voltage electrical systems. It has a single wire to ground circuit. L129CK1 is designed specifically for applications that require a three wire ground circuit. It has ungrounded contacts and conduit hubs to protect wires. Both models offer options.

If installed and maintained properly, the L129 series lubricant level Swichgauge can monitor and protect the engine and pump from improper lubrication levels, which can lead to widespread damage.

The L129 series is recommended for engines and pumps with large crankcase capacities.
