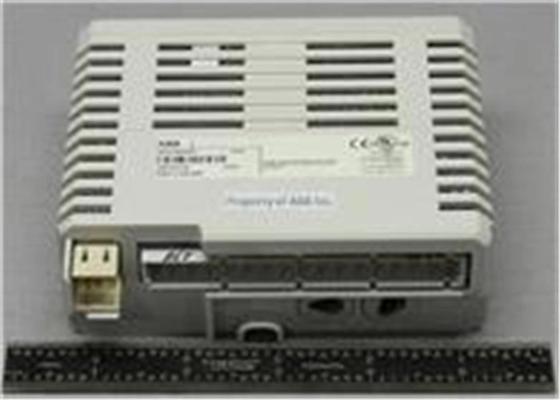

ABB AI843 TC/mV Analog Input Module 3BSE028925R1 -30 mV to +75 mV
ABB AI843 TC/mV Analog Input Module 3BSE028925R1 -30 mV to +75 mV
ABB AI843 TC/mV Analog Input Module 3BSE028925R1 -30 mV to +75 mV
ABB AI843 TC/mV Analog Input Module 3BSE028925R1 -30 mV to +75 mV
Specifications
Brand Name :
ABB
Model Number :
AI843
Place of Origin :
India (IN)
MOQ :
1
Price :
Negotiations
Delivery Time :
2-3 working days
Packaging Details :
New original box
Rated Insulation Voltage :
50V
Dielectric Test Voltage: :
500VAC
Current Consumption +5 V Modulebus :
70mA
Power Dissipation :
1.6W
Description



The AI843 Thermocouple/mV Input Module provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, L, N, R, S, T and U. A separate Pt100 channel is used for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...8.

The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device. Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or a junction temperature set by the application.

Features and benefits

  • 8 differential input channels for thermocouple/mV
  • Single or redundant operation
  • A separate channel is used as CJ-channel (4-wire Pt100 RTD)
  • Variety of thermocouples with the following characteristics: B, C, E, J, K, L, N, R, S, T and U
  • 16 Bit resolution (A/D converter)
  • Inputs are monitored for wire-break open-circuit


General info
Type Analog Input
Signal specification -30..75 mVlinear, TC types B, C, E, J, K, L, N, R, S, T and U
Article number 3BSE028925R1
Number of channels 8
Signal type See table
HART No
SOE No
Redundancy Yes
High integrity No
Intrinsic safety No
Mechanics S800



Detailed data
Resolution 16 bits
Input impedance > 1 MΩ
Isolation Groupwise isolated from ground
Error Max. 0.1%
Temperature drift Typ. 10 ppm/°C, Max. 25 ppm/°C
Input filter (rise time 0-90%) 1.1 kHz
Update cycle time 320 + 80 * (no of active channels) ms at 50 Hz 267 + 67 * (no of active channels) at 60 Hz
Maximum field cable length 600 meters (656 yards) or max. 500 Ω
CMRR, 50Hz, 60Hz 100 dB
NMRR, 50Hz, 60Hz > 40 dB
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation 1.5 W
Current consumption +5 V Modulebus 60 mA
Current consumption +24 V Modulebus 50 mA
Current consumption +24 V external 0



Diagnostics
Front LED’s F(ault), R(un), W(arning)
Supervision Module error: reference channels outside limits, power supply low
Channel error: open-circuit,
CJ channel error (ch 8): out of range <-40°C (-40°F) and >100°C (212°F)
Junction channel)
Channel error Linear: none
Status indication of supervision Module Error, Module Warning, Channel error



Environment and certification
CE mark Yes
Electrical safety IEC 61131-2, UL 508
Hazardous Location C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification -
Protection rating IP20 according to IEC60529
Corrosive atmosphere ISA-S71.04 G3
Climatic operating conditions 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree Degree 2, IEC 60664-1
Mechanical operating conditions IEC/EN 61131-2
EMC EN 61000-6-4 and EN 61000-6-2
Overvoltage categories IEC/EN 60664-1, EN 50178
Equipment class Class I according to IEC 61140; (earth protected)
Max ambient temperature 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance EN 50581:2012
WEEE compliance DIRECTIVE/2012/19/EU
