SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
Specifications
Brand Name :
SICK
Working voltage UB :
10 V DC... 30 V DC 1)
Maximum switch distance :
3000 mm
Signal voltage NPN high/low level :
approximately UB/<2.5 V
Residual ripple :
≤ 5 VSS
Place of Origin :
OEM
Switching frequency :
200 Hz 3)
Signal voltage PNP high/low level :
Approximately UB-2.5 V/0 V
Minimum triggering sensing distance :
30 mm
Process data length :
16 bits
Cycle time :
2.3 ms
MOQ :
1
Price :
Negotiation
Output current Imax :
≤ 100 mA
Packaging Details :
New original box
Repetitive accuracy (response time) :
150 µs
Model Number :
WTB26I-1H162420A00
Description

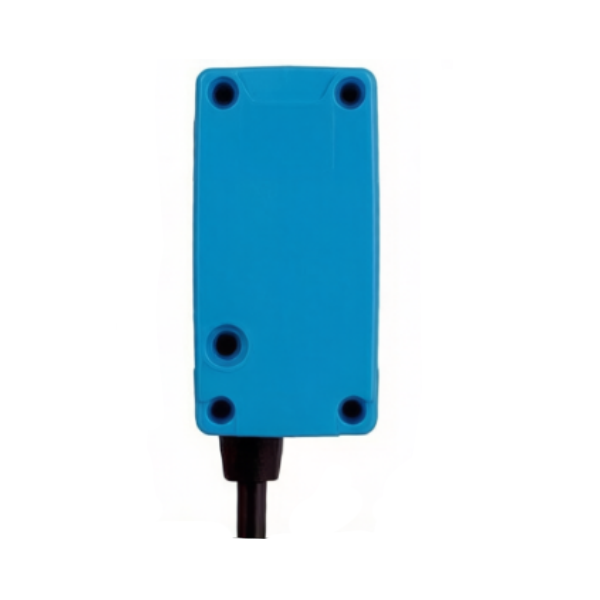

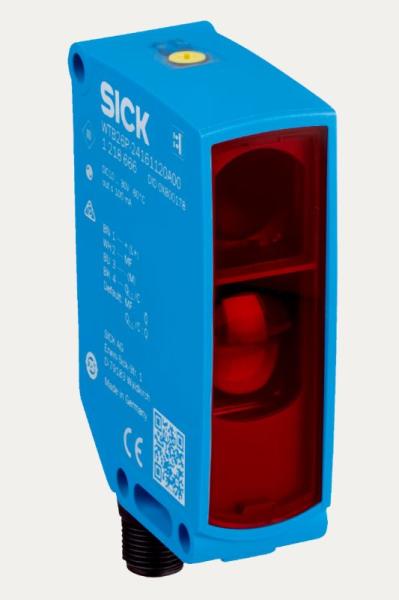

SICK WTB26I-1H162420A00 Industrial Optical Sensor

The SICK WTB26I-1H162420A00 is a professional diffuse reflection optical sensor with advanced background suppression, specifically designed for long-distance industrial detection applications. As part of SICK's versatile W26 series, this sensor utilizes high-stability infrared LED technology to deliver superior anti-interference performance in demanding automated industrial environments.

Key Features
  • Ultra-wide adjustable detection range: 30mm to 3000mm
  • Advanced background suppression technology
  • High-stability infrared LED light source
  • Flexible push-pull output (PNP/NPN dual-compatible)
  • IO-Link V1.1 smart communication capability
  • Durable 2-meter 4-wire cable outlet structure
  • Premium VISTAL® engineering plastic housing
  • Sealed structure resistant to dust, water, and chemical corrosion
Technical Specifications
Detection Range 30mm to 3000mm
Light Source Infrared LED
Output Type Push-pull (PNP/NPN compatible)
Communication IO-Link V1.1
Cable Length 2 meters
Housing Material VISTAL® engineering plastic
Performance Benefits

The sensor's focused infrared beam minimizes light diffusion and ambient light interference, ensuring accurate operation in various lighting conditions. Its optimized threshold calibration enables stable detection of low-contrast, dark, and thin workpieces. The intuitive teach-in adjustment design allows for quick parameter calibration without specialized tools, significantly improving commissioning efficiency.

Industrial Applications

This sensor is ideal for demanding industrial environments including:

  • Logistics conveying systems
  • Heavy machinery manufacturing
  • Warehousing automation
  • Automotive production lines
  • Long-range object presence monitoring
  • Inventory position detection
  • Large workpiece positioning
  • Conveyor material inspection

Engineered for long-term industrial endurance, the WTB26I-1H162420A00 offers stable signal output, minimal detection deviation, and excellent anti-vibration performance. Combining ultra-long detection distance, industrial durability, and digital intelligence, it represents a high-value solution for modern long-distance automated sensing applications.
