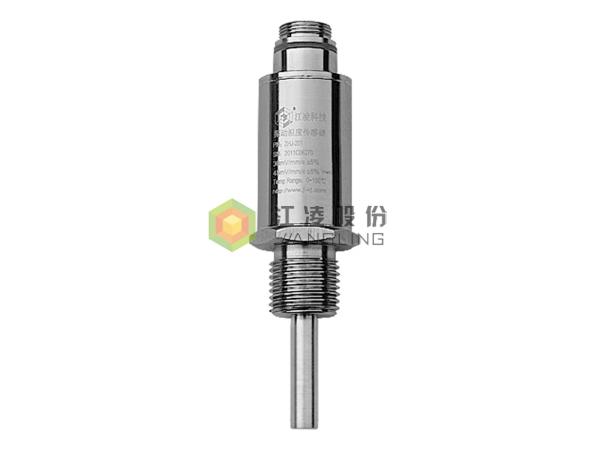

20mm Probe Stain Steel Vibration Temperature Sensor ZHJ-201
20mm Probe Stain Steel Vibration Temperature Sensor ZHJ-201
Specifications
Brand Name :
JIANGLING
Model Number :
ZHJ-201
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
15 days after signing the contract
Packaging Details :
Wooden box packing
Outline dimension :
φ32.5mm×100mm
Material :
Stain steel
Probe insert depth :
1：20mm 2：40mm 3：60mm* 4：80mm 5：100mm 6：120mm
Working temperature :
-10～100℃
Relative humidity :
≤90%
Description

ZHJ-201 Vibration temperature sensor

System description

• disc type

• can monitor the vibration and temperature values on the same site at the same time
• high intelligent , all functions under entire panel operation

• SS case

Technical parameters

Order No. Description
Measurement range To the oerder guide
Outline dimension φ32.5mm×100mm(insert depth )
Mounting hole position size To the oerder guide
Environment temperature -10～100℃ relative humidity : ≤90%

Order Guide:

Order No. Probe type A Probe insert depth B Cable length C Expand D
ZHJ-201-
vibration temperature sensor

1:M27×2.0*
2:M22×1.5
3: special requirement

 1:20mm 2:40mm
3:60mm* 4:80mm
5:100mm 6:120mm
n:special requirement

1:2m metal shielding

2:5m metal shielding
3:10m metal shielding

4:2m No metal shielding *
5:5m No metal shielding

6:10m No metal shielding
n:special requirement

0:NO

Note : special requirements for selection to describe specific requirements .
