NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace

Introduction:

NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is designed and manufactured in accordance with EN ISO1182 standard, it is mainly for building products testing.
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is mainly used in the non-combustibility test for building materials, and is suitable for classification of combustion performance of Class A fireproof materials.
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is also comply to BS 476-4 & 11 and IMO FTP Part 1 standards. So it can also test UK building materials, railway materials and non-metallic products of vessel.
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is suitable for both composite products and materials of the components testing.

Features:

• NCF Non Combustion Test Equipment Real Picture: measures in-combustibility and combustibility of uniform building material and non-uniform building material of actual element.
• The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.
• Single Zone Furnace operable at up to 900 oC with the Kanthal Ribbon Heater.
• 750±5oC temperature automatically control by PID and Power controller.
• Provided with stabilized voltage supply for more quick temperature stabilization.
• Equipped with 3 thermocouples, for temperature in furnace, specimen center, and specimen surface respectively.
• 360 degree rotatable and height adjustable thermocouple scanning device.
• Inner furnace thermocouple device to calibrate the temperature of furnace.
• Testing results include Mass Loss(g) and Rate(%) ,Ignition Time(s) and Sustained Flaming(s) ,Initial & Maximum Furnace Temperature(oC) ,Final Furnace Temperature(oC) ,Maximum Specimen Center Temperature(oC) ,Final Specimen Center Temperature(oC) ,Furnace Temperature Rise(oC) ,Specimen Center & Surface Temperature Rise(oC).

Parameters:

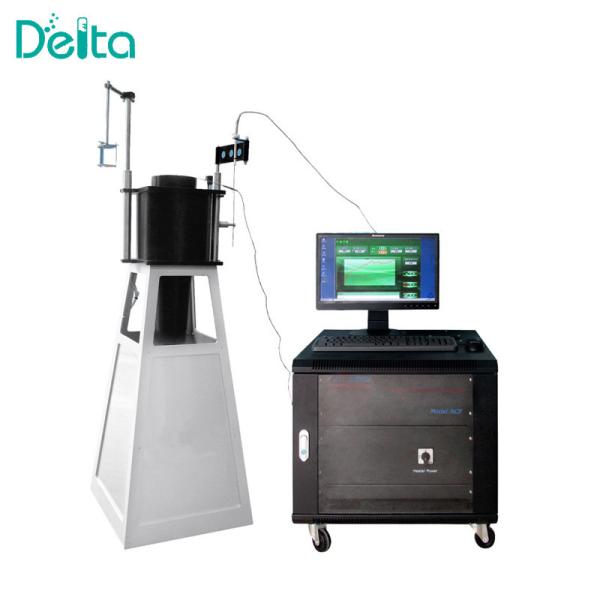

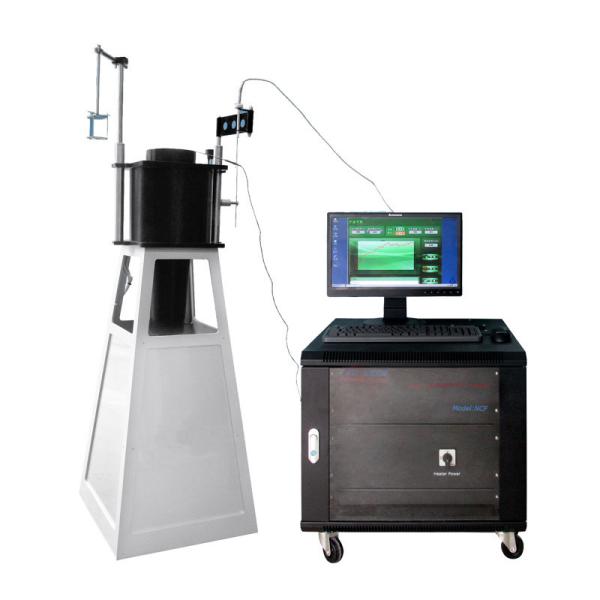

NCF Vertical Tube Furnace Real Picture:
