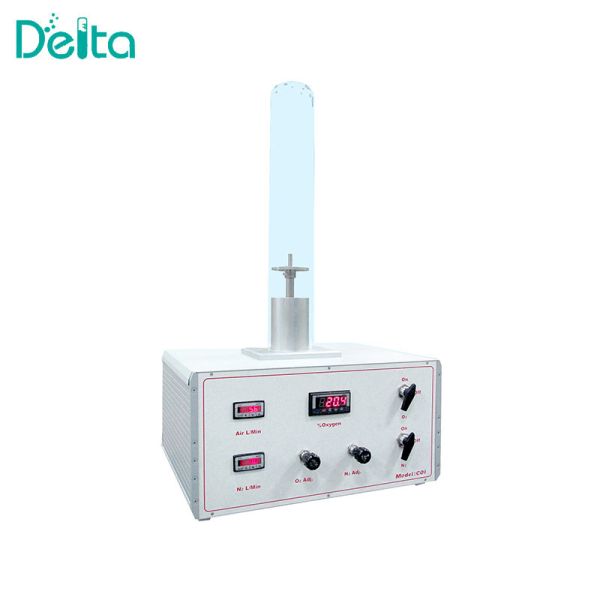

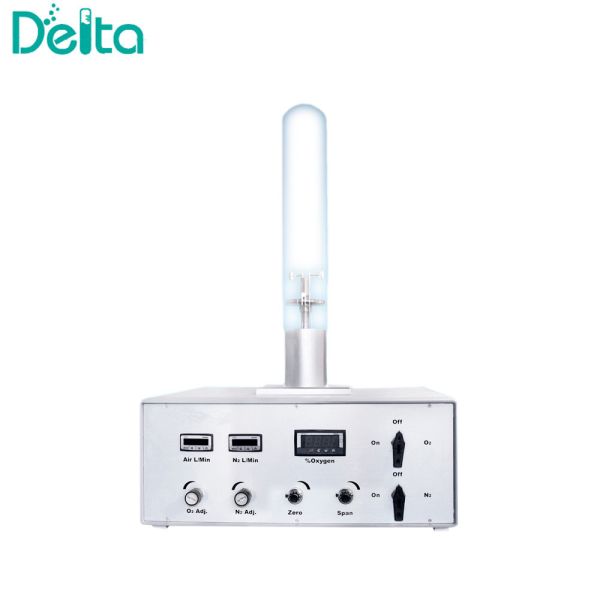

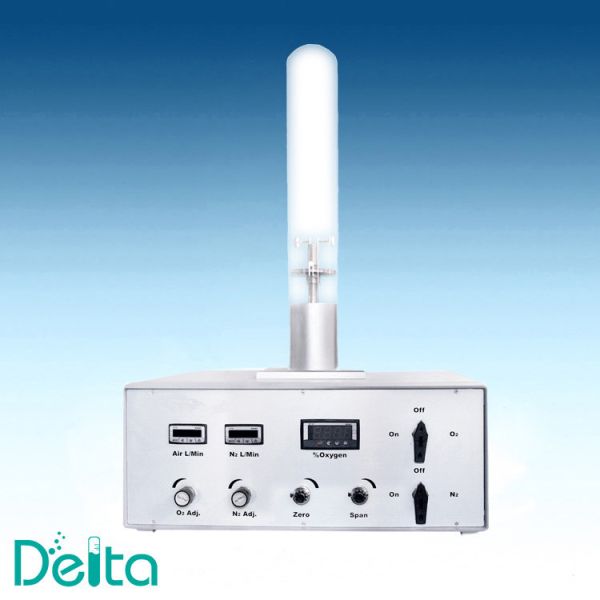

COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
Specifications
Brand Name :
Delta
Model Number :
COI
Certification :
ISO9001
Place of Origin :
Chongqing, China
MOQ :
1 set Limiting Oxygen Test Apparatus
Price :
USD1.0 / set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets Limiting Oxygen Test Apparatus / month
Delivery Time :
Within 30 days after the order is confirmed
Packaging Details :
Limiting Oxygen Test Apparatus is packed in one plywood case.
Reference Standards :
ASTM D 2863, ISO 4589-2, Nes 714
Test Method :
Paramagnetic Type
Function :
Measure Limited Oxygen Index of Material
Oxygen Sensor :
Paramagnetic Type
Application Field :
Building Material, Cable, Rail, Plastic, etc.
Features :
Durable Limited Oxygen Index Apparatus
Oxygen Range :
0 - 100%
Gas Supplies :
Oxygen, Nitrogen and Propane
Dimension :
37cm * 30cm * 48cm
Weight :
8kg
Power Supply :
220V, 50Hz
Language :
English
Operation mode :
Semi-auto
Condition :
Totally new
Description

COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus

COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus

Introduction:

COI Paramagnetic Type Limited Oxygen Index Apparatus is a convenient device to measure minimum oxygen concentration during combustion of specimen.

COI Limited Oxygen Index Apparatus adapts Paramagnetic Type oxygen sensor which has a precise, long life, less error rate and high reliability.

Reference Standards:

  1. ASTM: ASTM D2863: Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index).

  2. ISO: ISO 4589-2: Determining the minimum volume fraction of oxygen, in admixture with nitrogen, that will support combustion of small vertical test specimens under specified test conditions. The results are defined as oxygen index (OI) values.

  3. NES: NES 714.

Parameters:

No.

Item Name

COI Paramagnetic Type Durable Limited Oxygen Index Apparatus

1

Size

420 mm (W) x 350 mm (D) x 560 mm (H)

2

Weight

9kg

3

Power Supply

115 Volts AC 60Hz / 230 Volts AC 50Hz

4

Gas Supplies

Oxygen, Nitrogen and Propane

5

Oxygen Sensor

Range:0 to 100% Oxygen

Features:

  1. Paramagnetic Oxygen Cell for assessing accurate oxygen (< 0.1%) levels.
  2. Digital display of nitrogen gas flow, total flow ofoxygen and nitrogen.
  3. Digital display of oxygen percentage in atmosphere during test (no calculations needed).
  4. High temperature resistant quartz glass tube, can withstand a higher test temperature.
  5. Gas ignition device, easily adjust the length of the flame.
  6. Sample holders for both rigid and flexible samples supplied.
  7. Shortened gas path for rapid response.
  8. Paramagnetic Oxygen Sensor: Range:0 to 100%
  9. Oxygen. Repeatability (typical): ±0.1% Oxygen.

Limited Oxygen Index Tester Series:

COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus

  1. OI Electro-chemistry Limited Oxygen Index Tester
  2. LOI Electro-chemistry Limited Oxygen Index Tester
  3. COI Paramagnetic Limited Oxygen Index Analyzer
  4. LOI-A Automatic Limited Oxygen Index Analyzer
