HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
Specifications
Brand Name :
Delta
Model Number :
HFT
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Relay Tester
Price :
USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10-20 days
Packaging Details :
HFT ISO3795 Interior Materials Burning Behaviour Tester packed in veneer case.
Item Name :
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
Description :
ISO3795 Interior Material Burning Behaviour Tester
Reference standards :
Federal Motor Vehicle Interior Flammability Tester Fmvss 302,FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132
Application :
Hft Federal Motor Vehicle Interior Flammability Tester Fmvss 302,Measuring Burning Behaviour of Automotive Interior Materials by ISO3795
Application field :
Automotive Interior
Gas supply :
Propane
Features :
ISO3795 Standard Burning Behaviour Tester
Dimension :
430 mm (W) x 310 mm (D) x 360 mm (H)
Weight :
12kg
Power supply :
220V, 50Hz
Warranty :
1 year
Description

HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber

Introduction:

EC Directive 95/28/EC relates to the burning behavior of materials used in the interior construction of certain categories of motor vehicles, and is intended to ensure that they meet fire safety standards.

95/28/EC fire test to interior material of motor vehicle to determine the Characteristic of Burning: Horizontal Burning Behavior, Vertical Burning Behavior and Burning Dropping.

Hft Vehicle Interior Flammability Tester can be used for determining the horizontal burning rate of motor vehicle materials.

Features:

  • HFT ISO3795 Interior Materials Burning Behaviour Tester is suitable to determination for flammability, after burning, flame resistance and burning speed in car organic materials.
  • Comply with ISO 3795, ASTM D5132, FMVSS 302 etc.
  • Comprised of draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
  • Automated control of timing and gas supply.

Specifications:

No. Item Name

Hft ISO3795 Automotive Interior Materials Flammability Testing Chamber
1 Application field Automotive Interior
2 Reference standards FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132
2 Dimension 430 mm (W) x 310 mm (D) x 360 mm (H)
3 Weight 12kg
4 Power supply 230 volts Nominal 10 Amps
5 Ambient temperature Operating 25±5℃
6 Gas supply Propane

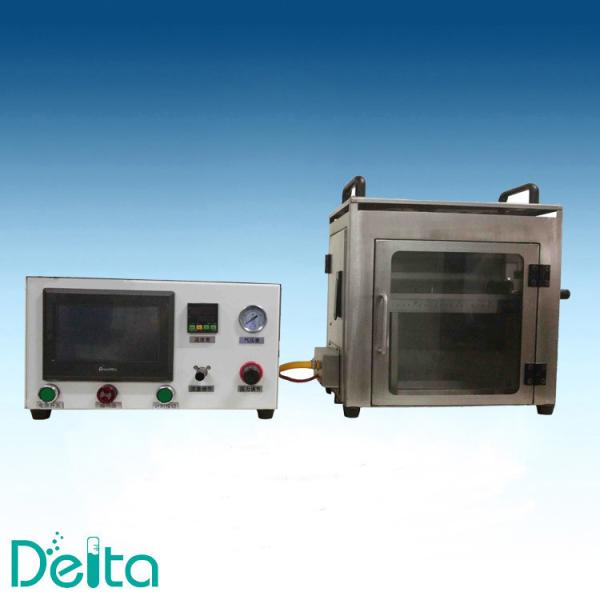

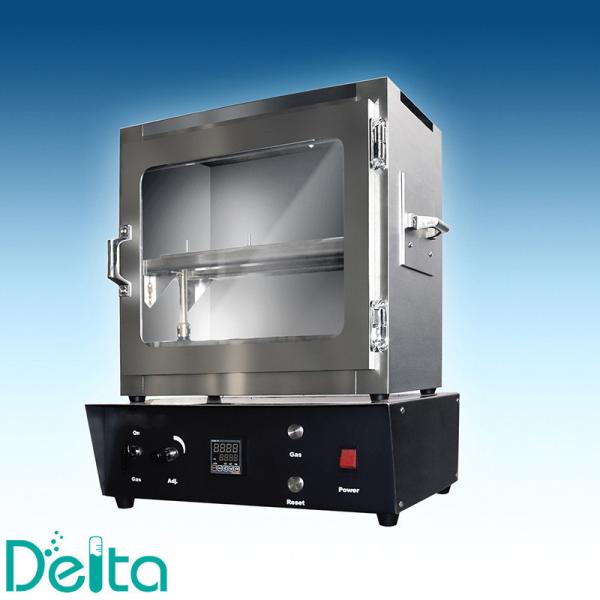

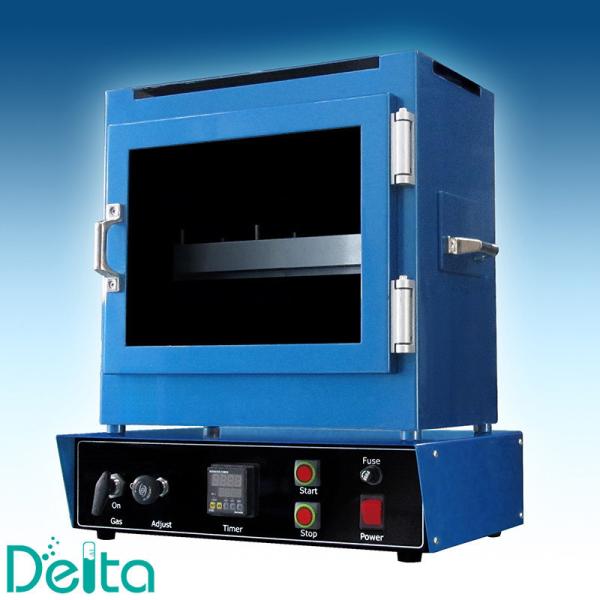

Hft ISO3795 Automotive Interior Materials Flammability Testing ChamberReal pictures:

HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber

HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
