Specifications
Brand Name :
Delta
Model Number :
CPT-III
Certification :
ISO9001
Place of Origin :
Chongqing, China
MOQ :
1 set CT PT Analyzer
Price :
USD1.0 / set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets CT PT Analyzer / month
Delivery Time :
Within 7 days after the order is confirmed.
Packaging Details :

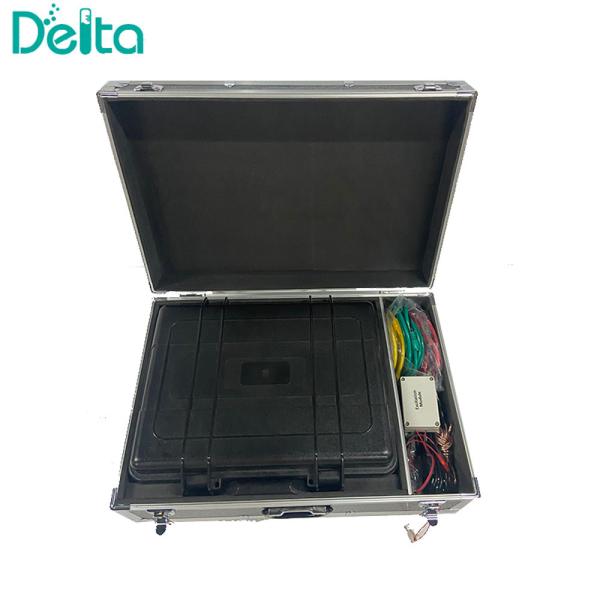

CT PT Analyzer is packed in plywood case.
Test Standards :
IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5
Application :
Measure All Kinds of Transformer, CT
Test Parameters :
Excitation Current Turns Ratio Polarity, etc.
Description :
CT PT Volt-Ampere Characteristic Analyzer
Features :
Portable CT PT Volt-Ampere Characteristic Analyzer
Voltage Output :
0.1-180V AC
Current Output :
0.001~5A RMS
Power Output :
500va
Max. Knee Voltage Measurement :
45kv
Data Storage :
>1000 Groups
Operation :
Touch Screen
Size :
485mm * 356mm * 183mm
Customized Support :
OEM
Delivery Lead Time :
7 Days
Trade Term :
EXW, Fob, DDU, CNF, CIF, etc.
Description

CPT-III Large Screen Automatic CT PT Analysis Instrument CT PT Analyzer

CPT-III Large Screen Automatic CT PT Analysis Instrument CT PT Analyzer

Introduction:

  • CPT-III CT Analyzer is used to measure all kinds of current transformer and voltage transformer.
  • It can calculate the ratio errors and phase angle errors of current transformer and voltage transformer at rated burden and working burden in one test.
  • CPT-III ct pt tester can automatically evaluate the test results according to the selected standard to determine whether the transformer is qualified.

Parameters:

  1. Test standards: IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
  2. Power supply: AC220V±10%, 50/60Hz±10%
  3. Voltage output: 0.1~180V (AC)
  4. Current output: 0.001~5A(RMS)
  5. Power output: 500VA
  6. Maximum knee voltage measurement: 45KV
  7. PT ratio error measurement: typical error <0.05%, maximum error<0.1%
  8. PT phase angle measurement: maximum error < 3min
  9. Memory capacity: >1000 groups test results
  10. Working condition: temperature: -10ºC~50ºC, humidty: ≤90%
  11. Size: 485mm * 356mm * 183mm, weight: <15kg
Test Parameters Range Error Resolution
Current 0~10A (automatically change range in 0.1/0.4/2/10A) <±0.1%+0.01%FS /
Voltage 0~200V (automatically change
range in 1V/10V/70V/200V)		 <±0.1%+0.01%FS /
Turns Ratio 1~5000 <0.05% /
5000~35000 <0.1% /
Phase / ±2min Resolution: 0.01min
Winding Resistance 0~8kΩ (automatically change range in 2ohm/20ohm/80ohm/800ohm/8kohm) <0.2%RDG+0.02%FS Max. resolution: 0.1mΩ
Temperature -50~100 Celsius degree <3 Celsius degree /
CT Secondary Burden 0~160ohm
(automatically change range in 2ohm/20ohm/80ohm/160ohm)		 <0.2%RDG+0.02%FS Max. resolution: 0.001ohm
PT Secondary Burden 0~80kohm (automatically change
range in 800ohm/8kohm/80kohm)		 <0.2%RDG+0.02%FS Max. resolution: 0.1ohm
PT Ratio 1~10000 <0.1% /
10000~35000 <0.2% /

Functions of test software:

  1. Make evaluation for test results according to selected standards.
  2. Make word report for test result.
  3. Make word reports one time for multi-group test records on the PC.
  4. Calculate the ratio errors and phase angle errors at rated burden and working burden in one time test.
  5. Compare excitation curves with saved excitation curves in the same window.
