Specifications
Brand Name :
Aier
Model Number :
WA, WG, WY, WZ, WL
Place of Origin :
Hebei, China
MOQ :
1
Price :
USD 100-5000
Payment Terms :
T/T, L/C
Supply Ability :
200 PER MONTH
Delivery Time :
20-40 DAYS
Packaging Details :
iron frame, wooden case
Material :
A05, A07, A33, A49, R08, R26, R33,
OEM :
Manufacture accroding to drawing
Application :
Interchangable to minng slurry pump, slurry pump, sand dreding pump parts
Process :
High chrome Casting
Interchangable :
interchangable to most standard slurry pumps
ODM :
Acceptable
Feature :
wear resistant, anti-abrasive
Description

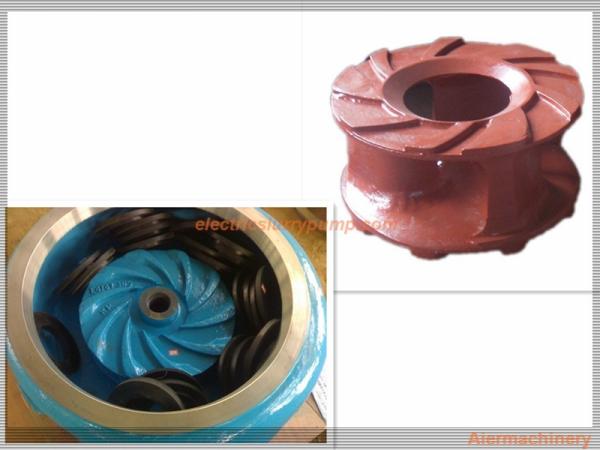

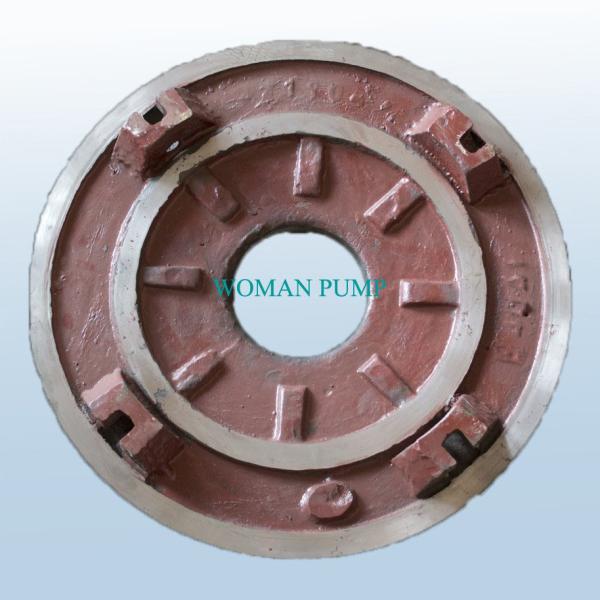

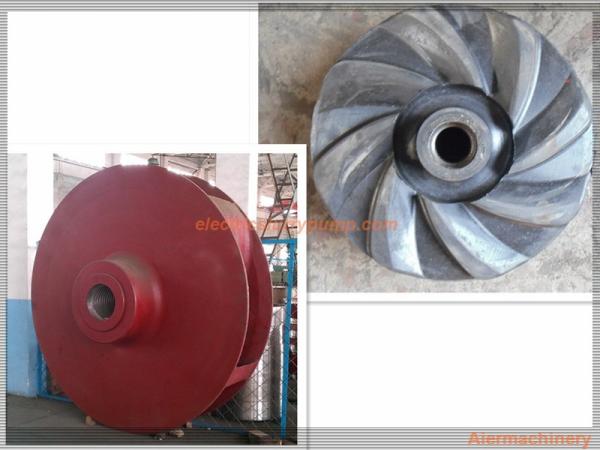

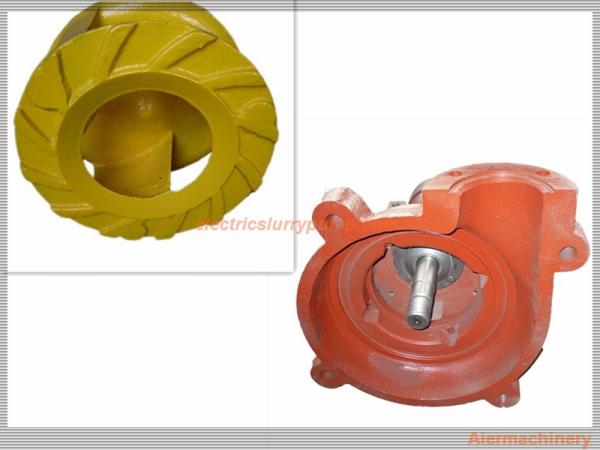

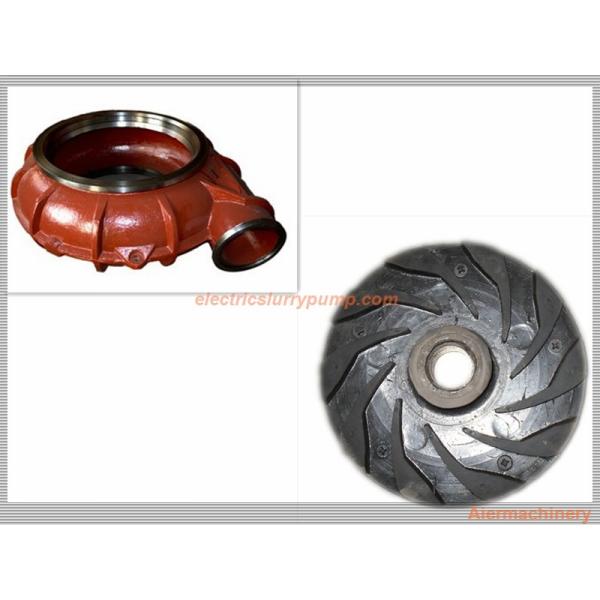

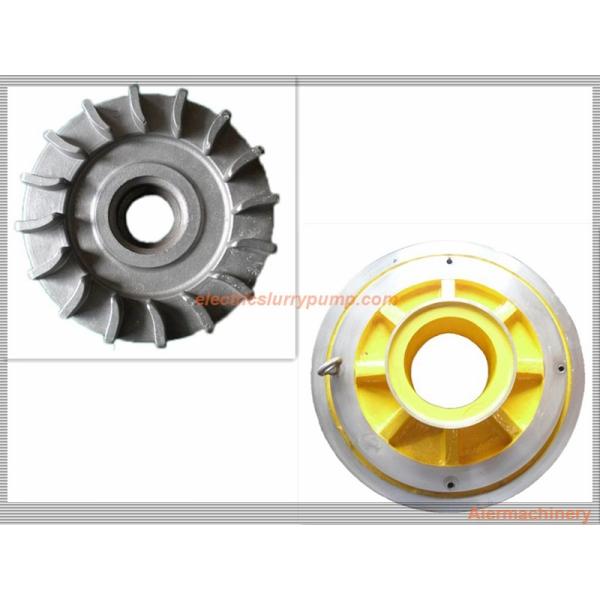

Centrifugal Wear Resistant Slurry Pump Parts Casing, liners, frame plates, impellers, expellers

Anti-acid wear resistant Centrifugal Slurry Pump Parts

Pump Description

Specification:

1. Outlet: 25mm - 750mm

2. Solid diameter: 1mm - 400mm

3. Motor power: 2.2kw - 2500kw

4. Head: 1m - 100m

5. Capacity: 5 -15000 m3/h

6. Density: 10% - 80%

7. Material: M/MR/MMR

8. Duty: Heavy

9. Wet Parts Material: High-chrome alloy; highly wear-resistant rubber

10. Application: Mining and mineral processing in non-ferrous and ferrous mines

Features:

1. Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.

2. Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.

3. Casing: Casing halves of cast or ductile iron provides high operating pressure capabilities.

4. Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

5. Throat bush: Wear is reduced and maintenance simplified by the use of tapered.

Slurry Pump Part Material

Part Name Material Specification HRC Application OEM Code
Liners & Impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron 　 It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. A33
Rubber 　 　 　 R08
　 　 　 R26
　 　 　 R33
　 　 　
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron 　 　 G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron 　 　 G01
Frame/Cover plate, bearing house & base Metal Grey iron 　 　 G01
Ductile iron 　 　 D21
Shaft Metal Carbon steel 　 　 E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13 　 　 C21
304 SS 　 　 C22
316 SS 　 　 C23
Joint rings & seals Rubber Butyl 　 　 S21
EPDM rubber 　 　 S01
Nitrile 　 　 S10
Hypalon 　 　 S31
Neoprene 　 　 S44/S42
Viton 　 　 S50

Professional Slurry Pump Parts Pump Bearing Assembly Long Bearing LifeProfessional Slurry Pump Parts Pump Bearing Assembly Long Bearing Life
