Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
Specifications
Brand Name :
Aier
Model Number :
WA
Place of Origin :
Hebei China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
200 per month
Delivery Time :
20-50 days
Packaging Details :
iron frame, wooden case
Material :
High chrome alloy
Application :
metallgury, Mining , Marine, Power Plant
structure :
One stage
Power :
elctric
Fuel :
motor
drive type :
V-belt,Elastic coupling, Gear red
Description

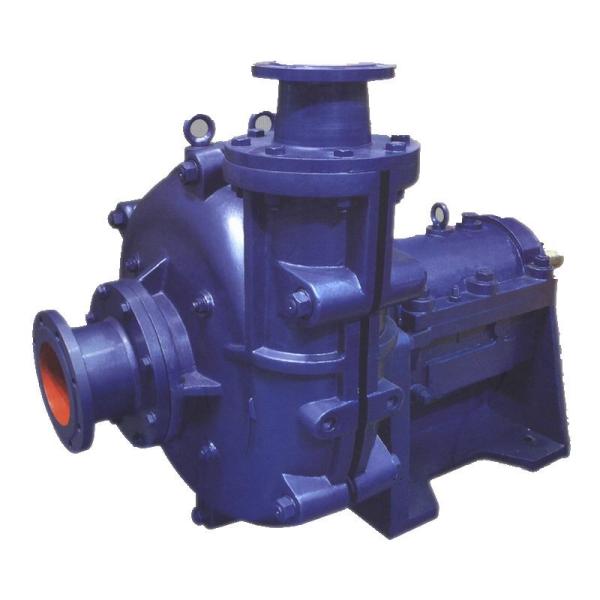

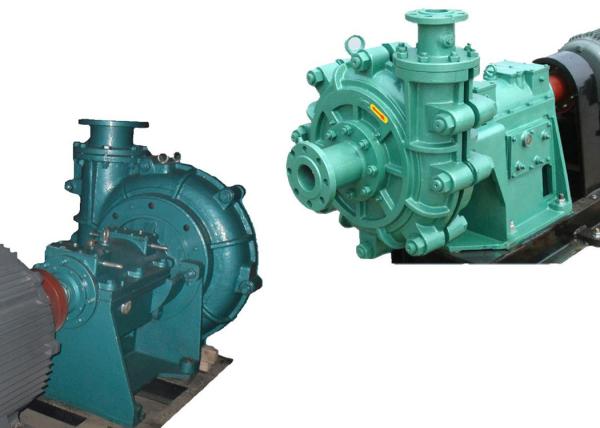

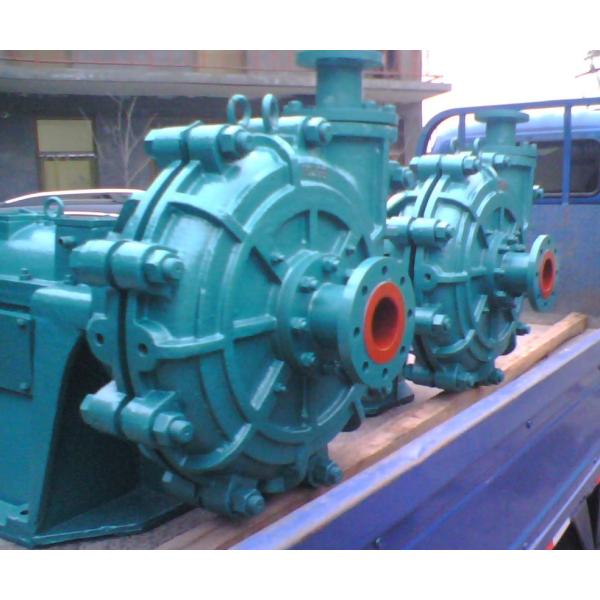

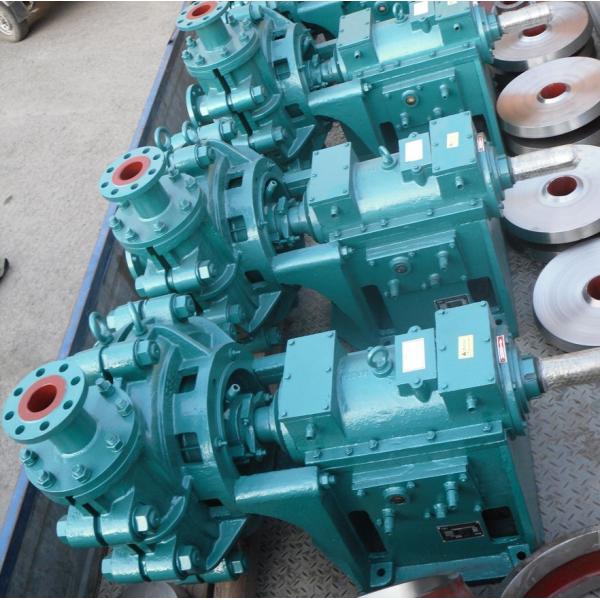

Gold Mining Horizontal Electric slurry pump with heavy duty interchangable wet parts of Cr27, Cr26, A05, A49

Introduction

High Head l mining electric slurry pump is horizontal,cantilevered,centrifugal,single stage slurry pump, with the advantages of high efficiency, large capacity, non-clogging, good performance of NPSH and anti-wearing and anticorrosion materials, widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments, especially for removing and sludge in electric power station.

Typical Application

High Head l mining electric slurry pump, double casing structure, high efficiency, wear resistant, stable performance, easy assembly, lining and impeller can be made of wear metal, and the discharge outlet can be adjusted with rotation interval of 45 degree, the impeller can be cut for site condition, the pumps can be operated in series and driven with belt..

Mining

Metallurgy

Chemical Process

Heavy Minerals

Paper and Pulp

Mill Discharge

Sugar Beet

Slag Granulation

Bottom Boiler and Fly

Cyclone Feed

Power Plants

other industry

Material

Parts Material Specification

Volute

Liner, Impeller,Throatbush, FPL

insert

 Hard Metal

A05:23~30% A07:14~18% A12:30% A49:27~29%A33:33~37%

Chrome White Iron
Rubber

R26 R08 R55 R38 R33 Natural Rubber; S01 EPDM Rubber;

S21;Butyl;S31;Hypalon; S44; Neoprene
Expeller&Expeller Ring Metal A05 23~30% High Chrome Iron G01: Grey Iron
Rubber R26 R08 R55 R38 R33 Natural Rubber
Stuffing Box Metal A05 23~30% High Chrome Iron G01: Grey Iron

Frame Plate,Cover Plate,Base

Bearing housing

 Metal G01 Grey Iron D21 Ductile Iron
Shaft Carbon Steel Type 1045(ASTM)

Shaft Sleeve,Lantern

Rings,Restrictor ,Neck

Ring,Gland Bolts

 Stainless Steel 3Cr13,304SS,316SS
Joint Ring&Seals Rubber

R26 R08 R55 R38 R33 Natural Rubber; S01 EPDM Rubber;

S21;Butyl;S31;Hypalon; S44; Neoprene

Gold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet PartsGold Mining Electric Slurry Pump With Heavy Duty Interchangable Wet Parts
