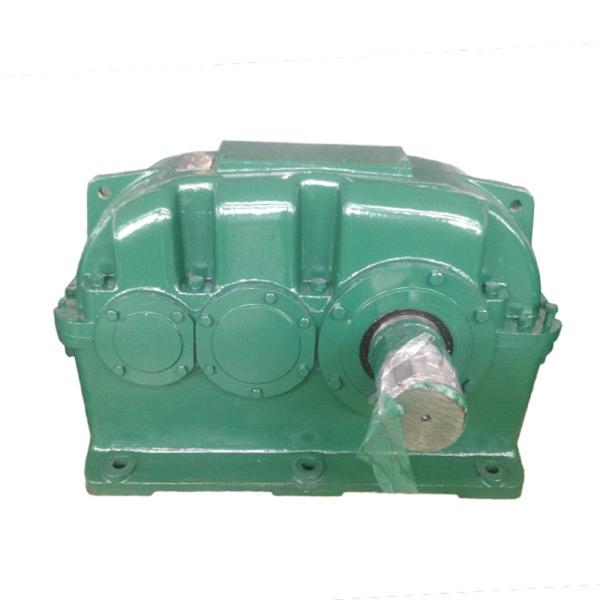

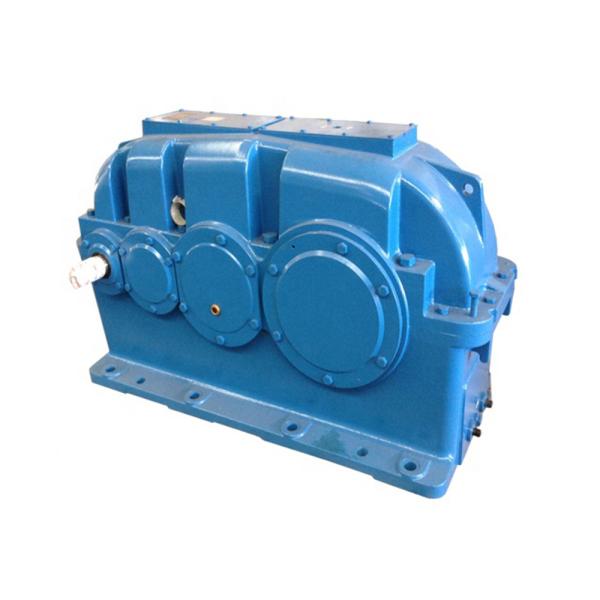

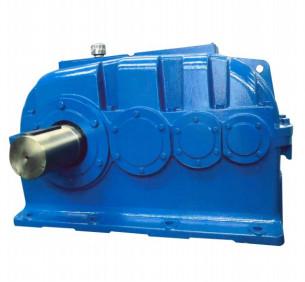

Hardened Cylindrical Reducer Gearbox For Paper Shredder
Hardened Cylindrical Reducer Gearbox For Paper Shredder
Hardened Cylindrical Reducer Gearbox For Paper Shredder
Hardened Cylindrical Reducer Gearbox For Paper Shredder
Hardened Cylindrical Reducer Gearbox For Paper Shredder
Hardened Cylindrical Reducer Gearbox For Paper Shredder
Specifications
Brand Name :
DONGTAI
Model Number :
DTZ
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T, D/A, L/C
Supply Ability :
1000 sets per month
Delivery Time :
15-25days
Packaging Details :
Wooden case
Product name :
Z series Cylindrical Hardened reducer gearbox for paper shredder
Application industry :
Paper shredder, Building Material Shops, Manufacturing Plant, Machinery Repa
Customized support :
OEM ODM
Gearing Arrangement :
Bevel / Miter
Output Torque :
450-130000N.m
Input Speed :
4p,6p,8p
Output Speed :
134-1200r/min
Gear material :
High-strength low-carbon alloy steel
Material of housing :
Aluminum Alloy, Cast Iron
Input Form :
IEC flange, connected with motor, solid shaft
Description

Z series Cylindrical Hardened reducer gearbox for paper shredder

Product description

Hardened Cylindrical Reducer Gearbox For Paper Shredder

Hardened Cylindrical Reducer Gearbox For Paper Shredder

Product Name
Z series Cylindrical Hardened reducer gearbox for paper shredder
Material
Iron cast
Color
As your request
Standard
JB/T 2982-1994
Application
steel,cement mining chemical,textile,food,plastical,sewage work
Brade
Rock
Function
Reduce speed enlarge torque
Used
paper shredder,building industry machinery

Features

1- The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance
2- High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;
3- Smooth and stable in run, low noise;
4- Compact, light, long life, high bearing capacity;
5- Easy to disassemble, inspect and assemble.

Stage Model Ratio Nominal Power (KW) Nominal Torque(N.m) Shaft
Single-stage 80--560 1.25--5.6 350-4,793 357-154,550 Solid Shaft
Double-stage 112--710 6.3--20 6.8-6,229 1,162-426,541
Three-Stage 160--710 22.4--100 4-1,905 4,075-519,520
Four-Stage 180--800 100--500 1.5-1,100

Application industrial

1- Steel factory: Hot Dip Galvanizing Line 1, Continuos Galvanizing Line 1, Continuos Galvanizing Line 2, Color Coating Line , Pickling Line

2- Cement factory: Cement mill

3- Paper shredder

4- Mining: mine hoist

5- Feed mill: mixer

Working environment

1.Input rotate speed is ≤1500r/min.

2.Gear wheel driving peripheral speed is ≤20m/s.

3.Ambient temperature is -40~50°c. If it is <0°c, lubricant should be preheated to >0°c before startup. Running both forward and backward are available for this decelerator.

4.Applicable for the industries such as metallurgy, mine, chemical industry, construction materials, hoisting, transportation, textile, paper making, food, plastic, rubber, engineering machinery, and energy industry.
