Hongli SQ80C1 1233 Compact Electric Pipe Threading Machine for Steel Pipe 1/4"-3"

Description

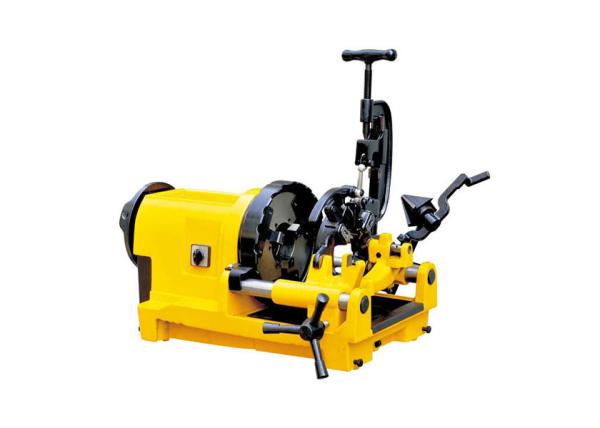

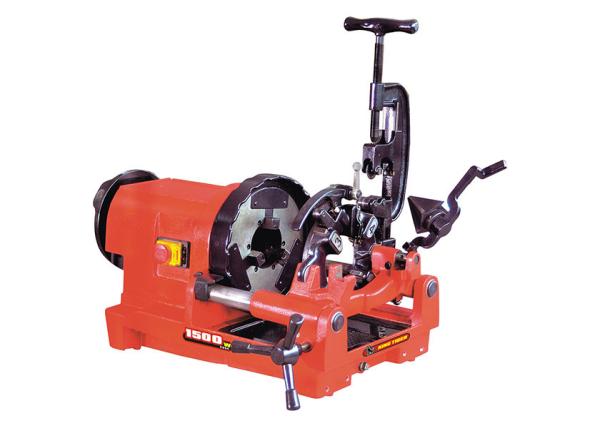

• The SQ80C1 threader is an electric motor-driven machine which centers and chucks pipe, conduit and rod (bolt stock) and rotates it while threading, cutting and reaming operations are performed.
• Threading dies are mounted in self-opening die heads.
• An automatic oiling system is provided to flood the work with thread cutting oil during threading operations.

Features

1. Heavy-duty proven performance.

2. Fast transport and set-up.

3. Self-Contained Oil System with adjustable flow control.

4. Approved by CE standard.

5. All sizes of the threads get processed only in one turn.

Specifications

• Motor: 1500 W universal, 50/60 Hz
• Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch are optional
• Spindle Speed: 32 RPM.
• Front Chuck: Hammer type with replaceable rocker action jaw inserts.
• Rear Centering Device: Cam action.
• Oiling System: Through die head, with integral oil reservoir.
• Pump: Self-priming constant flow, gerotor pump

Standard Equipment

• Model SQ80C1 Threading Machine.
• Self-open die head. (¼”-2” and 2½”-3”)
• ½”-¾” universal HSS dies set.
• 1”-2” universal HSS dies set.
• 2 1/2”-3” universal HSS dies set.
• Cutter: Capacity: 1/8”-3”(3 mm-80 mm) pipe
• Reamer: Positive-locking, 5-flute cone, right hand 1/8”-3”(3 mm-80 mm).

Installing Pipe In Threader

1. Check to insure the cutter, reamer and die head are swung to UP position.

2. Mark the pipe at the desired length if it is being cut to length.

3. Insert the pipe into the Threading Machine so that the end to be worked or the cutting mark is located about 12 inches to the front of the speed chuck jaws (Fig 1).

4. Insert workpieces less than 2 feet long from the front of the machine. Insert longer pipes through either end so that the longer section extends out beyond the rear of the Threading Machine.

5. Tighten the rear centering device around the pipe by using a counterclockwise rotation of the handwheel at the rear of the Threading Machine. This prevents movement of the pipe that can result in poor thread quality.

6. Secure the pipe by using repeated and forceful counterclockwise spins of the speed chuck handwheel at the front of the Threading Machine. This action “hammers” the jaws tightly around the pipe.

Ordering Information

Accessories

Standard Spares for SQ80C1 Compact Pipe Threading Machine
