Heavy Duty Switch Compact Electric Pipe Threading Machine 24 /10 RPM
Heavy Duty Switch Compact Electric Pipe Threading Machine 24 /10 RPM
Heavy Duty Switch Compact Electric Pipe Threading Machine 24 /10 RPM
Heavy Duty Switch Compact Electric Pipe Threading Machine 24 /10 RPM
Specifications
Brand Name :
Hongli
Model Number :
SQ100D1
Place of Origin :
Zhejiang , China
MOQ :
10 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per plywood case , packing size : 100*70*63 cm , packing weight : 160 kg
Product Name :
SQ100D1 Electric Pipe Threading Machine
For Pipes :
1/2"-4" / 12-100 mm
Threads Type :
BSPT , NPT
Motor :
750 W induction type
Spindle Speed :
26 / 11 RPM
Voltage & Frequency :
110 V - 60 Hz / 220 V - 50 Hz
Color :
Standard with yellow, red or blue for option as per your quantity need
Description

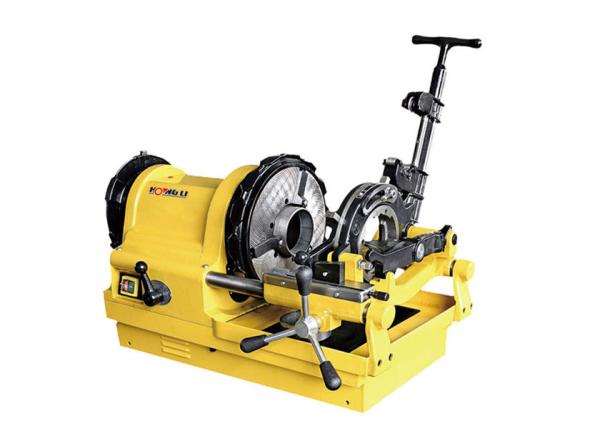

Hongli SQ100D1 Cost Effective Electric Pipe Threading Machine for Steel Pipe 1/2 Inch to 4 Inch

Specifications

Motor: 750 W induction, 50/60 Hz

Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional

Spindle Speed: 24 /10 RPM

Front Chuck: Hammer type with replaceable rocker action jaw inserts.

Rear Centering Device: Cam action.

Oiling System: Through die head, with integral oil reservoir.

Pump: Self-priming constant flow.

Ordering Information

Catalog No. Model No. Description
42012 SQ100D1 110 V, 60 Hz
42011 SQ100D1 220 V, 50 Hz

Packing

Model No. G.W. N.W. Packing
SQ100D1 160 kg 140 kg 100*70*63 cm

HS:8459700000

Standard Spares for SQ100D1 Compact Pipe Threading Machine

the accessories below are attached:

  1. Two sets of threading dies in a tool box (4 pieces each set);
  2. One inner hexagon spanner and one screwdriver;
  3. One set of die head ranging from 21/2 – 4 inches;
  4. One set of support legs.

Heavy Duty Switch Compact Electric Pipe Threading Machine 24 /10 RPM

Optional Spares for the Compact Pipe Threading Machine

Heavy Duty Switch Compact Electric Pipe Threading Machine 24 /10 RPM
