1500W User Friendly Electric Pipe Threading Machine 1/4-4 Hongli SQ100F-L
1500W User Friendly Electric Pipe Threading Machine 1/4-4 Hongli SQ100F-L
1500W User Friendly Electric Pipe Threading Machine 1/4-4 Hongli SQ100F-L
1500W User Friendly Electric Pipe Threading Machine 1/4-4 Hongli SQ100F-L
1500W User Friendly Electric Pipe Threading Machine 1/4-4 Hongli SQ100F-L
1500W User Friendly Electric Pipe Threading Machine 1/4-4 Hongli SQ100F-L
Specifications
Brand Name :
Hongli
Model Number :
SQ100F-L
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
2 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per plywood case , packing size : 92*70*66 cm , packing weight : 175 kg
Product Name :
SQ100F-L Electric Pipe Threading Machine
For Pipes :
1/4"-4" / 6-100 mm
Threads Type :
BSPT , NPT
Motor :
1500 W induction type
Spindle Speed :
36 / 20 /11 RPM
Voltage & Frequency :
110 V - 60 Hz / 220 V - 50 Hz
Color :
Standard with yellow, red or grey or blue for option as per your quantity need
Description

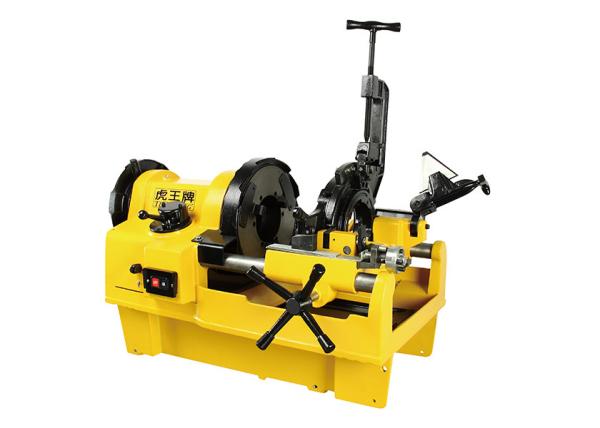

Hongli SQ100F-L User Friendly Electric Pipe Threading Machine for Steel Pipe 1/4"-4"

Features

1. An induction motor ensures sound levels well when using.

2. A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.

3. 1/2”-2” quick open die head; 2½”-4” receding die head allows cutting of tapered or straight NPT / NPSM or BSPT / BSPP threads.

4. Approved by CSA and CE standards.

Specifications

  • Motor: 1500 W induction, 50/60 Hz,single phase.
  • Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional
  • Spindle Speed: 36/20/11 RPM.
  • Front Chuck: Hammer type with replaceable rocker action jaw inserts.
  • Rear Centering Device: Cam action.
  • Oiling System: Through die head, with integral oil reservoir.

Standard Equipment

  • Model SQ100F-L threading machine.
  • Quick-open die head, 1/2”-2”
  • Receding self-open die head, 2 1/2”-4”
  • ½”-¾” universal HSS dies set.
  • 1”-2” universal HSS dies set.
  • 2 1/2”-4” universal HSS dies set.
  • Cutter: Capacity: 1/4”-4”(6 mm-100 mm) pipe
  • Reamer: Positive-locking, right-hand 1/4”-4”(6 mm-100 mm).

Ordering Information

Catalog No. Model No. Description
SQ100F-L 110 V, 50/60 Hz
SQ100F-L 220 V, 50/60 Hz

Accessories

Catalog No. Model No. Description
Die head, Quick-open, ½”-2”
Die head, Self-open, 2½”-4”
Reamer
Cutter
Foot Pedal Switch (optional)
Nipple Chuck (optional)

Packing

Model No. G.W. N.W. Packing
SQ100F-L 175 kg 150 kg 92*70*66 cm

HS:8459700000
